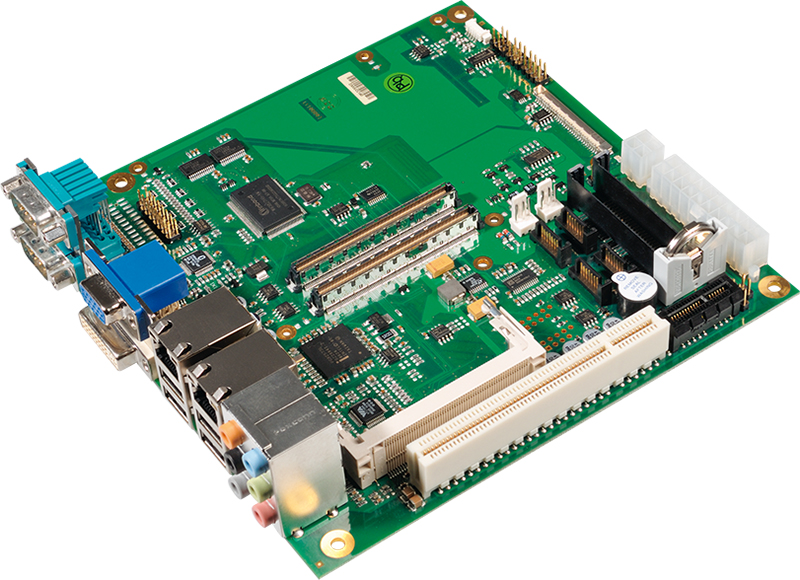

MSC CX-MB-IP1

The MSC CX-MB-IP1 is an ideal base board platform to integrate any COM Express compliant module in basic or compact format supporting Type 2 of the specification.
Our industrial platform MSC CX-MB-IP1 offers a large variety of interfaces commonly used in industrial applications such as dual Gigabit LAN, USB 2.0, serial, LVDS and VGA/DVI for display support and even USB NAND storage. 32bit PCI and PCI Express are supported with slots and riser cards. This platform can be used for rapid prototyping to assess the suitability of a specific CPU technology or alternatively for low volume production runs as an off-the-shelf solution.
Using the CX-MB-IP1 base-board in combination with a COM express module from our extensive portfolio enables you to quickly achieve a turn-key solution for your industrial platform.

Highlights

  • Mini-ITX format
  • One PCI slot, one PCI Express x1 slot via riser card
  • One MiniPCI slot, USB NAND storage optional
  • Four SATA onboard connectors
  • Two CompactFlash sockets
  • COM1 / 2, LPT
  • Fan control, HW monitor and GPIOs
  • HD audio codec with surround support
  • Up to eight USB interfaces
  • Additional onboard GbE controller (Intel 82573)
  • VGA, DVI and LVDS (Jili20) connectors
  • ATX power connector (20 + 4 pin)

Specifications

TechnologyCarrier
Form Factormini-ITX
Storage Interfaces4 x SATA connector 2 x CompactFlash (Master, Slave)
USB4 x USB on rear panel

1 x USB internal
Serial Interfaces2 x RS232C on 9pin Dsub
Bus Interfaces1 x PCI slot, 32bit V2.1 1 x miniPCI connector 1 x PCIe x1 connector
Display InterfacesVGA connector on rear panel DVI connector on rear panel LVDS on Jili30 with EEPROM for display data and backlight connector
Network Interface1 x GbE from Qseven module on rear panel 1 x GbE (82573) on rear panel
Audio InterfaceHD Audio codec (VT1708) on 6 audio jacks
MiscellaneousLPT on pinrow 4 x GPO, 4x GPI, TTL System conrol on Winbond W83627THF 2 x PWM Fan controll connectors
Feature HighlightsFits COM Express Basic and Compact modules
OS SupportBSP ( for onboard devices ) for Windows and Linux
Power RequirementStandard 20 pin ATX power and 4pin ATX 12V connector
EnvironmentAmbient Temperature 0° … +70°C (operating), -40° … 85°C (storage) Humidity 5 … 90% (operating, non-condensing), 5 … 95% (storage, non-condensing)
Dimensions170 x 170
CertificatesUL / CE
CarrierFormfactor

Order Info

Order No.DescriptionReferenceStatus
32367COM Express Industrial Platform with PCI and PCI Express x1 Dual LAN,VGA/DVI, Quad USB, COM1/2, HD-Audio MiniPCI, SATA, CF onboard,170x170mm (mini-ITX)MSC CX-MB-IP1 PCBFTXPV

Accessories

Tool Options

Order No.DescriptionReference
1051201Riser card for one PCI and one PCI Express x1 slotMSC CX-MB-IP-RC1
