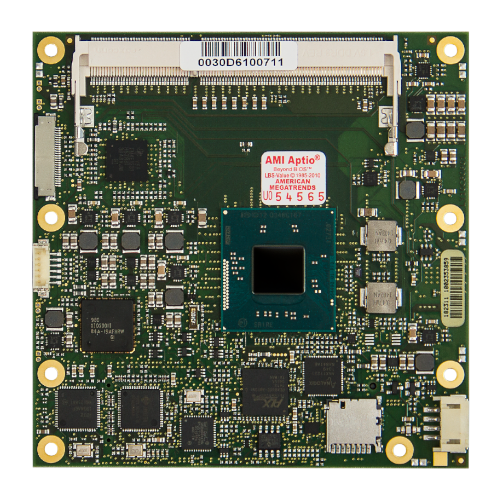

The MSC CXC-BT module is based on Intel‘s multi-core system-on-chip (SOC) Atom generation that integrates next generation Intel processor core, graphics, memory, and I/O interfaces into one solution. Based on 22nm processor technology this multi-core Atom processor provides outstanding computing and graphics power and is more power efficient compared to its predecessors. The MSC CXC-BT brings dual independent display support, DirectX 11.1 and fast DDR3L memory on a compact, power saving and cost-efficient module. Different SOCs with single-, dual- and quad-core processors are supported by this design. Besides an extensive set of interfaces and features, the MSC CXC-BT optionally offers hardware based security compliant to the requirements of TCG (Trusted Computing Group). The Type 2 pin-out ensures compatibility to existing system and carrier board designs.

Highlights

  • Intel Atom E3845 quad-core 1.91GHz, 10W
  • Intel Atom E3827 dual-core 1.75GHz, 8W
  • Intel Atom E3826 dual -core 1.46GHz, 7W
  • Intel Atom E3825 dual -core 1.33GHz, 6W
  • Intel Atom E3815 single-core 1.46GHz, 5W
  • Intel Atom E3805 dual-core 1.33GHz, 3W (no graphics)
  • Intel Celeron N2807 dual-core 1.58/2.16GHz, 4.3W
  • Intel Celeron N2930 quad-core 1.83/2.16GHz, 7.5W
  • Intel Celeron J1900 quad-core 2.00/2.42GHz, 10W
  • Integrated Intel Gen. 7 HD graphics
  • Up to 8GB DDR3L SDRAM, dual-channel
  • One (two) SATA 3Gb/s mass storage interface
  • One (zero) PATA/IDE mass storage interface
  • MicroSD card socket
  • LVDS 24bit, dual-channel
  • VGA interface
  • Two independent displays supported
  • DirectX 11.1, OpenGL 3.2, OpenCL 1.1
  • Eight USB 2.0 interfaces
  • Trusted Platform Module (option)
  • Extended temperature variants

Specifications

Technologyx86
Form FactorCOM Express Compact
CPUIntel Atom E3845 quad-core 1.91GHz, 10W TDP Intel Atom E3827 dual-core 1.75GHz, 8W TDP Intel Atom E3826 dual -core 1.46GHz, 7W TDP Intel Atom E3825 dual -core 1.33GHz, 6W TDP Intel Atom E3815 single-core 1.46GHz, 5W TDP Intel Atom E3805 dual-core 1.33GHz, 3W TDP (no graphics) Intel Celeron N2807 dual-core 1.58/2.16GHz, 4.3W TDP Intel Celeron N2930 quad-core 1.83/2.16GHz, 7.5W TDP Intel Celeron J1900 quad-core 2.00/2.42GHz, 10W TDP
ChipsetSOC
RAMup to 8GB DDR3L (1333), 2x 204 pin SO-DIMM
FlashMicroSD card socket
Storage Interfaces1x SATA 3Gb/s 1x PATA or 2x SATA, no PATA (option, on request)
USB4x USB 2.0,

4x USB 2.0 (optional hub)
Bus Interfaces2x PCI Express x1 Gen 2, Two additional x1 channels PCI Express Gen 2 (option, not for new design) PCI Bus 32 Bit, 33MHz standard interface (PCI 2.3) LPC bus (Low Pin Count bus)
Display ControllerIntegrated Intel HD graphics Gen. 7
Display InterfacesAnalog (VGA) up to 2560 x 1600 @ 60Hz, LVDS 24 bit, dual channel, 1920 x 1200 @ 60Hz
Network Interface10/100/1000Base-TX (Intel i210)
Audio InterfaceHigh Definition Audio
Security DeviceTPM 1.2 (option)
MiscellaneousWatchdog Timer: Initiates system reset, programmable Fan Supply: 4-pin header for CPU fan, PWM speed controlled and PWM speed control for system fan supported RTC battery: external System Monitoring: voltage, temperature, CPU fan, system fan
Feature HighlightsType 2 pin-out
FirmwareAMI Aptio UEFI
OS SupportWindows 7, 8, 8.1 (embedded) BSP for Linux on request EAPI (HW Programming Interface)
Power RequirementWide range input +5 … +17V, 5V Stby optional, 8 W (typ.) up to 14 W (typ.)
EnvironmentAmbient Temperature 0° … 60°C (operating, C-Temp), -40° … +85°C (operating, I-Temp), -25° … 85°C (storage) Humidity: 5 … 95% (operating, non-condensing), 5 … 95% (storage, non-condensing)
Dimensions95mm x 95mm
CertificatesUL / CE

Order Info

Order No.DescriptionReferenceStatus
46815COM Express Type 2 Compact module (95mm x 95mm)CPU: Intel E3815 single-core 1.46GHz, 512 kB L2, 5W TDPGraphics: integrated Intel HD Gen 7 LVDS dual-channel and VGAEthernet: Intel i210 GbitHD audio1x SATA, 1x PATA, 8x USB2, 2x PCIe x1 no TPM1x socket for DDR3L SO-DIMMMicroSD card socket.MSC CXC-BT-001 PCBFTX OR
46817COM Express Type 2 Compact module (95mm x 95mm)CPU: Intel E3825 dual-core 1.33GHz, 1MB L2, 6W TDPGraphics: integrated Intel HD Gen 7 LVDS dual-channel and VGAEthernet: Intel i210 Gbit HD audio1x SATA, 1x PATA, 8x USB2, 2x PCIe x1 no TPM1x socket for DDR3L SO-DIMMMicroSD card socket. MSC CXC-BT-002 PCBFTX OR
46819COM Express Type 2 Compact module (95mm x 95mm)CPU: Intel E3826 dual-core 1.46GHz, 1MB L2, 7W TDPGraphics: integrated Intel HD Gen 7 LVDS dual-channel and VGAEthernet: Intel i210 Gbit HD audio1x SATA, 1x PATA, 8x USB2, 2x PCIe x1 no TPM2x socket for DDR3L SO-DIMMMicroSD card socket.MSC CXC-BT-003 PCBFTX OR
46821COM Express Type 2 Compact module (95mm x 95mm)CPU: Intel E3827 dual-core 1.75GHz, 1MB L2, 8W TDPGraphics: integrated Intel HD Gen 7 LVDS dual-channel and VGAEthernet: Intel i210 GbitHD audio1x SATA, 1x PATA, 8x USB2, 2x PCIe x1 no TPM2x socket for DDR3L SO-DIMMMicroSD card socket.MSC CXC-BT-004 PCBFTX OR
46823COM Express Type 2 Compact module (95mm x 95mm)CPU: Intel E3845 quad-core 1.91GHz, 2MB L2, 10W TDPGraphics: integrated Intel HD Gen 7 LVDS dual-channel and VGAEthernet: Intel i210 GbitHD audio1x SATA, 1x PATA, 8x USB2, 2x PCIe x1 no TPM2x socket for DDR3L SO-DIMMMicroSD card socket.MSC CXC-BT-005 PCBFTXOR
46825COM Express Type 2 Compact module (95mm x 95mm)CPU: Intel Celeron N2930 quad-core 1.83/2.16GHz, 2MB L2, 7.5W TDPGraphics: integrated Intel HD Gen 7 LVDS dual-channel and VGAEthernet: Intel i210 Gbit HD audio1x SATA, 1x PATA, 8x USB2, 2x PCIe x1 no TPM2x socket for DDR3L SO-DIMM MSC CXC-BT-006 PCBFTX OR
46827COM Express Type 2 Compact module (95mm x 95mm)CPU: Intel Celeron J1900 quad-core 2.00/2.42GHz, 2MB L2, 10W TDPGraphics: integrated Intel HD Gen 7 LVDS dual-channel and VGAEthernet: Intel i210 Gbit HD audio1x SATA, 1x PATA, 8x USB2, 2x PCIe x1 no TPM2x socket for DDR3L SO-DIMM MSC CXC-BT-007 PCBFTX OR

Accessories

Carrier Options

Order No.DescriptionReference
32273COM Express Type 2 Evaluation board with PCI and PCI Express interfacesMSC CX-MB-EVA2 PCBFTX
32367COM Express Industrial Platform with PCI and PCI Express x1MSC CX-MB-IP1 PCBFTX

Cooling Options

Order No.DescriptionReference
1120173Active Heatsink for C6C-BW, C6C-BT and CXC-BT, consisting of a single-piece aluminum profile with fins, standoffs without thread (2.7mm inner diameter), screws and thermopads for the thermal contact to SOC. PWM fan 80x80x15mm.MSC C6C-BT-01 HSF-001
1119053Passive Heatsink for C6C-BW, C6C-BT and CXC-BT, consisting of a single-piece aluminum profile with fins, standoffs without thread (2.7mm inner diameter), screws and thermopad for the thermal contact to SOC.MSC C6C-BT-01 HSI-001
1122654Heatspreader for C6C-BW, C6C-BT and CXC-BT. Single-piece aluminum profile, standoffs without thread (2.7mm inner diameter), screws and thermopad for the thermal contact to SOC.MSC C6C-BT-01 HSP-001
1122653Heatspreader for C6C-BW, C6C-BT and CXC-BT. Single-piece aluminum profile, threaded standoffs (M2.5), screws and thermopad for the thermal contact to SOC.MSC C6C-BT-02 HSP-001

Memory Options

Order No.DescriptionReference
734612GB SoDimm, DDR3L-1866, 256Mx8 basedMOD SODIMM DDR3 2GBPC3-14900 CL13 1B
720044GB SoDimm, DDR3L-1866, 512Mx8 basedMOD SODIMM DDR3 4GBPC3-14900 CL13 1B
799638GB SoDimm, DDR3L-1866, 512Mx8 basedMOD SODIMM DDR3 8GBPC3-14900 CL13 2B
