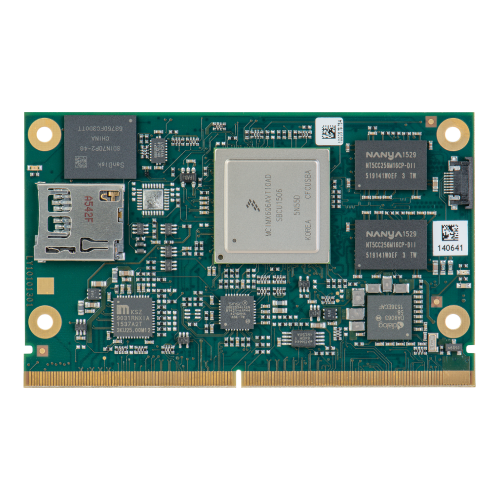

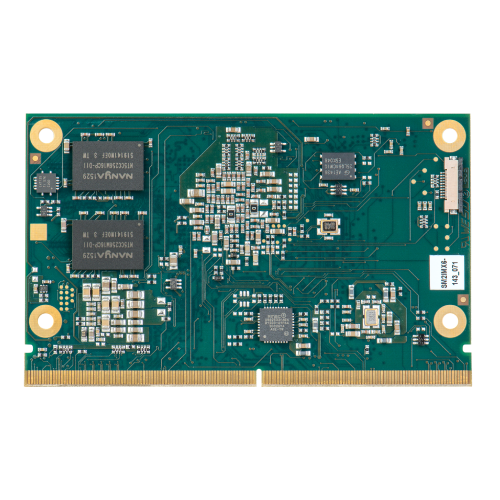

MSC SM2S-IMX6
The design of the MSC SM2S-IMX6 module is based on NXP’s i.MX 6 processors offering quad-, dual- and single-core ARM® Cortex™-A9 compute performance at very low power consumption and excellent graphics performance combined with a high degree of functional integration.
It incorporates the i.MX 6 (Solo, DualLite, Dual or Quad) or the i.MX 6DualPlus or 6QuadPlus processor with up to 1.2 GHz, up to 4GB DDR3L SDRAM and up to 64GB eMMC Flash memory as well as an extensive set of interface controllers. The module is compliant with the new SMARC™ 2.0 standard, allowing easy integration with SMARC™ baseboards.
For evaluation and design-in of the SM2S-IMX6 module, MSC provides a development platform and a starter kit. Support for Linux and Windows Embedded Compact 7 and 2013 is available (Android on request).
Highlights
- MPEG-4 Video Encoding/Decoding 1080p
- HDMI graphics 1920 x 1080 x 30fps
- Dual-channel LVDS 1920 x 1080 x 30fps
- Up to 4GB DDR3L SDRAM
- Up to 64GB eMMC Flash
- Gigabit Ethernet Interface
- 1x PCI Express x1
- 1x SATA-II (3Gbps, quad-/dual-core only)
- 1x USB Device/Host + up to 5x USB 2.0
- 1x MMC/SD/SDIO interface
- 2x CAN Interface
- I2S Audio Interface
- MIPI CSI-2 Camera Interface
- Micro SD Card Socket
- SMARC™ 2.0 Compliant
Specifications
Technology | ARM |
Form Factor | SMARC™ Short Size |
CPU | NXP™ i.MX 6 ARM® Cortex™-A9: - i.MX 6QuadPlus, quad-core, 800MHz…1.2GHz - i.MX 6Quad, quad-core, 800MHz…1.2GHz - i.MX 6DualPlus, dual-core, 800MHz…1.2GHz - i.MX 6Dual, dual-core, 800MHz…1.2GHz - i.MX 6DualLite, dual-core, 800MHz…1.0GHz - i.MX 6Solo, single-core, 800MHz…1.0GHz |
Chipset | SOC |
RAM | Up to 4GB DDR3L SDRAM (DDR-1066), soldered, non ECC |
Flash | Up to 64GB eMMC Flash |
Storage Interfaces | Micro SD Card Socket 1x MMC/SD/SDIO 1x SATA-II (3Gbps, not supported by Solo/DualLite CPU) |
USB | 1x USB 2.0 Host/Client, 4x USB 2.0 Host or 1x USB 2.0 Host/Client, 5x USB 2.0 Host (optional) or 1x USB 2.0 Host/Client, 1x USB 2.0 Host (optional) |
Serial Interfaces | 4x UART (two with 2-wire hand shake) |
Bus Interfaces | 1x PCI Express x1 2x CAN 2.0B 5x I2C up to 400 Kbit/s 2x SPI (with two chip selects) 1x SMBus |
Display Controller | Video, 2D and 3D Graphics Units integrated in i.MX6 Processor OpenGL® ES 1.1/2.0/Halti, OpenVG™ 1.1, OpenCL™ 1.1 EP Multi-Format Hardware Video Encoder/Decoder |
Display Interfaces | Dual-channel LVDS interface, 18 or 24 bit (up to 1920x1080). Also usable as 2x single-channel LVDS interface (up to 1366x768) HDMI V1.4 up to WUXGA (1920x1080) incl. Full-HD @ 30fps MIPI CSI-2 Camera Interface |
Network Interface | 1x 10/100/1000BASE-T Ethernet |
Audio Interface | I2S Audio |
Security Device | Infineon Trusted Platform Module (TPM) 1.2, optional |
Miscellaneous | Watchdog Timer for system reset (programmable, 1s … 600s) 12x GPIO, configurable as input or output 64kbit ID EEPROM on I2C bus |
Feature Highlights | NO Feature Highlights |
OS Support | Linux Board Support Package Android Board Support Package (on request) |
Power Requirement | Power Supply +5V +/-5%, 5V Standby Power Consumption 4-6 W typ. (depending on CPU and optional features) |
Environment | Temperature Range: 0°C … +70°C operating commercial -40°C … +85°C operating extended -40°C … +85°C storage Humidity: 5 … 95% (operating, non condensing) 5 … 95% (storage, non-condensing) |
Dimensions | 82 x 50 mm |
Certificates | UL / CE |
Order Info
Order No. | Description | Reference | Status |
68410 | SMARC module based on NXP i.MX 6Solo Single-Core Cortex-A9 processor at 800MHz, 1GB DDR3 soldered, integrated Graphics, HDMI max. 1920x1080, dual-channel LVDS, Ethernet controller (10/100/1000Base-T), 8GB eMMC Flash, micro SD socket, no SATA, 1x PCIe, 4x USB2.0 Host, 1x USB2.0 Host/Client, I2S Audio, MIPI CSI-2 Camera input industrial temperature -40...+85°C | MSC SM2S-IMX6-112 PCBFTX | PV |
68432 | SMARC module based on NXP i.MX 6Dual Dual-Core Cortex-A9 processor at 800MHz, 2GB DDR3 soldered, integrated Graphics, HDMI max. 1920x1080, dual-channel LVDS, Ethernet controller (10/100/1000Base-T), 8GB eMMC Flash, micro SD socket, 1x SATA, 1x PCIe, 4x USB2.0 Host, 1x USB2.0 Host/Client, I2S Audio, MIPI CSI-2 Camera input industrial temperature -40...+85°C | MSC SM2S-IMX6-123 PCBFTX | PV |
68434 | SMARC module based on NXP i.MX 6DualLite Dual-Core Cortex-A9 processor at 800MHz, 2GB DDR3 soldered, integrated Graphics, HDMI max. 1920x1080, dual-channel LVDS, Ethernet controller (10/100/1000Base-T), 8GB eMMC Flash, micro SD socket, no SATA, 1x PCIe, 4x USB2.0 Host, 1x USB2.0 Host/Client, I2S Audio, MIPI CSI-2 Camera input industrial temperature -40...+85°C | MSC SM2S-IMX6-133 PCBFTX | PV |
68436 | SMARC module based on NXP i.MX 6Quad Quad-Core Cortex-A9 processor at 800MHz, 2GB DDR3 soldered, integrated Graphics, HDMI max. 1920x1080, dual-channel LVDS, Ethernet controller (10/100/1000Base-T), 8GB eMMC Flash, micro SD socket, 1x SATA, 1x PCIe, 4x USB2.0 Host, 1x USB2.0 Host/Client, I2S Audio, MIPI CSI-2 Camera input industrial temperature -40...+85°C | MSC SM2S-IMX6-143 PCBFTX | PV |
68438 | SMARC module based on NXP i.MX 6DualPlus Dual-Core Cortex-A9 processor at 800MHz, 2GB DDR3 soldered, integrated Graphics, HDMI max. 1920x1080, dual-channel LVDS, Ethernet controller (10/100/1000Base-T), 8GB eMMC Flash, micro SD socket, 1x SATA, 1x PCIe, 4x USB2.0 Host, 1x USB2.0 Host/Client, I2S Audio, MIPI CSI-2 Camera input industrial temperature -40...+85°C | MSC SM2S-IMX6-163 PCBFTX | OR |
68440 | SMARC module based on NXP i.MX 6QuadPlus Quad-Core Cortex-A9 processor at 800MHz, 2GB DDR3 soldered, integrated Graphics, HDMI max. 1920x1080, dual-channel LVDS, Ethernet controller (10/100/1000Base-T), 8GB eMMC Flash, micro SD socket, 1x SATA, 1x PCIe, 4x USB2.0 Host, 1x USB2.0 Host/Client, I2S Audio, MIPI CSI-2 Camera input industrial temperature -40...+85°C | MSC SM2S-IMX6-183 PCBFTX | OR |
77401 | SMARC module based on NXP i.MX 6Solo Single-Core Cortex-A9 processor at 1GHz, 512MB DDR3 soldered, integrated Graphics, HDMI max. 1920x1080, dual-channel LVDS, Ethernet controller (10/100/1000Base-T), 8GB eMMC Flash, micro SD socket, no SATA, 1x PCIe, 4x USB2.0 Host, 1x USB2.Host/Client, I2S Audio, MIPI CSI-2 Camera input commercial temperature 0...+70°C | MSC SM2S-IMX6-010 PCBFTX | PV |
71242 | SMARC module based on NXP i.MX 6DualLite Dual-Core Cortex-A9 processor at 1GHz, 1GB DDR3 soldered, integrated Graphics, HDMI max. 1920x1080, dual-channel LVDS, Ethernet controller (10/100/1000Base-T), 8GB eMMC Flash, micro SD socket, no SATA, 1x PCIe, 1x USB2.0 Host, 1x USB2.0 Host/Client, I2S Audio, MIPI CSI-2 Camera input commercial temperature 0...+70°C | MSC SM2S-IMX6-03A PCBFTX | PV |
71668 | SMARC module based on NXP i.MX 6DualLite Dual-Core Cortex-A9 processor at 1GHz, 512MB DDR3 soldered, integrated Graphics, HDMI max. 1920x1080, dual-channel LVDS, Ethernet controller (10/100/1000Base-T), 8GB eMMC Flash, no micro SD socket, no SATA, 1x PCIe, 1x USB2.0 Host, 1x USB2.Host/Client, I2S Audio, MIPI CSI-2 Camera input extended temperature -20...+85°C | MSC SM2S-IMX6-238 PCBFTX | PV |
78697 | SMARC module based on NXP i.MX 6DualLite Dual-Core Cortex-A9 processor at 1GHz, 1GB DDR3 soldered, integrated Graphics, HDMI max. 1920x1080, dual-channel LVDS, Ethernet controller (10/100/1000Base-T), 8GB eMMC Flash, micro SD socket, no SATA, 1x PCIe, 4x USB2.0 Host, 1x USB2.Host/Client, I2S Audio, MIPI CSI-2 Camera input extended temperature -20...+85°C | MSC SM2S-IMX6-232 PCBFTX | PV |
82623 | SMARC module based on NXP i.MX 6Solo Single-Core Cortex-A9 processor at 800MHz, 1GB DDR3 soldered, integrated Graphics, HDMI max. 1920x1080, dual-channel LVDS, Ethernet controller (10/100/1000Base-T), 8GB eMMC Flash, no SD socket, no SATA, 1x PCIe, 1x USB2.0 Host, 1x USB2.Host/Client, I2S Audio, MIPI CSI-2 Camera input industrial temperature -40...+85°C | MSC SM2S-IMX6-118 PCBFTX | PV |
93551 | SMARC module based on NXP i.MX 6Solo Single-Core Cortex-A9 processorat 1GHz, 1GB DDR3 soldered, integrated Graphics, HDMI max. 1920x1080,dual-channel LVDS, Ethernet controller (10/100/1000Base-T), 8GB eMMCFlash, micro SD socket, no SATA, 1x PCIe, 4x USB2.0 Host, 1xUSB2.Host/Client, I2S Audio, MIPI CSI-2 Camera input commercialtemperature 0...+70°C | MSC SM2S-IMX6-012PCBFTX | PV |
94553 | SMARC module based on NXP i.MX 6DualLite Dual-Core Cortex-A9processor at 1GHz, 1GB DDR3 soldered, integrated Graphics, HDMI max.1920x1080, dual-channel LVDS, no Ethernet, 8GB eMMC Flash, micro SDsocket, no SATA, 1x PCIe, 1x USB2.0 Host, 1x USB2.0 Host/Client, I2SAudio, MIPI CSI-2 Camera input commercial temperature 0...+70°C | MSC SM2S-IMX6-03EPCBFTX | PV |
Accessories
Carrier Options
Order No. | Description | Reference |
68488 | SMARC 2.0 Embedded Platform with PCI Express x4 slot, GbE, SATA, USB 3.0, USB 2.0, USB 2.0 OTG, RS232, CAN, SPI, eSPI, SMBus, I2C and GPIO interface, LVDS/eDP, DisplayPort and HDMI display interface, regulated backlight supply, HD/I2S audio interface, MIPI CSI-2 camera interface, mini PCI Express card slot, SD card slot, fan connector, CMOS battery, Mini-ITX form factor (170 x 170 mm), ATX power connector and single 12V/24V power jack, commercial temperature range 0..+70°C | MSC SM2-MB-EP1-001 PCBFTX |
83977 | SMARC 2.x compatible embedded platform (146 x 80mm), 10-36V inputvoltage, 3x RS232, 2x CAN, dual RJ45 LAN with LED (1 x LAN i210) , 1xM.2 2280 Key M slot, mPCIe slot, 1x USB 3.0 Type A, 1x USB 2.0 Type A,1x USB 2.0 internal, 1x USB 2.0 Host/Device, 2x SPI, I²C, 8 GPIO onFC, 1x HDMI, LVDS/eDP/DSI on JILI30 connector, SD Card Slot,regulated backlight supply, I2S Audio, 1W Mono, camera connector, RTCbattery. Industrial temperature range -40..+85°C, ARM full version | MSC SM2S-MB-EP5-002 PCBFTX |
83981 | SMARC 2.x compatible embedded platform (146 x 80mm), 10-36V inputvoltage, 2x UART, 1x RS232, 2x CAN, 1x RJ45 LAN with LED, 1x USB 2.0Type A, 1x USB3.0 Type A, 1x USB 2.0 internal, 1x USB 2.0 Host/Device,2x SPI, 12 GPIO on FC, 1x HDMI , SD Card Slot, LVDS/eDP/DSI onJILI30 connector, regulated backlight supply, RTC battery. Industrialtemperature range -40..+85°C, ARM slim version | MSC SM2S-MB-EP5-004 PCBFTX |
Cooling Options
Order No. | Description | Reference |
1133175 | Heat spreader for SM2S-IMX6 module with flip-chip processor package (all single-core & dual-lite versions, all standard temperature versions) | MSC SM2S-IMX6-01 HSP-001 |
1133176 | Heat spreader for SM2S-IMX6 module with lidded processor package (extended temperature versions of dual- and quad-core only) | MSC SM2S-IMX6-02 HSP-001 |
Other Accessories
Order No. | Description | Reference |
40402 | Debug Console (UART) Adapter for i.MX6-based Qseven and nanoRISC modules, with 8-pin FFC cable to connect COM module to 9-pin D-Sub connector | MSC Debug Console Adapter |
68948 | Debug Adapter for i.MX6-based Qseven, SMARC and nanoRISC modules, with 10-pin FFC cable to connect to COM module, adapter provides headers for JTAG connection to Lauterbach and/or Goepel debuggers | MSC JTAG Adapter FFC 10-pin |
Starter Kits
Order No. | Description | Reference |
68994 | Starter Kit for MSC SM2S-IMX6 modules. Includes MSC SM2-MB-EP1 Baseboard, Heatspreader, SD Card with Linux installation and Power Supply. The StarterKit does not include the MSC SM2S-IMX6 module. Please order your choice of MSC SM2S-IMX6-XYZ module separately. | MSC SM2-SK-IMX6-EP1-KIT001 BRDFTX |
