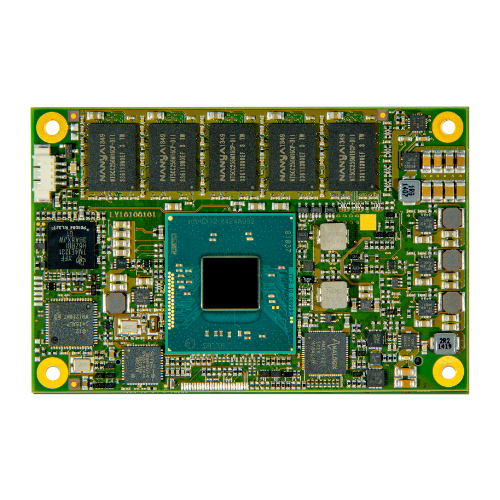

MSC C10M-BT

MSC C10M-BT

The Tria C10M-BT module is based on Intel‘s multi-core system-on-chip (SOC) Atom generation that integrates processor core, graphics, memory, and I/O interfaces into one solution. Based on 22nm processor technology it provides outstanding computing and graphics power and highest power efficiency. The new MSC C10M-BT brings dual independent display support, DirectX 11.1 and fast DDR3L memory on a very compact, power saving and cost-efficient COM Express Mini module. Different SOCs with single-, dual- and quad-core processors are supported by this design. Besides an extensive set of interfaces and features, the Tria C10M-BT optionally offers hardware based security compliant to the requirements of TCG (Trusted Computing Group). Type 10 pin-out offers USB 3.0 support and digital display interfaces like DisplayPort, HDMI 1.4a and DVI. The rugged design with soldered memory, optional ECC support and extended temperature range opens new application areas.

Highlights

  • Intel Atom E3845 quad-core 1.91GHz, 10W
  • Intel Atom E3827 dual-core 1.75GHz, 8W
  • Intel Atom E3826 dual -core 1.46GHz, 7W
  • Intel Atom E3825 dual -core 1.33GHz, 6W
  • Intel Atom E3815 single-core 1.46GHz, 5W
  • Intel Atom E3805 dual-core 1.33GHz, 3W (no graphics)
  • Intel Celeron N2807 dual-core 1.58/2.16GHz, 4.3W
  • Intel Celeron N2930 quad-core 1.83/2.16GHz, 7.5W
  • Intel Celeron J1900 quad-core 2.00/2.42GHz, 10W
  • Integrated Intel Gen. 7 HD graphics
  • Up to 8GB DDR3L SDRAM, ECC opt.
  • Two SATA 3Gb/s mass storage interfaces
  • eMMC SSD (optional)
  • DisplayPort/HDMI/DVI interface
  • LVDS/Embedded DisplayPort interface
  • Two independent displays supported
  • DirectX 11.1, OpenGL 3.2, OpenCL 1.1
  • One USB 3.0 and up to seven USB 2.0 interfaces
  • Two UARTs
  • Trusted Platform Module (option)
  • Extended temperature variants (on request)

Specifications

Technologyx86
Form FactorCOM Express Mini
CPUIntel Atom E3845 quad-core 1.91GHz, 10W TDP Intel Atom E3827 dual-core 1.75GHz, 8W TDP Intel Atom E3826 dual -core 1.46GHz, 7W TDP Intel Atom E3825 dual -core 1.33GHz, 6W TDP Intel Atom E3815 single-core 1.46GHz, 5W TDP Intel Atom E3805 dual-core 1.33GHz, 3W TDP (no graphics) Intel Celeron N2807 dual-core 1.58/2.16GHz, 4.3W TDP Intel Celeron N2930 quad-core 1.83/2.16GHz, 7.5W TDP Intel Celeron J1900 quad-core 2.00/2.42GHz, 10W TDP
ChipsetSOC
RAMup to 8GB DDR3L@1.35V SDRAM (DDR1333) soldered on board, ECC optional
FlasheMMC optional
Storage Interfaces2x SATA 3Gb/s
USB1x USB 3.0,

4x USB 2.0,

3x USB 2.0 (optional hub)
Serial Interfaces1x PCU UART

1x HS UART
Bus Interfaces3x PCI Express x1 Gen 2, fourth channel is available if no GbE is used LPC bus (Low Pin Count bus)
Display ControllerIntegrated Intel HD graphics Gen. 7
Display Interfaces1x Digital Display Interface (DP 1.1a (2560 x 1600), DVI/HDMI 1.4a (1920 x 1080)), 1x Embedded DisplayPort 1.3, 2560 x 1600 @ 60Hz (shared with LVDS), LVDS 24 bit, single-channel, 1366 x 768 @ 60Hz (shared with Embedded DisplayPort)
Network Interface10/100/1000Base-TX (Intel i210)
Audio InterfaceHigh Definition Audio
Security DeviceTPM 1.2 (option)
MiscellaneousWatchdog Timer: Initiates system reset, programmable RTC battery: external System Monitoring: voltage, temperature, CPU fan, system fan
Feature HighlightsType 10 pin-out
FirmwareAMI Aptio UEFI
OS SupportWindows 7 Windows 10 Windows 10 IOT Core BSP for Linux on request EAPI (HW Programming Interface)
Power RequirementWide range input +5 … +20V, 5V Stby optional, 8 W (typ.) up to 14 W (typ.)
EnvironmentAmbient Temperature 0° … 60°C (operating, commercial), -40° … 85°C (operating, industrial), -40° … 85°C (storage) Humidity: 5 … 95% (operating, non-condensing), 5 … 95% (storage, non-condensing)
Dimensions84mm x 55mm
CertificatesNO Certificates

Order Info

Order No.DescriptionReferenceStatus
49221COM Express Type 10 Mini module (84mm x 55mm) CPU: Intel E3815 single-core 1.46GHz, 0.5MB L2, 5W TDP Graphics: integrated Intel HD Gen 7 DP/HDMI and LVDS interfaces Ethernet: Intel i210 Gbit 2GB DDR3 SDRAM HD audio 2x SATA, 1x USB3, 7x USB2, 1x PCU UART, 1x HS UART 3x PCIe x1 -40...+85°CMSC C10M-BT-2111 PCBFTXPV
49219COM Express Type 10 Mini module (84mm x 55mm) CPU: Intel E3827 dual-core 1.75GHz, 1MB L2, 8W TDP Graphics: integrated Intel HD Gen 7 DP/HDMI and LVDS interfaces Ethernet: Intel i210 Gbit 4GB DDR3 SDRAM 4GB eMMC TPM HD audio 2x SATA, 1x USB3, 7x USB2, 1x PCU UART, 1x HS UART 3x PCIe x1 -40...+85°CMSC C10M-BT-3164 PCBFTXPV
49215COM Express Type 10 Mini module (84mm x 55mm) CPU: Intel E3845 quad-core 1.91GHz, 2MB L2, 10W TDP Graphics: integrated Intel HD Gen 7 DP/HDMI and LVDS interfaces Ethernet: Intel i210 Gbit 4GB DDR3 ECC SDRAM 16GB eMMC TPM HD audio 2x SATA, 1x USB3, 7x USB2, 1x PCU UART, 1x HS UART 3x PCIe x1 -40...+85°CMSC C10M-BT-33E5 PCBFTX PV
68403COM Express Type 10 Mini module (84mm x 55mm) CPU: Intel E3845 quad-core 1.91GHz, 2MB L2, 10W TDP Graphics: integrated Intel HD Gen 7 DP/HDMI and eDP interfaces Ethernet: Intel i210 Gbit 4GB DDR3 ECC SDRAM 16GB eMMC TPM HD audio 2x SATA, 1x USB3, 7x USB2, 1x PCU UART, 1x HS UART 3x PCIe x1 -40...+85°CMSC C10M-BT-37E5 PCBFTXPV
49213COM Express Type 10 Mini module (84mm x 55mm) CPU: Intel E3815 single-core 1.46GHz, 0.5MB L2, 5W TDP Graphics: integrated Intel HD Gen 7 DP/HDMI and LVDS interfaces Ethernet: Intel i210 Gbit 2GB DDR3 SDRAM HD audio 2x SATA, 1x USB3, 7x USB2, 1x PCU UART, 1x HS UART 3x PCIe x1MSC C10M-BT-2011 PCBFTXOR
49223COM Express Type 10 Mini module (84mm x 55mm) CPU: Intel E3825 dual-core 1.33GHz, 1MB L2, 6W TDP Graphics: integrated Intel HD Gen 7 DP/HDMI and LVDS interfaces Ethernet: Intel i210 Gbit 4GB DDR3 SDRAM HD audio 2x SATA, 1x USB3, 7x USB2, 1x PCU UART, 1x HS UART 3x PCIe x1MSC C10M-BT-2022 PCBFTXOR
49217COM Express Type 10 Mini module (84mm x 55mm) CPU: Intel Celeron J1900 quad-core 2.0/2.42GHz, 2MB L2, 10W TDP Graphics: integrated Intel HD Gen 7 DP/HDMI and LVDS interfaces Ethernet: Intel i210 Gbit 4GB DDR3 SDRAM 16GB eMMC HD audio 2x SATA, 1x USB3, 7x USB2, 1x PCU UART, 1x HS UART 3x PCIe x1MSC C10M-BT-20E7 PCBFTXOR
68335COM Express Type 10 Mini module (84mm x 55mm) CPU: Intel E3805 dual-core 1.33GHz, 1MB L2, 3W TDP Graphics: no Ethernet: Intel i210 Gbit 8GB DDR3 ECC SDRAM 32GB eMMC (SD) TPM HD audio 2x SATA, 1x USB3, 7x USB2, 3x PCIe x1 -40...+85°CMSC C10M-BT-37J9 PCBFTX OR
68389COM Express Type 10 Mini module (84mm x 55mm) CPU: Intel E3827 dual-core 1.75GHz, 1MB L2, 8W TDP Graphics: integrated Intel HD Gen 7 DP/HDMI and eDP interfaces Ethernet: Intel i210 Gbit 4GB DDR3 ECC SDRAM 16GB eMMC TPM HD audio 2x SATA, 1x USB3, 7x USB2, 1x PCU UART, 1x HS UART 3x PCIe x1 -40...+85°CMSC C10M-BT-37E4 PCBFTXOR
67761COM Express Type 10 Mini module (84mm x 55mm) CPU: Intel E3815 single-core 1.46GHz, 0.5MB L2, 5W TDP Graphics: integrated Intel HD Gen 7 DP/HDMI and LVDS interfaces Ethernet: Intel i210 Gbit 1GB DDR3 SDRAM HD audio 2x SATA, 1x USB3, 7x USB2, 1x PCU UART, 1x HS UART 3x PCIe x1MSC C10M-BT-2001 PCBFTX OR

Accessories

Carrier Options

Order No.DescriptionReference
67293COM Express Type 10 Evaluation Carrier Board with PCI Express x4 slot, USB 3.0/2.0, GbE, SATA, DisplayPort, eDP/LVDS and HD audio interfaces; Mini PCI Express socket, SD card slot, ATX power connector and single 12V power jack. Dimensions 170mm x 170mm (Mini-ITX form factor)MSC C10-MB-EV-001 PCBFTX

Cooling Options

Order No.DescriptionReference
1124458Heatspreader for C10M-BT. Single-piece aluminum profile, standoffs with M2.5 thread and thermopad for the thermal contact to SOC.MSC C10M-BT-02 HSP-001
1124457Heatspreader for C10M-BT. Single-piece aluminum profile, standoffs without thread (2.7mm inner diameter) and thermopad for the thermal contact to SOC.MSC C10M-BT-01 HSP-001
1126980Passive Heatsink for C10M-BT and C10M-BTC consisting of a single-piece aluminum pin cooler, standoffs without thread (2.7mm inner diameter) and thermopad for the thermal contact to SOC. With threaded mounting holes for an optional fan.MSC C10M-BT-01 HSI-001

Starter Kits

Order No.DescriptionReference
65357COM Express Type 10 Starterkit for all C10M-BT modules; uses the new C10-MB-EV platform for Type 10 modules (Mini-ITX format); includes suitable Heatspreader for C10M-BT modulesMSC C10-SK-BT-EV
