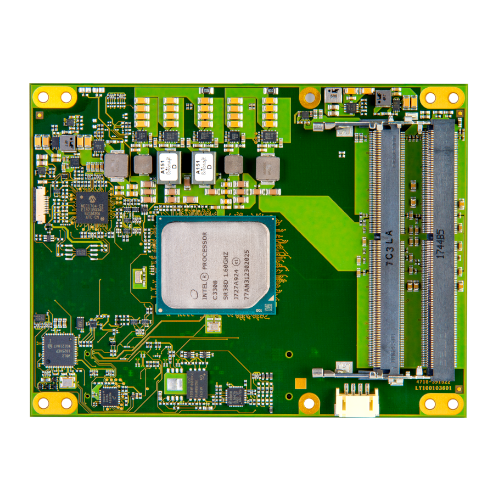

TRIA C7B-DVL

The TRIA C7B-DVL is equipped with Intel® C3000 series processors, offering broadest scalability from four to sixteen processor cores as well as low-cost entry-level models. The modules have up to five Ethernet interfaces, four of which offer transfer rates of 10Gb, up to 14 PCIe lanes and up to 96 GB DDR4 ECC memory. Some variants that support industrial-level temperatures (-40 to +85°C) are also thought for use in harsh environmental conditions. For evaluation purposes and for starter kits, Tria offers a matching Type 7 ATX form factor carrier board. This feature-rich carrier board brings not only numerous PCI Express slots, four 10Gb Ethernet ports, SATA and other interfaces, but also an optional BMC (Board Management Controller) for remote maintenance. Up to 15 years long-term supply.

Highlights

Intel Atom® C3958 16C, 20HSIO, 4x 10G, 31W TDP
Intel Atom® C3858 12C, 20HSIO, 4x 10G, 25W TDP
Intel Atom® C3758 8C, 20HSIO, 4x 10G, 25W TDP
Intel Atom® C3558 4C, 12HSIO, 2x 10G, 16W TDP
Intel Atom® C3538 4C, 12HSIO, 2x 10G, 15W TDP
Intel Atom® C3808 12C, 20HSIO, 4x 10G, 25W TDP, ext. temp
Intel Atom® C3708 8C, 20HSIO, 4x 10G, 17W TDP, ext. temp
Up to 96GB DDR4-2400 SDRAM (ECC optional)
Up to four 10GbE and one 1GbE interfaces
Two SATA 6Gb/s mass storage interfaces
Up to 14 PCI Express™ lanes routed from CPU to COM Express buckets 0, 3
Up to two USB 3.0 and four USB 2.0 interfaces
Trusted Platform Module
UEFI Firmware
Extended temperature variants

Specifications

Technology	x86
Form Factor	COM Express Basic
CPU	Intel Atom® C3958 16C, 2.0GHz, 20HSIO, 4x 10G, 31W TDP, QAT 20Gb/s, DDR4-2400 Intel Atom® C3858 12C, 2.0GHz, 20HSIO, 4x 10G, 25W TDP, QAT 20Gb/s, DDR4-2400 Intel Atom® C3758 8C, 2.2GHz, 20HSIO, 4x 10G, 25W TDP, QAT 10Gb/s, DDR4-2400 Intel Atom® C3558 4C, 2.2GHz, 12HSIO, 2x 10G, 16W TDP, QAT 5Gb/s, DDR4-2133 Intel Atom® C3538 4C, 2.1GHz, 12HSIO, 2x 10G, 15W TDP, QAT 5Gb/s comp. only, DDR4-2133 Intel Atom® C3808 12C, 2.0GHz, 20HSIO, 4x 10G, 25W TDP, QAT 20Gb/s, DDR4-2133, ext. temp Intel Atom® C3708 8C, 1.7GHz, 20HSIO, 4x 10G, 17W TDP, QAT 10Gb/s, DDR4-2133, ext. temp QAT (Intel® Quick Assist Technology) up to 20Gbps Intel® x86 64-bit Software Support VT-x and VT-d support
Chipset	Inside SoC
RAM	3x 260-pin SO-DIMM socket for up to 3x 32GB DDR4 SDRAM DDR4-2400 or DDR4-2133 max bandwidth depending on processor variant dual channel operation ECC option
Flash	eMMC up to 64GB
Storage Interfaces	2x SATA channels (up to 6Gb/s)
USB	Up to 2x USB 3.0, 4x USB 2.0
Serial Interfaces	2x high-speed serial ports
Bus Interfaces	Up to 14 PCI Express lanes Gen. 3 (from SoC), routed to COM Express PCIe buckets 0, 3, various lane bifurcation options
Display Controller	DISPLAY CONTROLLER DATA HERE
Network Interface	Up to four 10GBASE-KR (SKU dependent), one 10/100/1000Base-TX (Intel i210)
Security Device	Infineon TPM 2.0 on SPI bus
Miscellaneous	Watchdog Timer: Multi-stage watchdog, initiates system reset, programmable timeouts Fan Supply: 4-pin header for 12V CPU fan, PWM speed controlled and PWM speed control for system fan supported RTC battery: External System Monitoring: Voltage, temperature, CPU fan, system fan
Feature Highlights	Type 7 pin-out
Firmware	UEFI Firmware: AMI Aptio® V Security: UEFI Secure boot TPM 2.0 support TCG compliant Power Management: ACPI Active fan control USB: USB legacy support (keyboard, mouse, storage) Monitoring: System Monitoring Health Monitoring MSC Adv. Boot Device Selection: Boot device priority setting based on physical interfaces
OS Support	- Microsoft Windows® 10 IoT Enterprise (using add. Graphics card or BMC VGA) - Windows Server 2016 - Windows Server 2012 R2 (on request) - Linux (Yocto)
Power Requirement	Voltage: +12V +/-10%, 5V Stby optional, Power Consumption: 20 W to 40 W (typ.)
Environment	Ambient Temperature 0° … 60°C (commercial operating), -40 ... 85°C (extended operating), -25° … 85°C (storage) Humidity: 5 … 95% (operating, non-condensing), 5 … 95% (storage, non-condensing)
Dimensions	125mm x 95mm x 17mm
Certificates	UL / CE

Order Info

Order No.

Description

Reference

Status

78967	COM Express Type 7 Basic module (125mm x 95mm) CPU: Intel Atom C3958, 16 cores, 2.0GHz, 31W TDP Ethernet: 4x 10GbE, 1x 1GbE 2x SATA 2x USB3, 4x USB2 14x PCIe Gen 3 TPM 2.0 no eMMC 3x socket for DDR4 or DDR4ECC SO-DIMM DDR4-2400 0° … 60°C	MSC C7B-DVL-C3958-NN1N51C PCBFTX	OR
78965	COM Express Type 7 Basic module (125mm x 95mm) CPU: Intel Atom C3858, 12 cores, 2.0GHz, 25W TDP Ethernet: 4x 10GbE, 1x 1GbE 2x SATA 2x USB3, 4x USB2 14x PCIe Gen 3 TPM 2.0 no eMMC 3x socket for DDR4 or DDR4ECC SO-DIMM DDR4-2400 0° … 60°C	MSC C7B-DVL-C3858-NN1N51C PCBFTX	OR
78961	COM Express Type 7 Basic module (125mm x 95mm) CPU: Intel Atom C3758, 8 cores, 2.2GHz, 25W TDP Ethernet: 4x 10GbE, 1x 1GbE 2x SATA 2x USB3, 4x USB2 14x PCIe Gen 3 TPM 2.0 no eMMC 3x socket for DDR4 or DDR4ECC SO-DIMM DDR4-2400 0° … 60°C	MSC C7B-DVL-C3758-NN1N51C PCBFTX	OR
78957	COM Express Type 7 Basic module (125mm x 95mm) CPU: Intel Atom C3558, 4 cores, 2.2GHz, 16W TDP Ethernet: 2x 10GbE, 1x 1GbE 2x SATA 1x USB3, 4x USB2 8x PCIe Gen 3 TPM 2.0 no eMMC 3x socket for DDR4 or DDR4ECC SO-DIMM DDR4-2133 0° … 60°C	MSC C7B-DVL-C3558-NN1N01C PCBFTX	OR
78955	COM Express Type 7 Basic module (125mm x 95mm) CPU: Intel Atom C3538, 4 cores, 2.1GHz, 15W TDP Ethernet: 2x 10GbE, 1x 1GbE 2x SATA 1x USB3, 4x USB2 8x PCIe Gen 3 TPM 2.0 no eMMC 3x socket for DDR4 or DDR4ECC SO-DIMM DDR4-2133 0° … 60°C	MSC C7B-DVL-C3538-NN1N01C PCBFTX	PV
78963	COM Express Type 7 Basic module (125mm x 95mm) CPU: Intel Atom C3808, 12 cores, 2.0GHz, 25W TDP Ethernet: 4x 10GbE, 1x 1GbE 2x SATA 2x USB3, 4x USB2 14x PCIe Gen 3 TPM 2.0 no eMMC 3x socket for DDR4 or DDR4ECC SO-DIMM DDR4-2133 -40° … 85°C	MSC C7B-DVL-C3808-NN1N51I PCBFTX	PV
78959	COM Express Type 7 Basic module (125mm x 95mm) CPU: Intel Atom C3708, 8 cores, 1.7GHz, 17W TDP Ethernet: 4x 10GbE, 1x 1GbE 2x SATA 2x USB3, 4x USB2 14x PCIe Gen 3 TPM 2.0 no eMMC 3x socket for DDR4 or DDR4ECC SO-DIMM DDR4-2133 -40° … 85°C	MSC C7B-DVL-C3708-NN1N51I PCBFTX	PV

Accessories

Carrier Options

Order No.

Description

Reference

73278

COM Express Type 7 Evaluation Carrier Board with 7x PCI Express slot (x4/x8); 2x 10GbE (SFP+), 2x 10GbE (RJ45), 1x GbE; 2x SATA, four USB, SD Card, Super IO; slot for optional BMC card; POST code display; ATX power connector and single power jack. Dimensions 305mm x 244mm (ATX form factor) 0° ... 70°C

MSC C7-MB-EV-001 PCBFTX

Cooling Options

Order No.

Description

Reference

1142659	Active Heatsink for C7B-DV, C7B-DVL, consisting of a single-piece aluminum profile with fins, standoffs without thread (2.7mm inner diameter), screws and thermopads for the thermal contact to SOC and switch. PWM fan 80x80x15mm.	MSC C7B-DV-01 HSF-001
1142740	Passive Heatsink for C7B-DV, C7B-DVL, consisting of a single-piece aluminum profile with fins, standoffs without thread (2.7mm inner diameter), screws and thermopads for the thermal contact to SOC and switch.	MSC C7B-DV-01 HSI-001
1142741	Heatspreader for C7B-DV, C7B-DVL. Single-piece aluminum profile, standoffs without thread (2.7mm inner diameter), screws and thermopads for the thermal contact to SOC and switch. No fan, no SO-DIMM cutout.	MSC C7B-DV-01 HSP-001
1142742	Heatspreader for C7B-DV, C7B-DVL. Single-piece aluminum profile, standoffs with M2.5 thread, screws and thermopads for the thermal contact to SOC and switch. No fan, no SO-DIMM cutout.	MSC C7B-DV-02 HSP-001

Starter Kits

Order No.

Description

Reference

78029

Starterkit for COM Express Type 7 modules with Intel C3000 series processors. Consists of the MSC C7-MB-EV platform board for Type 7 modules, suitable heatsink with fan, two 4GB DDR4 memory modules, a graphics card and a suitable power supply with cable kit. Please order separately the COM Express C7B-DV or C7B-DVL module of your choice.

MSC C7-SK-DV-EV-KIT001 SETPAC
