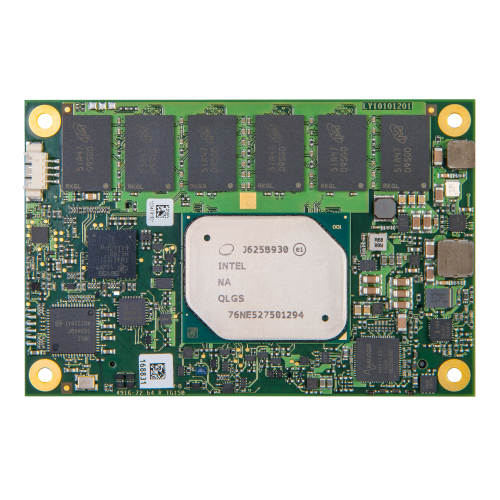

TRIA C10M-AL
The TRIA C10M-AL module is based on Intel’s multi-core system-on-chip (SOC) Atom generation (codenamed “Apollo Lake”). It integrates next generation Intel processor core, graphics, memory, and I/O interfaces into one solution. Manufactured in 14nm processor technology this multi-core Atom processor provides outstanding computing and graphics power and is more power efficient compared to its predecessors. The TRIA C10M-AL brings dual independent display support, DirectX 12, fast DDR3L memory, two USB 3.0 and 6 USB 2.0 on a compact, power saving and cost-efficient COM Express Mini module. Different SOCs with dual- and quad-core processors are supported. Besides an extensive set of interfaces and features, the TRIA C10M-AL optionally offers hardware based security compliant to the requirements of TCG (Trusted Computing Group). Type 10 pin-out supports digital display interfaces like DisplayPort, HDMI and DVI. The rugged design with soldered memory, optional ECC support and extended temperature range combined with a long-term availability commitment make it perfectly suited for modern IoT solutions.
Highlights
- Intel Atom X7-E3950 quad-core 1.6/2.0GHz, 12W
- Intel Atom x5-E3940 quad-core 1.6/1.8GHz, 9.5W
- Intel Atom x5-E3930 dual-core 1.3/1.8GHz, 6.5W
- Intel Pentium N4200 quad-core 1.1/2.5GHz, 6W
- Intel Celeron N3350 dual-core 1.1/2.4GHz, 6W
- Integrated Intel Gen. 9 HD Graphics
- Up to 8GB DDR3L SDRAM (ECC option)
- Two SATA 6Gb/s mass storage interfaces
- eMMC option
- DisplayPort/HDMI/DVI interface
- LVDS/Embedded DisplayPort interface
- Two independent displays supported
- DirectX 12, OpenGL 4.3, OpenCL 2.0
- Two USB 3.0/2.0 and six USB 2.0 interfaces
- Two high-speed UARTs
- Up to four PCI Express™ x1 lanes
- UEFI Firmware
- Trusted Platform Module (option)
- Extended temperature variants
Specifications
| Technology | x86 |
| Form Factor | COM Express Mini |
| CPU | Intel Atom X7-E3950 quad-core 1.6/2.0GHz, 18 EU GFX, 12WIntel Atom X5-E3940 quad-core 1.6/1.8GHz, 12 EU GFX, 9.5WIntel Atom X5-E3930 dual-core 1.3/1.8GHz, 12 EU GFX, 6.5WIntel Pentium N4200 quad-core 1.1/2.5GHz, 18 EU GFX, 6WIntel Celeron N3350 dual-core 1.1/2.4GHz, 12 EU GFX, 6W |
| Chipset | SOC |
| RAM | up to 8GB DDR3L@1.35V SDRAM soldered on board, ECC optional |
| Flash | eMMC option |
| Storage Interfaces | 2x SATA 6Gb/s |
| USB | 2x USB 3.0,6 x USB 2.0,1 x USB 2.0/3.0 client |
| Serial Interfaces | 2x HS UART |
| Bus Interfaces | 4x PCI Express x1 Gen 2,LPC bus (Low Pin Count bus) |
| Display Controller | Integrated Intel HD graphics Gen. 9Up to 18 execution units (EU)DirectX 12.0, OpenGL 4.3, OpenCL 2.0 Full ProfileMPEG2, H.264 (L5.2), VC-1, WMV9,VP8, JPEG/MJPEG, H.265 (HEVC),VP9, MVC |
| Display Interfaces | Two independent displays supported:1x Digital Display Interface (DP 1.2a (4096 x 2160 @ 60Hz), HDMI 1.4b (3840 x 2160 @ 30Hz)1x Embedded DisplayPort 1.3 (on variants without LVDS only) 4096 x 2160 @ 60Hz,LVDS 24bit, single-channel, 1366 x 768 @ 60Hz (shared with Embedded DisplayPort) |
| Network Interface | 10/100/1000Base-TX (Intel i210) |
| Audio Interface | High Definition Audio |
| Security Device | TPM 2.0 (option) |
| Miscellaneous | Watchdog Timer:Initiates system reset, programmableRTC battery:externalSystem Monitoring:voltage, temperature, CPU fan, system fan |
| Feature Highlights | Type 10 pin-out |
| Firmware | AMI Aptio UEFI |
| OS Support | Windows 10 (embedded)BSP for Linux on requestEAPI (HW Programming Interface) |
| Power Requirement | Wide range input +5 … +20V,5V Stby optional,7 W (typ.) up to 14 W (typ.) |
| Environment | Ambient Temperature0° … 60°C (operating, commercial),-40° … 85°C (operating, industrial),-40° … 85°C (storage)Humidity:5 … 95% (operating, non-condensing),5 … 95% (storage, non-condensing) |
| Dimensions | 84mm x 55mm |
Order Info
| Order No. | Description | Reference | Status |
| 70334 | COM Express Type 10 Mini module (84mm x 55mm) CPU: Intel Atom X5-E3950 quad-core 1.6/2.0GHz, 2MB L2, 12W TDP Graphics: integrated Intel HD Gen 9 DP/HDMI and LVDS interfaces Ethernet: Intel i210 Gbit 8GB DDR3L ECC SDRAM 16GB eMMC HD audio TPM 2x SATA, 2x USB3/2, 6x USB2, 2x HS UART 4x PCIe x1 -40 ... +85°C | MSC C10M-AL-E3950-341201I PCBFTX | PV |
| 70260 | COM Express Type 10 Mini module (84mm x 55mm) CPU: Intel Atom X5-E3940 quad-core 1.6/1.8GHz, 2MB L2, 9.5W TDP Graphics: integrated Intel HD Gen 9 DP/HDMI and eDP interfaces Ethernet: Intel i210 Gbit 4GB DDR3L SDRAM 16GB eMMC HD audio TPM 2x SATA, 2x USB3/2, 6x USB2, 2x HS UART 4x PCIe x1 -40 ... +85°C | MSC C10M-AL-E3940-240101I PCBFTX | PV |
| 70332 | COM Express Type 10 Mini module (84mm x 55mm) CPU: Intel Atom X5-E3940 quad-core 1.6/1.8GHz, 2MB L2, 9.5W TDP Graphics: integrated Intel HD Gen 9 DP/HDMI and LVDS interfaces Ethernet: Intel i210 Gbit 4GB DDR3L SDRAM 16GB eMMC HD audio TPM 2x SATA, 2x USB3/2, 6x USB2, 2x HS UART 4x PCIe x1 -40 ... +85°C | MSC C10M-AL-E3940-240201I PCBFTX | PV |
| 70258 | COM Express Type 10 Mini module (84mm x 55mm) CPU: Intel Atom X5-E3930 dual-core 1.3/1.8GHz, 2MB L2, 6.5W TDP Graphics: integrated Intel HD Gen 9 DP/HDMI and LVDS interfaces Ethernet: Intel i210 Gbit 4GB DDR3L SDRAM 16GB eMMC HD audio TPM 2x SATA, 2x USB3/2, 6x USB2, 2x HS UART 4x PCIe x1 -40 ... +85°C | MSC C10M-AL-E3930-240201I PCBFTX | PV |
| 70340 | COM Express Type 10 Mini module (84mm x 55mm) CPU: Intel Pentium N4200 quad-core 1.1/2.5GHz, 1MB L2, 6W TDP Graphics: integrated Intel HD Gen 9 DP/HDMI and eDP interfaces Ethernet: Intel i210 Gbit 8GB DDR3L SDRAM 16GB eMMC HD audio TPM 2x SATA, 2x USB3/2, 6x USB2, 2x HS UART 4x PCIe x1 0 ... +60°C | MSC C10M-AL-N4200E-340101C PCBFTX | OR |
| 70344 | COM Express Type 10 Mini module (84mm x 55mm) CPU: Intel Pentium N4200 quad-core 1.1/2.5GHz, 1MB L2, 6W TDP Graphics: integrated Intel HD Gen 9 DP/HDMI and LVDS interfaces Ethernet: Intel i210 Gbit 8GB DDR3L SDRAM 32GB eMMC HD audio TPM 2x SATA, 2x USB3/2, 6x USB2, 2x HS UART 4x PCIe x1 0 ... +60°C | MSC C10M-AL-N4200E-350201C PCBFTX | OR |
| 70342 | COM Express Type 10 Mini module (84mm x 55mm) CPU: Intel Celeron N3350 dual-core 1.1/2.4GHz, 2MB L2, 6W TDP Graphics: integrated Intel HD Gen 9 DP/HDMI and eDP interfaces Ethernet: Intel i210 Gbit 8GB DDR3L SDRAM 32GB eMMC HD audio TPM 2x SATA, 2x USB3/2, 6x USB2, 2x HS UART 4x PCIe x1 0 ... +60°C | MSC C10M-AL-N3350E-350101C PCBFTX | OR |
| 70338 | COM Express Type 10 Mini module (84mm x 55mm) CPU: Intel Celeron N3350 dual-core 1.1/2.4GHz, 2MB L2, 6W TDP Graphics: integrated Intel HD Gen 9 DP/HDMI and LVDS interfaces Ethernet: Intel i210 Gbit 8GB DDR3L SDRAM 16GB eMMC HD audio TPM 2x SATA, 2x USB3/2, 6x USB2, 2x HS UART 4x PCIe x1 0 ... +60°C | MSC C10M-AL-N3350E-340201C PCBFTX | OR |
| 70336 | COM Express Type 10 Mini module (84mm x 55mm) CPU: Intel Atom X5-E3950 quad-core 1.6/2.0GHz, 2MB L2, 12W TDP Graphics: integrated Intel HD Gen 9 DP/HDMI and eDP interfaces Ethernet: Intel i210 Gbit 8GB DDR3L ECC SDRAM 32GB eMMC HD audio TPM 2x SATA, 2x USB3/2, 6x USB2, 2x HS UART 4x PCIe x1 -40 ... +85°C | MSC C10M-AL-E3950-351101I PCBFTX | OR |
| 70346 | COM Express Type 10 Mini module (84mm x 55mm) CPU: Intel Atom X5-E3930 dual-core 1.3/1.8GHz, 2MB L2, 6.5W TDP Graphics: integrated Intel HD Gen 9 DP/HDMI and LVDS interfaces Ethernet: Intel i210 Gbit 2GB DDR3L SDRAM no eMMC HD audio TPM 2x SATA, 2x USB3/2, 6x USB2, 2x HS UART 4x PCIe x1 -40 ... +85°C | MSC C10M-AL-E3930-1N0201I PCBFTX | OR |
| 70348 | COM Express Type 10 Mini module (84mm x 55mm) CPU: Intel Atom X5-E3930 dual-core 1.3/1.8GHz, 2MB L2, 6.5W TDP Graphics: integrated Intel HD Gen 9 DP/HDMI and eDP interfaces Ethernet: Intel i210 Gbit 4GB DDR3L SDRAM 16GB eMMC HD audio TPM 2x SATA, 2x USB3/2, 6x USB2, 2x HS UART 4x PCIe x1 -40 ... +85°C | MSC C10M-AL-E3930-240101I PCBFTX | OR |
| 111748 | COM Express Type 10 Mini module (84mm x 55mm) CPU: Intel Atom X5-E3930 dual- core 1.3/1.8GHz, 2MB L2, 6.5W TDP Graphics: integrated Intel HD Gen 9 DP/HDMI and LVDS interfaces Ethernet: Intel i210 Gbit 4GB DDR3L SDRAM no eMMC HD audio TPM 2x SATA, 2x USB3/2, 6x USB2, 2x HS UART 4x PCIe x1 -40 ... +85°C (FAN connector assembled) | MSC C10M-AL- E3930-2N0201I PCBFTX | PV |
Accessories
Cooling Options
| Order No. | Description | Reference |
1137520 | Heatspreader for C10M-AL (Pentium/Celeron versions only). Single-piece aluminum profile, standoffs with M2.5 thread and thermopad for the thermal contact to SOC. | MSC C10M-AL-04 HSP-001 |
1137519 | Heatspreader for C10M-AL (Pentium/Celeron versions only). Single-piece aluminum profile, standoffs without thread (2.7mm inner diameter) and thermopad for the thermal contact to SOC. | MSC C10M-AL-03 HSP-001 |
1137517 | Heatspreader for C10M-AL (Atom versions only). Single-piece aluminum profile, standoffs with M2.5 thread and thermopad for the thermal contact to SOC. | MSC C10M-AL-02 HSP-001 |
1137518 | Passive Heatsink for C10M-AL (Pentium/Celeron versions only), consisting of a single-piece aluminum pin cooler, standoffs without thread (2.7mm inner diameter) and thermopad for the thermal contact to SOC. With threaded mounting holes for an optional fan. | MSC C10M-AL-02 HSI-001 |
1137516 | Heatspreader for C10M-AL (Atom versions only). Single-piece aluminum profile, standoffs without thread (2.7mm inner diameter) and thermopad for the thermal contact to SOC. | MSC C10M-AL-01 HSP-001 |
1137515 | Passive Heatsink for C10M-AL (Atom versions only), consisting of a single-piece aluminum pin cooler, standoffs without thread (2.7mm inner diameter) and thermopad for the thermal contact to SOC. With threaded mounting holes for an optional fan. | MSC C10M-AL-01 HSI-001 |
Starter Kits
| Order No. | Description | Reference |
| 70810 | COM Express Type 10 Starterkit for C10M-AL modules with Intel Apollo Lake processors; uses the C10-MB-EV Mini-ITX platform for Type 10 modules; includes suitable Heatsinks for C10M-AL modules, 12V Power Supply and cable kit. Please order separately the COM Express C10M-AL module of your choice. | MSC C10-SK-AL-EV-KIT001 |
