TRIA C10M-ALN

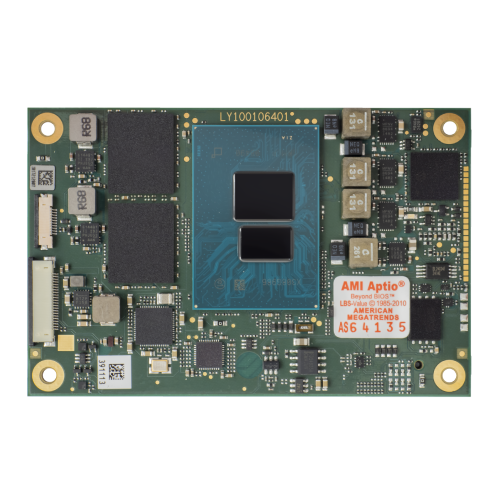

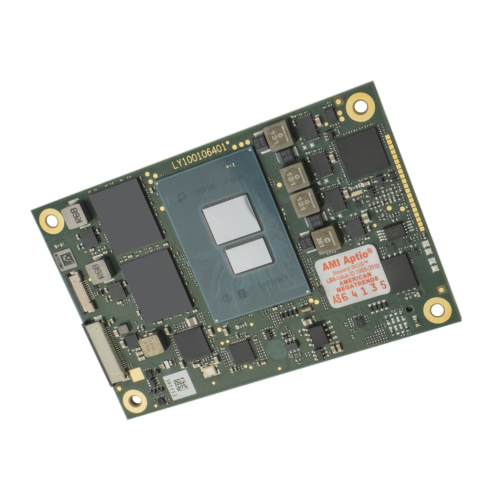

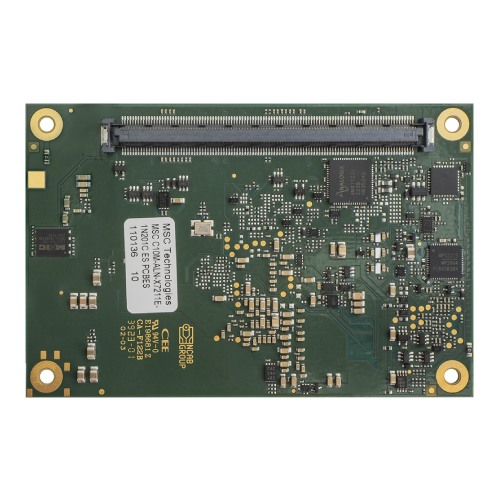

Intel ModuleThe TRIA C10M-ALN module features the Intel Atom® processors x7000E Series, Intel® Core ™i3 processor and Intel® Processors N Series (codenamed “Alderlake N”). The CPU architecture is based on the same Efficient-cores and Intel® UHD graphics driven by Xe architecture as the 12th Gen Intel® Core™ processors, thus easing up application migration across Intel® CPU performance and power ranges. With support for up to eight processor cores, the module fits to a wide range of applications including point-of-sales terminals, digital signage controllers, HMI solutions and medical equipment.
The TRIA C10M-ALN offers dual independent display support with a maximum of 4k resolution, fast LPDDR5 memory with up to 16GB and optional IBECC capabilities, eMMC 5.1, USB 3.2 Gen 2 (10Gb/s) and PCIe Gen3 on a power saving and cost-efficient COM Express mini module.
Different SOCs with dual-, quad- and eight-core processors are supported by this design. In addition to an extensive set of interfaces and features, the TRIA C10M-ALN offers Gigabit Ethernet based on Intel® i226 and supports up to 2.5GbE bandwidth. System investments are well protected through long-term availability of the module, designed, and manufactured by Tria Technologies. The COM Express standard enables performance scaling and migrating applications to future technology upgrades when they become available.
Highlights
- Up to eight processing cores
- Power efficient processors, TDP 6 to 15W
- Integrated Intel UHD Gen.12 graphics, max. 32 executing units .
- Up to 16GB LPDDR5 SDRAM (IBECC for Atom SKU´s)
- Up to 256GB eMMC 5.1 Flash (optional)
- 2x SATA-III interface (6Gbps)
- DisplayPort/HDMI/DVI interface
- LVDS/Embedded DisplayPort interface
- Dual Independent Display support
- MIPI-CSI Camera Interface
- 4x PCI Express x1 Gen. 3
- Two USB 3.2 Gen 2 (10Gb/s) and eight USB 2.0 interfaces
- One Gb Ethernet port (Intel® i226)
- TSN, TCC support
- UART, SPI, I2C, SMBus
- High Definition Audio (HD-A)
- UEFI Firmware
- Trusted Platform Module TPM 2.0
Specifications
| Technology | x86 |
| Form Factor | COM Express Mini |
| CPU | Intel® Core™ i3-N305, eight-core, 1.0GHz/1.8GHz, 32EU, 9/15W, PUC Intel Atom® x7425E, four-core, 1.5GHz, 24EU, TCC, 12W, EUC Intel Atom® x7213E, two-core, 1.7GHz, 16EU, TCC, 10W, EUC Intel Atom® x7211E, two-core, 1.0GHz, 16EU, TCC, 6W, EUC Intel® Processor N200, quad-core, 1.0GHz, 32EU, 6W, PUC Intel® Processor N97, quad-core, 2.0GHz, 24EU, 12W, PUC Intel® Processor N50, dual-core, 1.0GHZ, 16EU, 6W, PUC EUC- Intel Embedded Use Conditions PUC - Intel PC Client Use Conditions |
| Chipset | SoC |
| RAM | Up to 16GB LPDDR5 SDRAM, up to 4800MT/s, IBECC (only Atom SKU´s), soldered |
| Flash | On-board eMMC mass storage option, scalable capacity up to 256GB |
| Storage Interfaces | 2x SATA 6Gb/s |
| USB | 2x USB 3.2 Gen 2 (10Gb/s) 8 x USB 2.0 |
| Serial Interfaces | Two UARTS |
| Bus Interfaces | 4x PCI Express x1 Gen 3 (1x PCI Express x4 Gen 3 on request) LPC bus (Low Pin Count bus no DMA support) (eSPI on request) |
| Display Controller | Integrated Intel UHD Graphics (Gen12) Up to 32 execution units (EU) |
| Display Interfaces | Two independent displays supported: 1x Digital Display Interface (DP, HDMI) 1x Embedded DisplayPort (on variants without LVDS only) LVDS 24bit, single-channel (not on all variants) max. 1920 x 1200 @ 60Hz |
| Network Interface | 10/100/1000Base-TX, 2.5G² based on Intel i226 ² Available bandwidths depending on carrier design |
| Audio Interface | High Definition Audio(HD-A) |
| Security Device | TPM 2.0 |
| Miscellaneous | Watchdog Timer: Initiates system reset RTC battery: external System Monitoring: voltage, temperature, system fan GPIO, GSPI (COM.0 Rev. 3.1) |
| Feature Highlights | Type 10 pin-out |
| Firmware | AMI Aptio UEFI |
| OS Support | Windows 10 IoT Enterprise 2021 LTSC Yocto Project (LTS kernel 2021) |
| Power Requirement | Wide range input +5 … +20V, 5V Stby optional, 8W (typ.) up to 17W (typ.) |
| Environment | Temperature Range: Commercial: 0° … 60°C (operating) -20° … 85°C (storage) Humidity: 5 … 95% (operating, non-condensing) 5 … 95% (storage, non-condensing) |
| Dimensions | 84x 55 |
| Certificates | UL / CE |
| Cooling | Passive heat sink Heat spreader with threaded or non-threaded standoffs |
| Carrier | Small carrier board (Mini-ITX) as part of a starter kit |
Order Info
| Order No. | Description | Reference | Status |
| 113770 | COM Express Type 10 Mini module (84mm x 55mm) CPU: Intel Atom x7211E dual-core 1.0/3.2GHz, 6W TDP Graphics: Intel UHD DP/HDMI and LVDS interfaces Ethernet: 1Gbit 2GB LPDDR5 SDRAM, in-band ECC no eMMC HD audio TPM 2.0 2x SATA, 2x USB3/2, 6x USB2, 2x UART 4x PCIe x1 0 ... +60°C | MSC C10M-ALN-x7211E-1N201C PCBFTX | PV |
| 113766 | COM Express Type 10 Mini module (84mm x 55mm) CPU: Intel Processor N50 dual-core 1.0/3.4GHz, 6W TDP Graphics: Intel UHD DP/HDMI and LVDS interfaces Ethernet: 1Gbit 2GB LPDDR5 SDRAM, in-band ECC no eMMC HD audio TPM 2.0 2x SATA, 2x USB3/2, 6x USB2, 2x UART 4x PCIe x1 0 ... +60°C | MSC C10M-ALN-N50-1N201C PCBFTX | OR |
| 113764 | COM Express Type 10 Mini module (84mm x 55mm) CPU: Intel Processor N200 quad-core 1.0/3.7GHz, 6W TDP Graphics: Intel UHD DP/HDMI and LVDS interfaces Ethernet: 1Gbit 4GB LPDDR5 SDRAM, in-band ECC 16GB eMMC HD audio TPM 2.0 2x SATA, 2x USB3/2, 6x USB2, 2x UART 4x PCIe x1 0 ... +60°C | MSC C10M-ALN-N200-24201C PCBFTX | OR |
| 113772 | COM Express Type 10 Mini module (84mm x 55mm) CPU: Intel Atom x7211E dual-core 1.0/3.2GHz, 6W TDP Graphics: Intel UHD DP/HDMI and LVDS interfaces Ethernet: 1Gbit 4GB LPDDR5 SDRAM, in-band ECC 16GB eMMC HD audio TPM 2.0 2x SATA, 2x USB3/2, 6x USB2, 2x UART 4x PCIe x1 0 ... +60°C | MSC C10M-ALN-x7211E-24201C PCBFTX | OR |
| 113774 | COM Express Type 10 Mini module (84mm x 55mm) CPU: Intel Atom x7213E dual-core 1.7/3.2GHz, 10W TDP Graphics: Intel UHD DP/HDMI and LVDS interfaces Ethernet: 1Gbit 4GB LPDDR5 SDRAM, in-band ECC 16GB eMMC HD audio TPM 2.0 2x SATA, 2x USB3/2, 6x USB2, 2x UART 4x PCIe x1 0 ... +60°C | MSC C10M-ALN-x7213E-24201C PCBFTX | PV |
| 113780 | COM Express Type 10 Mini module (84mm x 55mm) CPU: Intel Atom x7425E quad-core 1.5/3.4GHz, 12W TDP Graphics: Intel UHD DP/HDMI and LVDS interfaces Ethernet: 1Gbit 8GB LPDDR5 SDRAM, in-band ECC no eMMC HD audio TPM 2.0 2x SATA, 2x USB3/2, 6x USB2, 2x UART 4x PCIe x1 0 ... +60°C | MSC C10M-ALN-x7425E-3N201C PCBFTX | OR |
| 113778 | COM Express Type 10 Mini module (84mm x 55mm) CPU: Intel Atom x7425E quad-core 1.5/3.4GHz, 12W TDP Graphics: Intel UHD DP/HDMI and eDP interfaces Ethernet: 1Gbit 8GB LPDDR5 SDRAM, in-band ECC 16GB eMMC HD audio TPM 2.0 2x SATA, 2x USB3/2, 6x USB2, 2x UART 4x PCIe x1 0 ... +60°C | MSC C10M-ALN-x7425E-34101C PCBFTX | PV |
| 113776 | COM Express Type 10 Mini module (84mm x 55mm) CPU: Intel Atom x7213E dual-core 1.7/3.2GHz, 10W TDP Graphics: Intel UHD DP/HDMI and eDP interfaces Ethernet: 1Gbit 8GB LPDDR5 SDRAM, in-band ECC no eMMC HD audio TPM 2.0 2x SATA, 2x USB3/2, 6x USB2, 2x UART 4x PCIe x1 0 ... +60°C | MSC C10M-ALN-x7213E-3N101C PCBFTX | PV |
| 113768 | COM Express Type 10 Mini module (84mm x 55mm) CPU: Intel Processor N97 quad-core 2.0/3.6GHz, 12W TDP Graphics: Intel UHD DP/HDMI and eDP interfaces Ethernet: 1Gbit 8GB LPDDR5 SDRAM, in-band ECC no eMMC HD audio TPM 2.0 2x SATA, 2x USB3/2, 6x USB2, 2x UART 4x PCIe x1 0 ... +60°C | MSC C10M-ALN-N97-3N101C PCBFTX | OR |
| 113762 | COM Express Type 10 Mini module (84mm x 55mm) CPU: Intel Core i3-N305 octal-core 1.8/3.8GHz, 15W TDP Graphics: Intel UHD DP/HDMI and LVDS interfaces Ethernet: 1Gbit 16GB LPDDR5 SDRAM, in-band ECC 32GB eMMC HD audio TPM 2.0 2x SATA, 2x USB3/2, 6x USB2, 2x UART 4x PCIe x1 0 ... +60°C | MSC C10M-ALN-i3-N305-45201C PCBFTX | PV |
| 113791 | COM Express Type 10 Mini module (84mm x 55mm) CPU: Intel Atom x7425E quad-core 1.5/3.4GHz, 12W TDP Graphics: Intel UHD DP/HDMI and LVDS interfaces Ethernet: 1Gbit 16GB LPDDR5 SDRAM, in-band ECC 32GB eMMC HD audio TPM 2.0 2x SATA, 2x USB3/2, 6x USB2, 2x UART 4x PCIe x1 0 ... +60°C | MSC C10M-ALN-x7425E-45201C PCBFTX | PV |
Accessories
Carrier Options
| Order No. | Description | Reference |
| 67293 | COM Express Type 10 Evaluation Carrier Board with PCI Express x4 slot, USB 3.0/2.0, GbE, SATA, DisplayPort, eDP/LVDS and HD audio interfaces; Mini PCI Express socket, SD card slot, ATX power connector and single 12V power jack. Dimensions 170mm x 170mm (Mini-ITX form factor) | MSC C10-MB- EV-001 PCBFTX |
Cooling Options
| Order No. | Description | Reference |
| 110195 | Passive Heatsink for C10M-ALN and C10M-ASL (all versions), consisting of a single-piece aluminum pin cooler, standoffs without thread (2.7mm inner diameter) and thermopad for the thermal contact to SOC. With threaded mounting holes for an optional fan. | MSC C10M- ALN-01 HSI-001 |
| 110196 | Heatspreader for C10M-ALN and C10M-ASL (all versions). Single-piece aluminum profile, standoffs without thread (2.7mm inner diameter) and thermopad for the thermal contact to SOC. | MSC C10M- ALN-01 HSP-001 |
| 110197 | Heatspreader for C10M-ALN and C10M-ASL (all versions). Single-piece aluminum profile, standoffs with M2.5 thread and thermopad for the thermal contact to SOC. | MSC C10M- ALN-02 HSP-001 |
Starter Kits
| Order No. | Description | Reference |
| 115022 | COM Express Type 10 Starterkit for all C10M-ALN and C10M-ASL modules; contains the C10-MB-EV platform for Type 10 modules (Mini-ITX format); includes suitable Heatspreader for C10M-ALN/-ASL modules, 12V power supply and cable kit | MSC C10-SK-ALN- ASL-EV-KIT001 BRDFTX |
Support
As registered customer you can directly create a ticket in our Support Center (Ticket) and visit our Technical Documentation Center (TechDoC)
