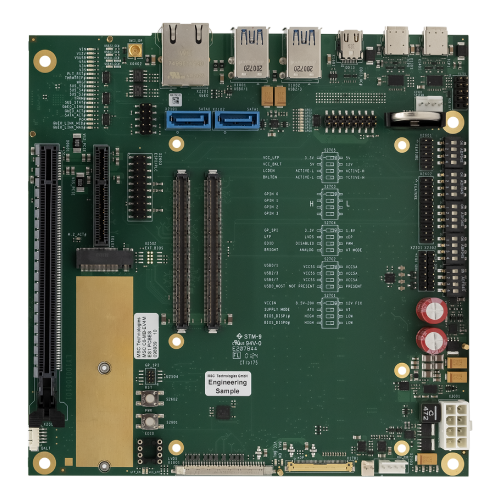

TRIA C6-MB-EV4M
Carrier BoardCOM Express™, an open specification of the PICMG (PCI Industrial Computer Manufacturer Group), is a module concept to bring PCI Express and other high speed serial technologies like SATA, USB and digital display interfaces on a COM (Computer On Module).
The TRIA C6-MB-EV4M is a versatile carrier board designed to evaluate and prototype system electronics and software before an application specific baseboard is available. It provides the interface infrastructure for the COM Express Type 6 modules and offers a variety of IO connectors for external access. The carrier board supports PCI Express® Gen 4, USB4 Type-C and 2.5Gb Ethernet available with latest module generations.
This universal platform allows you to quickly test and choose the right product from the Tria Technologies COM Express portfolio.
Highlights
- Interface for COM Express® Module Type 6 up to basic form factor
- One PCI Express® Gen4 x4 slot
- One PCIe Express® Gen4 x16 graphics slot (PEG)
- One M.2 Key-M slot (PCIe Gen4)
- LVDS / eDP interface
- 1 Mini DisplayPort++ connector
- 4 USB 3.1 Gen 1 / 2.0 root hub interfaces
- 2 USB 2.0 pin header
- 2 USB Type-C connectors
- 2 SATA channels up to 600 MB/s
- RJ45 Ethernet jack with integrated magnetics up to 2.5Gbit
- 2 COM ports
- Connectors for eSPI/LPC, GPIOs
- POST code display and dual RS232 on optional module
- Fan connector with PWM interface
- Power supply connector, wide input range
- Mini-ITX form factor
Specifications
| Technology | COM Express Type 6 Carrier |
| Form Factor | Mini-ITX |
| Storage Interfaces | 2x SATA connector 1x M.2-Slot (Key ID M), type 2242/2280, PCIe x4 Gen 3/4 Feature availability depending on installed module type. Please consult the product documentation for details. |
| USB | 4x USB 3.1 Gen 1 / 2.0 Type-A on I/O shield 2x USB 2.0 on pin headers 2x USB4 Type-C on I/O shield Feature availability depending on installed module type. Please consult the product documentation for details. |
| Serial Interfaces | 2x serial port on pin header (FTDI), TX / RX only, TTL level Feature availability depending on installed module type. Please consult the product documentation for details. |
| Bus Interfaces | 1x PCI Express Gen4 x4 slot 1x PCIe Gen4 x16 graphics slot (PEG) Feature availability depending on installed module type. Please consult the product documentation for details. |
| Display Interfaces | 2-channels LVDS interface on JILI30 connector multiplexed with 4-lanes Embedded DisplayPort (eDP) interface on 40-pin connector Mini DisplayPort receptacle, DP++ capable Feature availability depending on installed module type. Please consult the product documentation for details. |
| Network Interface | 1x 1GbE / 2.5GbE from COM Express module Feature availability depending on installed module type. Please consult the product documentation for details. |
| Miscellaneous | Dual 220-pin connector (440 pins) Pin header for GPIOs eSPI/LPC pin header Feature connector SPI pin header for external BIOS flash Optional POST code display on module Serial E²PROM on I²C-Bus, serial E²PROM on SMBus 4-pin fan connector PWM controlled RTC 3V battery, CR2032 on battery holder |
| Feature Highlights | Versatile carrier board for evaluation and prototyping |
| OS Support | BSP ( for onboard devices ) for Windows and Linux Feature availability depending on installed module type. Please consult the product documentation for details. |
| Power Requirement | EPS12V connector, 8-pin, wide input range 8.5V to 20V |
| Environment | Ambient Temperature 0° … +60°C (operating), -25° … 85°C (storage) Humidity 20 … 80% (operating, non-condensing), 5 … 95% (storage, non-condensing) |
| Dimensions | 170 x 170 |
Order Info
| Order No. | Description | Reference | Status |
| tbd | COM Express Type 6 Evaluation Carrier Board with PCI Express x4 and x16 slots, USB 3.0/2.0, USB4 Type-C, GbE, M.2, SATA, DisplayPort, LVDS, eDP ATX power connector. Dimensions: 170 x 170 mm (Mini-ITX form factor) | MSC C6-MB-EV4M PCBFTX | PV |
| 111163 | Extension module for MSC C6-MB-EV4/EV4M, with LPC interface, dual RS232, POST code display Nuovoton Super I/O. | MSC C6-MB-EVLPC-001 PCBFTX | PV |
Accessories
5.0″ Display kit
| Order No. | Description | Reference |
| 81871 | Displaykit suitable for all COM Carrier Boards and all COM Starterkits. Comprises 5.0" WVGA LCD with PCAP Touch Sensor and Touch Controller Includes all cables required to connect to COM Carrier Boards (LVDS, B/L & Touch) | MSC DIS-AM800480-050-KIT BRDFTX |
7″ Display kit
| Order No. | Description | Reference |
| 78911 | Displaykit suitable for all COM Carrier Boards and all COM Starterkits. Comprises 7.0" WVGA LCD with PCAP Touch Sensor and Touch Controller Includes all cables required to connect to COM Carrier Boards (LVDS, B/L & Touch) | MSC DIS-AM800480-070-KIT BRDFTX |
10.1″ Display kit
| Order No. | Description | Reference |
| 78879 | Displaykit suitable for all COM Carrier Boards and all COM Starterkits. Comprises 10.1" WVGA LCD with PCAP Touch Sensor and Touch Controller. Includes all cables required to connect to COM Carrier Boards (LVDS, B/L & Touch). | MSC DIS-AM1280800-101-KIT BRDFTX |
12.1″ Display kit
| Order No. | Description | Reference |
| 78880 | Displaykit suitable for all COM Carrier Boards and all COM Starterkits. Comprises 12.1" WVGA LCD with PCAP Touch Sensor and Touch Controller Includes all cables required to connect to COM Carrier Boards (LVDS, B/L & Touch) | MSC DIS-AM1280800-121-KIT BRDFTX |
