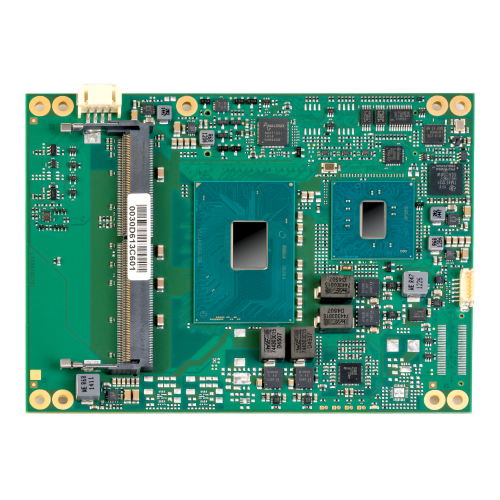

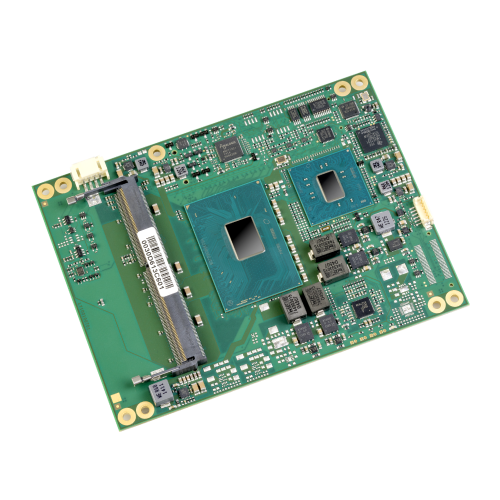

TRIA C6B-KLH

The TRIA C6B-KLH module is based on Intel‘s 7th generation Core processor family. The Intel two-chip solution allows highest performance in graphics and computing on a COM Express module in basic form factor.
The TRIA C6B-KLH offers triple independent display support with up to 4k x 2k resolution, highest level graphics acceleration and hardware based video en-/decoding. Fast DDR4 memory with optional error correction (ECC) and multiple USB 3.0/2.0 interfaces complete the compact and powerful module.
Different dual- and quad-core processors are supported by this design. Besides an extensive set of interfaces and features, the TRIA C6B-KLH optionally offers hardware based security compliant to the requirements of TCG (Trusted Computing Group).
The Type 6 pin-out allows direct access to the latest digital display interfaces like DisplayPort 1.3, HDMI 1.4b and DVI as well as up to four USB 3.0 interfaces supporting the fastest peripherals currently available.

Highlights

Intel® Core™ i7-7820EQ (quad-core, 3.0/3.7GHz, 45/35W cTDP),
Intel® Core™ i5-7440EQ (quad-core, 2.9/3.6GHz, 45/35W cTDP),
Intel® Core™ i5-7442EQ (quad-core, 2.1/2.9GHz, 25W TDP),
Intel® Core™ i3-7100E (dual-core, 2.9GHz, 35W TDP),
Intel® Core™ i3-7102E (dual-core, 2.1GHz, 25W TDP),
Intel® Xeon® E3-1505Mv6 (quad-core, 3.0/4.0GHz, 45/35W cTDP),
Intel® Xeon® E3-1505Lv6 (quad-core, 2.2/3.0GHz, 25W TDP)
Intel® HD Graphics 630, P630
Intel® chipsets QM175, HM175 or CM238
Up to 32GB DDR4-2400 SDRAM, dual channel (ECC optional)
Four SATA 6Gb/s mass storage interfaces
Three DisplayPort/HDMI/DVI interfaces
Embedded DisplayPort / LVDS (24 Bit, dual channel) interface
Triple independent display support
DirectX 12, OpenGL 4.4, OpenCL 2.x
Resolution up to 4096 x 2304
Eight PCI Express™ x1 lanes; PEG x16
Four USB 3.0/2.0 and four USB 2.0 interfaces
Trusted Platform Module
UEFI Firmware

Specifications

Technology	x86
Form Factor	COM Express Basic
CPU	Intel® Core™ i7-7820EQ (quad-core, 3.0/3.7GHz, 8MB cache, 45/35W cTDP), Intel® Core™ i5-7440EQ (quad-core, 2.9/3.6GHz, 6MB cache, 45/35W cTDP), Intel® Core™ i5-7442EQ (quad-core, 2.1/2.9GHz, 6MB cache, 25W TDP), Intel® Core™ i3-7100E (dual-core, 2.9GHz, 3MB cache, 35W TDP), Intel® Core™ i3-7102E (dual-core, 2.1GHz, 3MB cache, 25W TDP), Intel® Xeon® E3-1505Mv6 (quad-core, 3.0/4.0GHz, 8MB cache, 45/35W cTDP), Intel® Xeon® E3-1505Lv6 (quad-core, 2.2/3.0GHz, 8MB cache, 25W TDP) Intel® Technologies: Intel® vPro, Intel® 64, Intel® Virtualization Technology (VT-x), Intel® Virtualization Technology for Directed I/O (VT-d), Intel® Trusted Execution Technology, Intel® Adv. Encryption Standard AES-NI, Intel®Turbo Boost Technology 2.0 * not on all models
Chipset	Intel® Platform Controller Hubs (PCH) QM175, HM175 or CM238
RAM	2x 260-pin SO-DIMM socket for up to 2x 16GB DDR4 SDRAM (DDR4-2400) dual channel operation ECC option
Storage Interfaces	4x SATA channels (up to 6Gb/s)
USB	4x USB 3.0/2.0, 4x USB 2.0
Serial Interfaces	2x high-speed serial ports from PCH
Bus Interfaces	8x PCI Express x1 Gen 3, 1x PCI Express Graphics (PEG) x 16 Gen. 3 LPC bus (Low Pin Count bus no DMA support)
Display Controller	Integrated Intel HD graphics Gen. 9 3D Acceleration: DirectX® 11/12, OpenGL 4.3/4.4, OpenGL ES 2.0, OpenCL 2.x Video Decode: H.264 @ Level 5.2, H.265/HEVC 10-bit, MPEG2, VC1/WMV, JPEG, VP8, VP9 10-bit Video Encode: H.263, H.264, VP8, AVC JPEG, VP9 GPU-accelerated. Triple independent display support
Display Interfaces	Display Port and HDMI/DVI: 3x Digital Display Interface, usable as DisplayPort 1.2 (up to 4096 x 2304 @ 60Hz), also usable as HDMI 1.4b or DVI (up to 4096 x 2160 @ 30Hz) 1x Embedded DisplayPort 1.4 (on variants without LVDS only) 4096 x 2304 @ 60Hz LCD: LVDS 24bit, dual-channel (not on all variants) 1920 x 1200 @ 60Hz
Network Interface	10/100/1000Base-TX (integrated in PCH, Intel® i219LM PHY)
Audio Interface	High Definition Audio
Security Device	TPM 1.2
Miscellaneous	Watchdog Timer: Initiates system reset, programmable Fan Supply: 4-pin header for 12V CPU fan, PWM speed controlled and PWM speed control for system fan supported RTC battery: External System Monitoring: Voltage, temperature, CPU fan, system fan
Firmware	UEFI Firmware: AMI Aptio® V Security: TPM 1.2 support, TCG compliant Power Management: ACPI Active fan control USB: USB legacy support (keyboard, mouse, storage) Monitoring: System Monitoring Health Monitoring MSC Adv. Boot Device Selection: Boot device priority setting based on physical interfaces
OS Support	Windows 10 (embedded) BSP for Linux (Yocto) EAPI (HW Programming Interface)
Power Requirement	Voltage: +12V +/-10%, 5V Stby optional, Power Consumption: 35 W to 55 W (typ.)
Environment	Ambient Temperature 0° … 60°C (operating), -25° … 85°C (storage) Humidity: 5 … 95% (operating, non-condensing), 5 … 95% (storage, non-condensing)
Dimensions	125mm x 95mm x 13mm
Certificates	UL / CE

Order Info

Order No.

Description

Reference

Status

70288	COM Express Type 6 Basic module (125mm x 95mm) CPU: Intel Core i3-7102E, dual-core, 2.1GHz, 25W TDP Chipset: HM175 Graphics: integrated Intel HD Gen 9 (GT2) LVDS 3x DP/HDMI/DVI Ethernet: Intel i219 Gbit HD audio 4x SATA 4x USB3/2, 4x USB2 8x PCIe x1 Gen 3 PEG x16 Gen 3 2x socket for DDR4 SO-DIMM.	MSC C6B-KLH-7102E-NN0201C PCBFTX	OR
70304	COM Express Type 6 Basic module (125mm x 95mm) CPU: Intel Core i3-7100E, dual-core, 2.9GHz, 35W TDP Chipset: HM175 Graphics: integrated Intel HD Gen 9 (GT2) LVDS 3x DP/HDMI/DVI Ethernet: Intel i219 Gbit HD audio 4x SATA 4x USB3/2, 4x USB2 8x PCIe x1 Gen 3 PEG x16 Gen 3 2x socket for DDR4 SO-DIMM.	MSC C6B-KLH-7100E-NN0201C PCBFTX	OR
70296	COM Express Type 6 Basic module (125mm x 95mm) CPU: Intel Core i5-7442EQ, quad-core, 2.1/2.9GHz, 25W TDP Chipset: QM175 Graphics: integrated Intel HD Gen 9 (GT2) LVDS 3x DP/HDMI/DVI Ethernet: Intel i219 Gbit HD audio 4x SATA 4x USB3/2, 4x USB2 8x PCIe x1 Gen 3 PEG x16 Gen 3 2x socket for DDR4 SO-DIMM.	MSC C6B-KLH-7442EQ-NN0201C PCBFTX	OR
70298	COM Express Type 6 Basic module (125mm x 95mm) CPU: Intel Core i5-7440EQ, quad-core, 2.9/3.6GHz, 45W TDP Chipset: QM175 Graphics: integrated Intel HD Gen 9 (GT2) LVDS 3x DP/HDMI/DVI Ethernet: Intel i219 Gbit HD audio 4x SATA 4x USB3/2, 4x USB2 8x PCIe x1 Gen 3 PEG x16 Gen 3 2x socket for DDR4 SO-DIMM.	MSC C6B-KLH-7440EQ-NN0201C PCBFTX	OR
70292	COM Express Type 6 Basic module (125mm x 95mm) CPU: Intel Core i7-7820EQ, quad-core, 3.0/3.7GHz, 45W TDP Chipset: QM175 Graphics: integrated Intel HD Gen 9 (GT2) LVDS 3x DP/HDMI/DVI Ethernet: Intel i219 Gbit HD audio 4x SATA 4x USB3/2, 4x USB2 8x PCIe x1 Gen 3 PEG x16 Gen 3 2x socket for DDR4 SO-DIMM.	MSC C6B-KLH-7820EQ-NN0201C PCBFTX	PV
70284	COM Express Type 6 Basic module (125mm x 95mm) CPU: Intel Xeon E3-1505Lv6, quad-core, 2.2/3.0GHz, 25W TDP Chipset: CM238 Graphics: integrated Intel HD Gen 9 (GT2) LVDS 3x DP/HDMI/DVI Ethernet: Intel i219 Gbit HD audio 4x SATA 4x USB3/2, 4x USB2 8x PCIe x1 Gen 3 PEG x16 Gen 3 2x socket for DDR4 or DDR4ECC SO-DIMM.	MSC C6B-KLH-1505LV6-NN1201C PCBFTX	OR
70306	COM Express Type 6 Basic module (125mm x 95mm) CPU: Intel Xeon E3-1505Mv6, quad-core, 3.0/4.0GHz, 45W TDP, 35W cTDP Chipset: CM238 Graphics: integrated Intel HD Gen 9 (GT2) LVDS 3x DP/HDMI/DVI Ethernet: Intel i219 Gbit HD audio 4x SATA 4x USB3/2, 4x USB2 8x PCIe x1 Gen 3 PEG x16 Gen 3 2x socket for DDR4 or DDR4ECC SO-DIMM.	MSC C6B-KLH-1505MV6-NN1201C PCBFTX	PV
70302	COM Express Type 6 Basic module (125mm x 95mm) CPU: Intel Core i3-7102E, dual-core, 2.1GHz, 25W TDP Chipset: HM175 Graphics: integrated Intel HD Gen 9 (GT1) eDP 3x DP/HDMI/DVI Ethernet: Intel i219 Gbit HD audio 4x SATA 4x USB3/2, 4x USB2 8x PCIe x1 Gen 3 PEG x16 Gen 3 2x socket for DDR4 SO-DIMM.	MSC C6B-KLH-7102E-NN0101C PCBFTX	OR
70286	COM Express Type 6 Basic module (125mm x 95mm) CPU: Intel Core i3-7100E, dual-core, 2.9GHz, 35W TDP Chipset: HM175 Graphics: integrated Intel HD Gen 9 (GT2) eDP 3x DP/HDMI/DVI Ethernet: Intel i219 Gbit HD audio 4x SATA 4x USB3/2, 4x USB2 8x PCIe x1 Gen 3 PEG x16 Gen 3 2x socket for DDR4 SO-DIMM.	MSC C6B-KLH-7100E-NN0101C PCBFTX	PV
70290	COM Express Type 6 Basic module (125mm x 95mm) CPU: Intel Core i5-7442EQ, quad-core, 2.1/2.9GHz, 25W TDP Chipset: QM175 Graphics: integrated Intel HD Gen 9 (GT2) eDP 3x DP/HDMI/DVI Ethernet: Intel i219 Gbit HD audio 4x SATA 4x USB3/2, 4x USB2 8x PCIe x1 Gen 3 PEG x16 Gen 3 2x socket for DDR4 SO-DIMM.	MSC C6B-KLH-7442EQ-NN0101C PCBFTX	OR
70300	COM Express Type 6 Basic module (125mm x 95mm) CPU: Intel Core i5-7440EQ, quad-core, 2.9/3.6GHz, 45W TDP Chipset: QM175 Graphics: integrated Intel HD Gen 9 (GT2) eDP 3x DP/HDMI/DVI Ethernet: Intel i219 Gbit HD audio 4x SATA 4x USB3/2, 4x USB2 8x PCIe x1 Gen 3 PEG x16 Gen 3 2x socket for DDR4 SO-DIMM.	MSC C6B-KLH-7440EQ-NN0101C PCBFTX	PV
70294	COM Express Type 6 Basic module (125mm x 95mm) CPU: Intel Core i7-7820EQ, quad-core, 3.0/3.7GHz, 45W TDP Chipset: QM175 Graphics: integrated Intel HD Gen 9 (GT2) eDP 3x DP/HDMI/DVI Ethernet: Intel i219 Gbit HD audio 4x SATA 4x USB3/2, 4x USB2 8x PCIe x1 Gen 3 PEG x16 Gen 3 2x socket for DDR4 SO-DIMM.	MSC C6B-KLH-7820EQ-NN0101C PCBFTX	PV
70282	COM Express Type 6 Basic module (125mm x 95mm) CPU: Intel Xeon E3-1505Lv6, quad-core, 2.2/3.0GHz, 25W TDP Chipset: CM238 Graphics: integrated Intel HD Gen 9 (GT2) eDP 3x DP/HDMI/DVI Ethernet: Intel i219 Gbit HD audio 4x SATA 4x USB3/2, 4x USB2 8x PCIe x1 Gen 3 PEG x16 Gen 3 2x socket for DDR4 or DDR4ECC SO-DIMM.	MSC C6B-KLH-1505LV6-NN1101C PCBFTX	OR
70308	COM Express Type 6 Basic module (125mm x 95mm) CPU: Intel Xeon E3-1505Mv6, quad-core, 3.0/4.0GHz, 45W TDP, 35W cTDP Chipset: CM238 Graphics: integrated Intel HD Gen 9 (GT2) eDP 3x DP/HDMI/DVI Ethernet: Intel i219 Gbit HD audio 4x SATA 4x USB3/2, 4x USB2 8x PCIe x1 Gen 3 PEG x16 Gen 3 2x socket for DDR4 or DDR4ECC SO-DIMM.	MSC C6B-KLH-1505MV6-NN1101C PCBFTX	OR

Accessories

Carrier Options

Order No.

Description

Reference

67295	COM Express Type 6 Evaluation Carrier Board with PCI Express x4/x16 slot, USB 3.0/2.0, GbE, SATA, DisplayPort, eDP/LVDS, VGA and HD audio interfaces; Mini PCI Express socket, SD card slot, ATX power connector and single 12V power jack. Dimensions 170mm x 170mm (Mini-ITX form factor)	MSC C6-MB-EV-001 PCBFTX
41857	COM Express Type 6 Evaluation Carrier Board with various PCI Express x1, x4 and x16 slots, USB 3.0/2.0, GbE, SATA, DisplayPort, HDMI, LVDS, eDP, VGA, HD audio interfaces; mSATA and Mini PCI Express sockets, POST code display, ATX power connector. Dimensions 305 x 244 mm (ATX form factor)	MSC C6-MB-EVA PCBFTX

Cooling Options

Order No.

Description

Reference

1131080	Active Heatsink for C6B-SLH, C6B-KLH, C6B-CFLH and C6B-CFLR, consisting of a single-piece aluminum profile with fins, standoffs without thread (2.7mm inner diameter), screws and thermopads for the thermal contact to CPU and chipset. PWM fan 80x80x15mm.	MSC C6B-SLH-01 HSF-001
1131081	Passive Heatsink for C6B-SLH, C6B-KLH, C6B-CFLH and C6B-CFLR, consisting of a single-piece aluminum profile with fins, standoffs without thread (2.7mm inner diameter), screws and thermopads for the thermal contact to CPU and chipset.	MSC C6B-SLH-01 HSI-001
1131082	Heatspreader for C6B-SLH, C6B-KLH, C6B-CFLH and C6B-CFLR. Single-piece aluminum profile, standoffs without thread (2.7mm inner diameter), screws and thermopads for the thermal contact to CPU and chipset. No fan, no SO-DIMM cutout.	MSC C6B-SLH-01 HSP-001
1131083	Heatspreader for C6B-SLH, C6B-KLH, C6B-CFLH and C6B-CFLR. Single-piece aluminum profile, standoffs with M2.5 thread, screws and thermopads for the thermal contact to CPU and chipset. No fan, no SO-DIMM cutout.	MSC C6B-SLH-02 HSP-001

Memory Options

Order No.

Description

Reference

83002	4GB DDR4-2400 SoDimm, 1.2V	MOD SODIMM DDR4 4GBPC4-19200 CL17 1B
83003	4GB DDR4-2400 SoDimm, 1.2V, ECC	MOD SODIMM DDR4 4GBPC4-19200 CL17 1B
83001	8GB DDR4-2400 SoDimm, 1.2V, ECC	MOD SODIMM DDR4 8GBPC4-19200 CL17 1B
81883	8GB DDR4-2400 SoDimm, 1.2V	MOD SODIMM DDR4 8GBPC4-19200 CL17 2B

Starter Kits

Order No.

Description

Reference

68752

Starterkit for COM Express Type 6 modules MSC C6B-SLH with Intel 6th generation Core processors. Consists of Mini-ITX platform board, suitable Heatsink with fan and two DDR4 memory modules. Please order separately the COM Express C6B-SLH module of your choice.

MSC C6-SK-SLH-EV-KIT001 SETPAC
