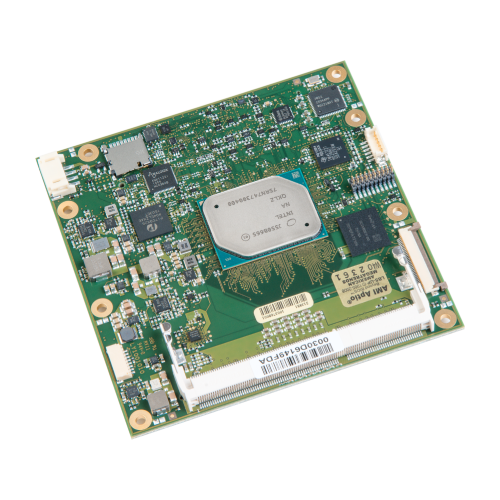

TRIA C6C-AL
The TRIA C6C-AL module is based on Intel‘s multi-core system-on-chip (SOC) Atom generation (codenamed “Apollo Lake”) that integrates Intel processor core, graphics, memory, and I/O interfaces into one solution. Based on 14nm processor technology this multi-core Atom processor provides outstanding computing and graphics power and is more power efficient compared to its predecessors. The TRIA C6C-AL brings triple independent display support, DirectX 12, fast DDR3L memory and four USB 3.0 on a compact, power saving and cost-efficient module. Different SOCs with dual- and quad-core processors are supported by this design. Besides an extensive set of interfaces and features, the TRIA C6C-AL optionally offers hardware based security compliant to the requirements of TCG (Trusted Computing Group).The Type 6 pin-out allows direct access to digital display interfaces like DisplayPort, HDMI 1.4b and DVI and provides USB 3.0/2.0 interfaces for connecting to peripheral USB devices. Supporting extended temperature range and long availability the modules are perfectly suited for modern IoT applications.
Highlights
- Intel Atom E3950 quad-core 1.6/2.0GHz, 12W
- Intel Atom E3940 quad-core 1.6/1.8GHz, 9.5W
- Intel Atom E3930 dual -core 1.3/1.8GHz, 6.5W
- Intel Pentium N4200 quad-core 1.1/2.5GHz, 6W
- Intel Celeron N3350 dual-core 1.1/2.4GHz, 6W
- Integrated Intel Gen. 9 HD Graphics
- Up to 8GB DDR3L SDRAM, dual-channel
- Two SATA 6Gb/s mass storage interfaces
- MicroSD card socket, eMMC option
- DisplayPort/HDMI/DVI interface
- LVDS/Embedded DisplayPort interface
- Three independent displays supported
- DirectX 12, OpenGL 4.3, OpenCL 2.0
- Dual MIPI-CSI (option)
- Four USB 3.0/2.0 and four USB 2.0 interfaces
- Two high-speed UARTs
- Up to five PCI Express™ x1 lanes
- UEFI Firmware
- Trusted Platform Module
- Extended temperature variants
Specifications
| Technology | x86 |
| Form Factor | COM Express Compact |
| CPU | Intel Atom E3950 quad-core 1.6/2.0GHz, 18 EU GFX, 12W Intel Atom E3940 quad-core 1.6/1.8GHz, 12 EU GFX, 9.5W Intel Atom E3930 dual-core 1.3/1.8GHz, 12 EU GFX, 6.5W Intel Pentium N4200 quad-core 1.1/2.5GHz, 18 EU GFX, 6W Intel Celeron N3350 dual-core 1.1/2.4GHz, 12 EU GFX, 6W |
| Chipset | SOC |
| RAM | 2x 204-pin SO-DIMM socket for up to 2x 4 GB (dual channel operation) or 1x 8 GB (single channel operation) DDR3L-1866 |
| Flash | MicroSD card socket eMMC option |
| Storage Interfaces | Up to 2x SATA 6Gb/s |
| USB | 4x USB 3.0/2.0, 4x USB 2.0 |
| Bus Interfaces | Up to 5x PCI Express x1, LPC bus (Low Pin Count bus no DMA support) |
| Display Controller | Integrated Intel HD graphics Gen. 9 Up to 18 execution units (EU) DirectX 12.0, OpenGL 4.3, OpenCL 2.0 Full Profile MPEG2, H.264 (L5.2), VC-1, WMV9, VP8, JPEG/MJPEG, H.265 (HEVC), VP9, MVC |
| Display Interfaces | Three independent displays supported: 2x Digital Display Interface (DP 1.2a (4096 x 2160 @ 60Hz), HDMI 1.4b (3840 x 2160 @ 30Hz) 1x Embedded DisplayPort 1.3 (on variants without LVDS only) 4096 x 2160 @ 60Hz, LVDS 24bit, dual-channel (not on all variants) 1920 x 1200 @ 60Hz |
| Network Interface | 10/100/1000Base-T (Intel i210) or 10/100/1000Base-T (Intel i225) Note: see product descriptions for supported network controller |
| Audio Interface | High Definition Audio |
| Security Device | TPM 2.0 |
| Miscellaneous | Watchdog Timer: Initiates system reset, programmable Fan Supply: 4-pin header for CPU fan, PWM speed controlled and PWM speed control for system fan supported RTC battery: external System Monitoring: voltage, temperature, CPU fan, system fan Dual MIPI-CSI (on feature connector, optional) |
| Feature Highlights | Type 6 pin-out |
| Firmware | AMI Aptio UEFI |
| OS Support | Windows 10 (embedded) BSP for Linux on request EAPI (HW Programming Interface) |
| Power Requirement | Wide range input +5 … +20V, 5V Stby optional, 7 W to 14 W (typ.) |
| Environment | Ambient Temperature 0° … 60°C (operating), -25° … 85°C (storage) Extended temp. variants: -40 ... +85°C (operating) Humidity: 5 … 95% (operating, non-condensing), 5 … 95% (storage, non-condensing) |
| Dimensions | 95mm x 95mm |
| Certificates | UL / CE |
| Cooling | Passive heat sink Active heat sink with fan Heat spreader with threaded or non-threaded standoffs |
| Carrier | Small carrier board (Mini-ITX) as part of a starter kit Evaluation board in ATX form factor |
Order Info
| Order No. | Description | Reference | Status |
| 69668 | COM Express Type 6 Compact module (95mm x 95mm) CPU: Intel Atom E3930 dual-core 1.3/1.8GHz, 12 EU GFX, 6W Graphics: integrated Intel HD Gen 9 2x DP/HDMI LVDS Ethernet: Intel i210 Gbit HD audio 2x SATA, 4x USB3, 4x USB2, 5x PCIe x1 TPM 2x socket for DDR3L SO-DIMM. -40...+85°C (recommended for 24/7 use cases) | MSC C6C-AL-E3930-NN261I PCBFTX | OR |
| 69670 | COM Express Type 6 Compact module (95mm x 95mm) CPU: Intel Atom E3940 quad-core 1.6/1.8GHz, 12 EU GFX, 9W Graphics: integrated Intel HD Gen 9 2x DP/HDMI LVDS Ethernet: Intel i210 Gbit HD audio 2x SATA, 4x USB3, 4x USB2, 5x PCIe x1 TPM 2x socket for DDR3L SO-DIMM. -40...+85°C (recommended for 24/7 use cases) | MSC C6C-AL-E3940-NN261I PCBFTX | OR |
| 85980 | COM Express Type 6 Compact module (95mm x 95mm) CPU: Intel Atom E3940 quad-core 1.6/1.8GHz, 12 EU GFX, 9W Graphics: integrated Intel HD Gen 9 2x DP/HDMI LVDS Ethernet: Intel i210 Gbit HD audio 2x SATA, 4x USB3/2, 4x USB2, 3x PCIe x1 TPM no microSD, no MIPI-CSI 2x socket for DDR3L SO-DIMM. -40...+85°C (recommended for 24/7 use cases) | MSC C6C-AL-E3940-NN201I PCBFTX | OR |
| 69672 | COM Express Type 6 Compact module (95mm x 95mm) CPU: Intel Atom E3950 quad-core 1.6/2.0GHz, 18 EU GFX, 12W Graphics: integrated Intel HD Gen 9 2x DP/HDMI LVDS Ethernet: Intel i210 Gbit HD audio 2x SATA, 4x USB3, 4x USB2, 5x PCIe x1 TPM 2x socket for DDR3L SO-DIMM. -40...+85°C (recommended for 24/7 use cases) | MSC C6C-AL-E3950-NN261I PCBFTX | OR |
| 86022 | COM Express Type 6 Compact module (95mm x 95mm) CPU: Intel Atom E3950 quad-core 1.6/2.0GHz, 18 EU GFX, 13W Graphics: integrated Intel HD Gen 9 2x DP/HDMI LVDS Ethernet: Intel i210 Gbit HD audio 2x SATA, 4x USB3/2, 4x USB2, 3x PCIe x1 TPM no microSD, no MIPI-CSI 2x socket for DDR3L SO-DIMM. -40...+85°C (recommended for 24/7 use cases) | MSC C6C-AL-E3950-NN201I PCBFTX | OR |
| 69640 | COM Express Type 6 Compact module (95mm x 95mm) CPU: Intel Celeron N3350 dual-core 1.1/2.3GHz, 12 EU GFX, 6W Graphics: integrated Intel HD Gen 9 2x DP/HDMI LVDS Ethernet: Intel i210 Gbit HD audio 2x SATA, 4x USB3, 4x USB2, 5x PCIe x1 TPM 2x socket for DDR3L SO-DIMM. | MSC C6C-AL-N3350E-NN261C PCBFTX | OR |
| 69662 | COM Express Type 6 Compact module (95mm x 95mm) CPU: Intel Pentium N4200 quad-core 1.1/2.5GHz, 18 EU GFX, 6W Graphics: integrated Intel HD Gen 9 2x DP/HDMI LVDS Ethernet: Intel i210 Gbit HD audio 2x SATA, 4x USB3, 4x USB2, 5x PCIe x1 TPM 2x socket for DDR3L SO-DIMM. | MSC C6C-AL-N4200E-NN261C PCBFTX | OR |
| 69674 | COM Express Type 6 Compact module (95mm x 95mm) CPU: Intel Atom E3930 dual-core 1.3/1.8GHz, 12 EU GFX, 6W Graphics: integrated Intel HD Gen 9 2x DP/HDMI eDP Ethernet: Intel i210 Gbit HD audio 2x SATA, 4x USB3, 4x USB2, 5x PCIe x1 TPM 2x socket for DDR3L SO-DIMM. -40...+85°C (recommended for 24/7 use cases) | MSC C6C-AL-E3930-NN161I PCBFTX | OR |
| 69676 | COM Express Type 6 Compact module (95mm x 95mm) CPU: Intel Atom E3940 quad-core 1.6/1.8GHz, 12 EU GFX, 9W Graphics: integrated Intel HD Gen 9 2x DP/HDMI eDP Ethernet: Intel i210 Gbit HD audio 2x SATA, 4x USB3, 4x USB2, 5x PCIe x1 TPM 2x socket for DDR3L SO-DIMM. -40...+85°C (recommended for 24/7 use cases) | MSC C6C-AL-E3940-NN161I PCBFTX | OR |
| 69678 | COM Express Type 6 Compact module (95mm x 95mm) CPU: Intel Atom E3950 quad-core 1.6/2.0GHz, 18 EU GFX, 12W Graphics: integrated Intel HD Gen 9 2x DP/HDMI eDP Ethernet: Intel i210 Gbit HD audio 2x SATA, 4x USB3, 4x USB2, 5x PCIe x1 TPM 2x socket for DDR3L SO-DIMM. -40...+85°C (recommended for 24/7 use cases) | MSC C6C-AL-E3950-NN161I PCBFTX | OR |
| 69664 | COM Express Type 6 Compact module (95mm x 95mm) CPU: Intel Celeron N3350 dual-core 1.1/2.3GHz Burst, 12 EU GFX, 6W Graphics: integrated Intel HD Gen 9 2x DP/HDMI eDP Ethernet: Intel i210 Gbit HD audio 2x SATA, 4x USB3, 4x USB2, 5x PCIe x1 TPM 2x socket for DDR3L SO-DIMM. | MSC C6C-AL-N3350E-NN161C PCBFTX | OR |
| 69666 | COM Express Type 6 Compact module (95mm x 95mm) CPU: Intel Pentium N4200 quad-core 1.1/2.5GHz, 18 EU GFX, 6W Graphics: integrated Intel HD Gen 9 2x DP/HDMI eDP Ethernet: Intel i210 Gbit HD audio 2x SATA, 4x USB3, 4x USB2, 5x PCIe x1 TPM 2x socket for DDR3L SO-DIMM. | MSC C6C-AL-N4200E-NN161C PCBFTX | OR |
| 91850 | COM Express Type 6 Compact module (95mm x 95mm) CPU: Intel Atom E3930 dual-core 1.3/1.8GHz, 12 EU GFX, 5.5W Graphics: integrated Intel HD Gen 9 2x DP/HDMI LVDS Ethernet: Intel i210 Gbit no +5V STDBY HD audio 2x SATA, 4x USB3/2, 4x USB2, 5x PCIe x1 TPM 2x socket for DDR3L SO-DIMM. -40...+85°C | MSC C6C-AL-E3930-NN2E1I PCBFTX | OR |
| 91862 | COM Express Type 6 Compact module (95mm x 95mm) CPU: Intel Atom E3940 quad-core 1.6/1.8GHz, 12 EU GFX, 9W Graphics: integrated Intel HD Gen 9 2x DP/HDMI LVDS Ethernet: Intel i210 Gbit no +5V STDBY HD audio 2x SATA, 4x USB3/2, 4x USB2, 5x PCIe x1 TPM 2x socket for DDR3L SO-DIMM. -40...+85°C | MSC C6C-AL-E3940-NN2E1I PCBFTX | OR |
| 91868 | COM Express Type 6 Compact module (95mm x 95mm) CPU: Intel Atom E3950 quad-core 1.6/2.0GHz, 18 EU GFX, 13W Graphics: integrated Intel HD Gen 9 2x DP/HDMI LVDS Ethernet: Intel i210 Gbit no +5V STDBY HD audio 2x SATA, 4x USB3/2, 4x USB2, 5x PCIe x1 TPM 2x socket for DDR3L SO-DIMM. -40...+85°C | MSC C6C-AL-E3950-NN2E1I PCBFTX | OR |
| 91864 | COM Express Type 6 Compact module (95mm x 95mm) CPU: Intel Atom E3950 quad-core 1.6/2.0GHz, 18 EU GFX, 13W Graphics: integrated Intel HD Gen 9 2x DP/HDMI eDP Ethernet: Intel i210 Gbit no +5V STDBY HD audio 2x SATA, 4x USB3/2, 4x USB2, 5x PCIe x1 TPM 2x socket for DDR3L SO-DIMM. -40...+85°C | MSC C6C-AL-E3950-NN1E1I PCBFTX | OR |
| 91866 | COM Express Type 6 Compact module (95mm x 95mm) CPU: Intel Atom E3950 quad-core 1.6/2.0GHz, 18 EU GFX, 13W Graphics: integrated Intel HD Gen 9 2x DP/HDMI LVDS Ethernet: Intel i210 Gbit no +5V STDBY HD audio 2x SATA, 4x USB3/2, 4x USB2, 3x PCIe x1 TPM no microSD, no MIPI-CSI 2x socket for DDR3L SO-DIMM. -40...+85°C | MSC C6C-AL-E3950-NN281I PCBFTX | OR |
| 95841 | COM Express Type 6 Compact module (95mm x 95mm) CPU: Intel Atom E3930 dual-core 1.3/1.8GHz, 12 EU GFX, 5.5W Graphics: integrated Intel HD Gen 9 2x DP/HDMI LVDS Ethernet: Intel i225 Gbit no +5V STDBY HD audio 2x SATA, 4x USB3/2, 4x USB2, 5x PCIe x1 TPM 2x socket for DDR3L SO-DIMM. -40...+85°C | MSC C6C-AL-E3930-NN2V1I PCBFTX | OR |
| 96003 | COM Express Type 6 Compact module (95mm x 95mm) CPU: Intel Atom E3940 quad-core 1.6/1.8GHz, 12 EU GFX, 9W Graphics: integrated Intel HD Gen 9 2x DP/HDMI LVDS Ethernet: Intel i225 Gbit no +5V STDBY HD audio 2x SATA, 4x USB3/2, 4x USB2, 5x PCIe x1 TPM 2x socket for DDR3L SO-DIMM. -40...+85°C | MSC C6C-AL-E3940-NN2V1I PCBFTX | OR |
| 96007 | COM Express Type 6 Compact module (95mm x 95mm) CPU: Intel Atom E3950 quad-core 1.6/2.0GHz, 18 EU GFX, 13W Graphics: integrated Intel HD Gen 9 2x DP/HDMI LVDS Ethernet: Intel i225 Gbit no +5V STDBY HD audio 2x SATA, 4x USB3/2, 4x USB2, 5x PCIe x1 TPM 2x socket for DDR3L SO-DIMM. -40...+85°C | MSC C6C-AL-E3950-NN2V1I PCBFTX | OR |
| 96005 | COM Express Type 6 Compact module (95mm x 95mm) CPU: Intel Atom E3950 quad-core 1.6/2.0GHz, 18 EU GFX, 13W Graphics: integrated Intel HD Gen 9 2x DP/HDMI LVDS Ethernet: Intel i225 Gbit no +5V STDBY HD audio 2x SATA, 4x USB3/2, 4x USB2, 3x PCIe x1 TPM no microSD, no MIPI-CSI 2x socket for DDR3L SO-DIMM. -40...+85°C | MSC C6C-AL-E3950-NN2P1I PCBFTX | OR |
Accessories
Carrier Options
| Order No. | Description | Reference |
| 67295 | COM Express Type 6 Evaluation Carrier Board with PCI Express x4/x16 slot, USB 3.0/2.0, GbE, SATA, DisplayPort, eDP/LVDS, VGA and HD audio interfaces; Mini PCI Express socket, SD card slot, ATX power connector and single 12V power jack. Dimensions 170mm x 170mm (Mini-ITX form factor) | MSC C6-MB-EV-001 PCBFTX |
| 41857 | COM Express Type 6 Evaluation Carrier Board with various PCI Express x1, x4 and x16 slots, USB 3.0/2.0, GbE, SATA, DisplayPort, HDMI, LVDS, eDP, VGA, HD audio interfaces; mSATA and Mini PCI Express sockets, POST code display, ATX power connector. Dimensions 305 x 244 mm (ATX form factor) | MSC C6-MB-EVA PCBFTX |
Cooling Options
| Order No. | Description | Reference |
| 1135097 | Active Heatsink for C6C-AL (Atom variants only), consisting of a single-piece aluminum profile with fins, standoffs without thread (2.7mm inner diameter), screws and thermopads for the thermal contact to SOC. PWM fan 80x80x15mm. | MSC C6C-AL-01 HSF-001 |
| 1135098 | Passive Heatsink for C6C-AL (Atom versions only), consisting of a single-piece aluminum profile with fins, standoffs without thread (2.7mm inner diameter), screws and thermopad for the thermal contact to SOC. | MSC C6C-AL-01 HSI-001 |
| 1135099 | Heatspreader for C6C-AL (Atom versions only). Single-piece aluminum profile with standoffs without thread (2.7mm inner diameter), screws and thermopad for the thermal contact to SOC. | MSC C6C-AL-01 HSP-001 |
| 1135205 | Active Heatsink for C6C-AL (Pentium/Celeron variants only), consisting of a single- piece aluminum profile with fins, standoffs without thread (2.7mm inner diameter), screws and thermopads for the thermal contact to SOC. PWM fan 80x80x15mm. | MSC C6C-AL-02 HSF-001 |
| 1135206 | Passive Heatsink for C6C-AL (Pentium/Celeron versions only), consisting of a single-piece aluminum profile with fins, standoffs without thread (2.7mm inner diameter), screws and thermopad for the thermal contact to SOC. | MSC C6C-AL-02 HSI-001 |
| 1135100 | Heatspreader for C6C-AL (Atom versions only). Single-piece aluminum profile with threaded standoffs (M2.5), screws and thermopad for the thermal contact to SOC. | MSC C6C-AL-02 HSP-001 |
| 1135207 | Heatspreader for C6C-AL (Pentium/Celeron versions only). Single-piece aluminum profile with standoffs without thread (2.7mm inner diameter), screws and thermopad for the thermal contact to SOC. | MSC C6C-AL-03 HSP-001 |
| 1135208 | Heatspreader for C6C-AL (Pentium/Celeron versions only). Single-piece aluminum profile with threaded standoffs (M2.5), screws and thermopad for the thermal contact to SOC. | MSC C6C-AL-04 HSP-001 |
Memory Options
| Order No. | Description | Reference |
| 79966 | 2GB SoDimm, DDR3L-1866, 256x8 based, sorting wide Temp | MOD SODIMM DDR3 2GB PC3-14900 CL13 1B |
| 73461 | 2GB SoDimm, DDR3L-1866, 256Mx8 based | MOD SODIMM DDR3 2GB PC3-14900 CL13 1B |
| 79964 | 4GB SoDimm, DDR3L-1866, 512Mx8 based, wide Temp. | MOD SODIMM DDR3 4GB PC3-14900 CL13 1B |
| 79967 | 4GB SoDimm, DDR3L-1866, 512x8 based, sorting wide Temp | MOD SODIMM DDR3 4GB PC3-14900 CL13 1B |
| 72004 | 4GB SoDimm, DDR3L-1866, 512Mx8 based | MOD SODIMM DDR3 4GB PC3-14900 CL13 1B |
| 79965 | 8GB SoDimm, DDR3L-1866, 512Mx8 based, wide Temp. | MOD SODIMM DDR3 8GB PC3-14900 CL13 2B |
| 79963 | 8GB SoDimm, DDR3L-1866, 512Mx8 based | MOD SODIMM DDR3 8GB PC3-14900 CL13 2B |
Starter Kits
| Order No. | Description | Reference |
| 70503 | COM Express Type 6 Starterkit for all C6C-AL modules; uses the C6-MB-EV platform for Type 6 modules in Mini-ITX format; includes 2x DDR3L memory modules, suitable Heatsinks for C6C-AL modules and 12V Power Supply with power cable. Please order separately the COM Express C6C-AL module of your choice. | MSC C6-SK-AL-EV-KIT001 |
