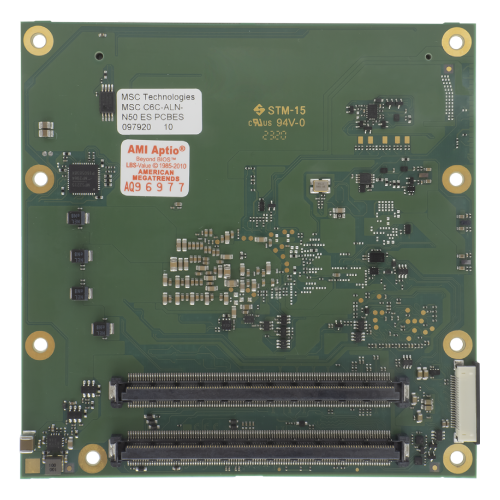

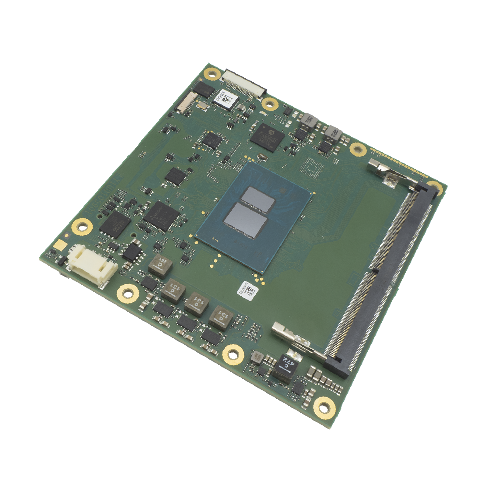

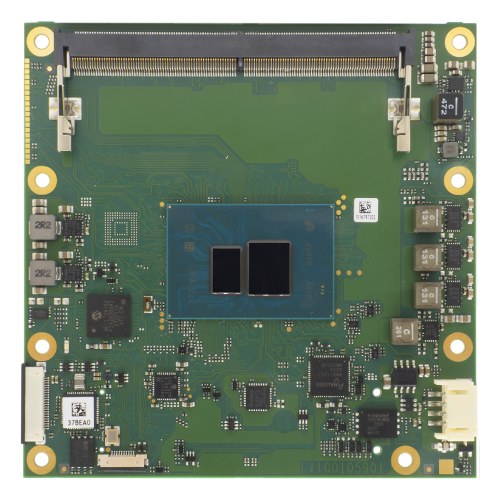

TRIA C6C-ALN

The TRIA C6C-ALN features the Intel® Atom® processors x7000E Series, Intel® Core ™i3 processor and Intel® Processors N Series. The CPU architecture is based on the same Efficient-cores and Intel® UHD graphics driven by Xe architecture as the 12th Gen Intel® Core™ processors, thus easing up application migration across Intel® CPU performance and power ranges. With support for up to eight processor cores, the module fits to a wide range of applications including point-of-sales terminals, digital signage controllers, HMI solutions and medical equipment.
The TRIA C6C-ALN can drive up to three independent displays with a maximum of 4k resolution. The COM Express Type 6 interface allows direct access to digital display interfaces including DisplayPort, HDMI, and the choice of LVDS versus eDP. With a maximum capacity of 16GB fast DDR5 memory the board satisfies even demanding applications. In-band ECC capability allows for protecting code and data kept in memory. High speed IO includes up to six PCIe Gen 3 lanes and up to four USB 3.1 interfaces. Mass storage is provided with the optional on-board eMMC memory and externally accessible via up to two SATA channels. The network interface based on Intel® i226 supports up to 2.5GbE bandwidth.
System investments are well protected through long-term availability of the module, designed, and manufactured by Tria Technologies. In addition, the COM Express standard enables performance scaling and migrating applications to future technology upgrades when they become available.
