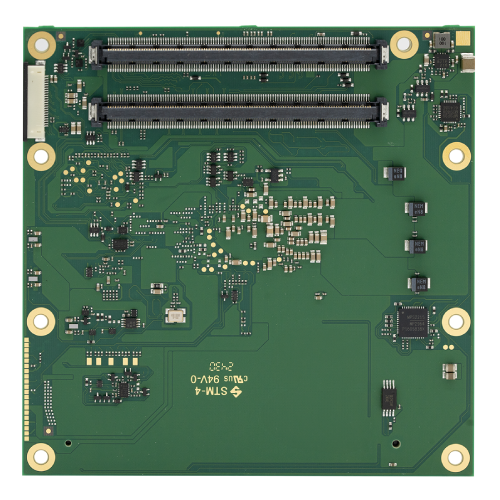

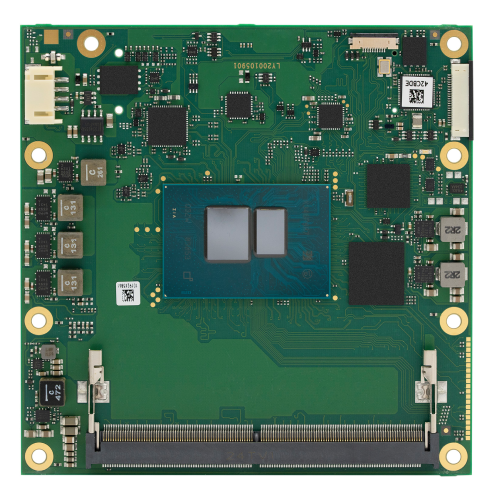

TRIA C6C-ASL
The TRIA C6C-ASL features the Intel® Atom® Processor x7000RE/C Series. With support for up to eight processor cores, the module fits to a wide range of applications including automation, point-of-sales terminals, digital signage controllers, HMI solutions and medical equipment. The board is ideal for system products that are exposed to harsh ambient conditions. It is designed for extended temperature range and 24/7 continuous operation.
The TRIA C6C-ASL can drive up to three independent displays with a maximum of 4k resolution. The COM Express Type 6 interface allows direct access to digital display interfaces including DisplayPort, HDMI, and a choice of LVDS versus eDP. With a maximum capacity of 16GB fast DDR5 memory the board satisfies even demanding applications. The In-band ECC capability protects code and data kept in memory. High speed IO includes four PCIe Gen 3 lanes and two USB 3.2 interfaces. Mass storage is provided with the optional on-board eMMC memory and externally accessible via two SATA channels. The network interface based on the Intel® i226 supports up to 2.5GbE bandwidth.
System investments are well protected through long-term availability of the module, designed, and manufactured by Tria Technologies. In addition, the COM Express standard enables performance scaling and migrating applications to future technology upgrades when they become available.
Highlights
- COM Express Type 6, Compact module
- Intel Atom® Processor x7000RE/C Series
- Up to eight processing cores, power efficient processors, TDP 6 to 15W
- Integrated Intel UHD graphics, max. 32 executing units
- Up to 16GB DDR5-4800 SDRAM, In-band ECC
- Two SATA 6Gb/s mass storage interfaces
- eMMC mass storage option
- DisplayPort/HDMI interface
- LVDS/Embedded DisplayPort interface
- Three independent displays supported
- Two USB 3.2 Gen2 (10Gb/s) and eight USB 2.0 ports
- Two UARTs
- Four PCI Express™ x1 lanes
- 1 / 2.5 Gb Ethernet port (Intel® i226)
- MIPI CSI camera interface
- TSN, TCC support
- UEFI Firmware
- Trusted Platform Module TPM 2.0
- Extended temperature range
- Long-term product availability
Specifications
| Technology | x86 |
| Form Factor | COM Express Compact |
| CPU | Intel Atom® x7835RE, eight-core, 1.3GHz, 32EU, TCC, 12W, IUC, ET Intel Atom® x7433RE, four-core, 1.5GHz, 32EU, TCC, 9W, IUC, ET Intel Atom® x7213RE, two-core, 2.0GHz, 16EU, TCC, 9W, IUC, ET Intel Atom® x7211RE, two-core, 1.0GHz, 16EU, TCC, 6W, IUC, ET Intel Atom® x7405C, quad-core, 2.2GHz, no GPU, TCC, 12W, EUC, CT Intel Atom® x7203C, dual-core, 2.0GHz, no GPU, TCC, 9W, EUC, CT Note: base frequency shown, other frequencies supported ET- Extended temperature CT- Commercial temperature EUC - Intel Embedded Use Conditions IUC - Intel Industrial Use Conditions |
| Chipset | SoC |
| RAM | 1x 262-pin SO-DIMM socket for up to 16 GB DDR5-4800 In-band ECC |
| Flash | On-board eMMC mass storage option, scalable capacity up to 256GB |
| Storage Interfaces | 2x SATA 6Gb/s |
| USB | 2x USB 3.2 Gen2 (10Gb/s) 8x USB 2.0 |
| Serial Interfaces | Two UARTS |
| Bus Interfaces | 4x PCI Express x1 Gen 3, up to 4 root ports LPC bus (Low Pin Count bus no DMA support) |
| Display Controller | Integrated Intel® UHD graphics Up to 32 execution units (EU) |
| Display Interfaces | Three independent displays supported: 2x Digital Display Interface (DP, HDMI) 1x Embedded DisplayPort (on variants without LVDS only) LVDS 24bit, dual-channel (not on all variants) max. 1920 x 1200 @ 60Hz Note: display interfaces are only available with the Intel Atom Processor x7000RE Series |
| Network Interface | 10/100/1000Base-TX, 2.5G¹ based on Intel i226-IT, with TSN support ¹ Available bandwidths depending on carrier design |
| Audio Interface | High Definition Audio |
| Security Device | TPM 2.0 |
| Miscellaneous | 2x MIPI CSI camera interface (optional) Watchdog Timer: Initiates system reset, programmable Fan Supply: 4-pin header for CPU fan, PWM speed controlled and PWM speed control for system fan supported RTC battery: external System Monitoring: voltage, temperature, CPU fan, system fan |
| Feature Highlights | Type 6 pin-out |
| Firmware | AMI Aptio UEFI |
| OS Support | Windows 11 IoT Enterprise LTSC 2024 Yocto Project (LTS kernel 2021) |
| Power Requirement | Wide range input +8.5 … +20V, 5V Stby optional, tbd W (typ.) |
| Environment | Ambient Temperature: 0° … 60°C (operating) -25° … 85°C (storage) Extended temp. variants: -40 ... +85°C (operating) Humidity: 5 … 95% (operating, non-condensing), 5 … 95% (storage, non-condensing) |
| Dimensions | 95mm x 95mm |
| Certificates | UL / CE |
| Cooling | Passive heat sink Active heat sink with fan Heat spreader with threaded or non-threaded standoffs |
| Carrier | Small carrier board (Mini-ITX) as part of a starter kit Evaluation board in ATX form factor |
Order Info
| Order No. | Description | Reference | Status |
| 114520 | COM Express Type 6 Compact module (95mm x 95mm) CPU: Intel Atom x7835RE 8C, 1.3GHz, 12W TDP Graphics: Intel® UHD Graphics 32 EUs 2x DP/HDMI 1x LVDS Ethernet: Intel i226-IT Gbit HD audio TPM 2.0 eMMC 32GB 2x SATA, 2x USB3, 8x USB2, 4x PCIe Gen 3, 2x CSI 1x socket for DDR5 SO-DIMM -40...+85°C (recommended for 24/7 operation) | MSC C6C-ASL-X7835RE-N52J1I PCBFTX | OR |
| 114522 | COM Express Type 6 Compact module (95mm x 95mm) CPU: Intel Atom x7835RE 8C, 1.3GHz, 12W TDP Graphics: Intel® UHD Graphics 32 EUs 2x DP/HDMI 1x LVDS Ethernet: Intel i226-IT Gbit HD audio TPM 2.0 2x SATA, 2x USB3, 8x USB2, 4x PCIe Gen 3 1x socket for DDR5 SO-DIMM -40...+85°C (recommended for 24/7 operation) | MSC C6C-ASL-X7835RE-NN231I PCBFTX | PV |
| 114524 | COM Express Type 6 Compact module (95mm x 95mm) CPU: Intel Atom x7433RE 4C, 1.5GHz, 9W TDP Graphics: Intel® UHD Graphics 32 EUs 2x DP/HDMI 1x LVDS Ethernet: Intel i226-IT Gbit HD audio TPM 2.0 2x SATA, 2x USB3, 8x USB2, 4x PCIe Gen 3 1x socket for DDR5 SO-DIMM -40...+85°C (recommended for 24/7 operation) | MSC C6C-ASL-X7433RE-NN231I PCBFTX | PV |
| 114526 | COM Express Type 6 Compact module (95mm x 95mm) CPU: Intel Atom x7213RE 2C, 2.0GHz, 9W TDP Graphics: Intel® UHD Graphics 16 EUs 2x DP/HDMI 1x LVDS Ethernet: Intel i226-IT Gbit HD audio TPM 2.0 2x SATA, 2x USB3, 8x USB2, 4x PCIe Gen 3 1x socket for DDR5 SO-DIMM -40...+85°C (recommended for 24/7 operation) | MSC C6C-ASL-X7213RE-NN231I PCBFTX | PV |
| 114528 | COM Express Type 6 Compact module (95mm x 95mm) CPU: Intel Atom x7211RE 2C, 1.0GHz, 6W TDP Graphics: Intel® UHD Graphics 16 EUs 2x DP/HDMI 1x LVDS Ethernet: Intel i226-IT Gbit HD audio TPM 2.0 2x SATA, 2x USB3, 8x USB2, 4x PCIe Gen 3 1x socket for DDR5 SO-DIMM -40...+85°C (recommended for 24/7 operation) | MSC C6C-ASL-X7211RE-NN231I PCBFTX | PV |
Accessories
Cooling Options
| Order No. | Description | Reference |
| 98715 | Passive Heatsink for C6C-ALN/ASL, consisting of a single-piece aluminumprofile with fins, standoffs without thread (2.7mm inner diameter), screwsand thermopad for the thermal contact to SOC. | MSC C6C-ALN-01 HSI-001 |
| 98716 | Heatspreader for C6C-ALN/ASL. Single-piece aluminum profile with standoffswithout thread (2.7mm inner diameter), screws and thermopad for the thermalcontact to SOC. | MSC C6C-ALN-01 HSP-001 |
| 98717 | Heatspreader for C6C-ALN/ASL. Single-piece aluminum profile with threadedstandoffs (M2.5), screws and thermopad for the thermal contact to SOC. | MSC C6C-ALN-02 HSP-001 |
| 79809 | Fan kit for Heatsink MSC HCA-ALP/RLP-0x HSI-xxx, MSC C6B-ALP/RLP-0x HSI-xxx, MSC C6B-TLH-0x HSI-xxx, MSC C6C-ALP/RLP-0xHSI-xxx, MSC C6C-TLU-0x HSI-xxx, MSC C6C-WLU-0x HSI-xxx, MSCC6C-ALN/ASL-0x HSI-xxx, MSC C6C-EL-0x HSI-xxx, MSC C6C-RYZx-0xHSI-xxx, PWM fan 80x80x15mm. | MSC C6C-FANKIT-01-HSF-001 |
