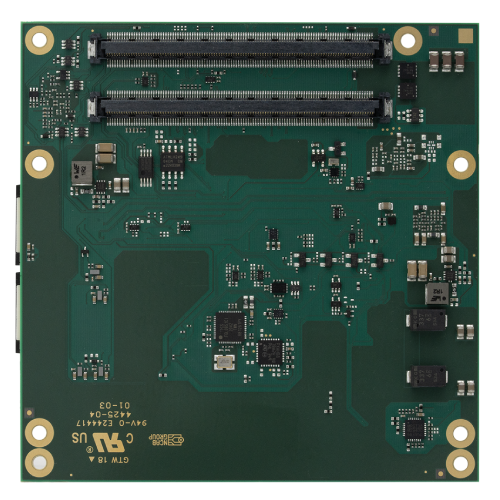

TRIA C6C-IQX

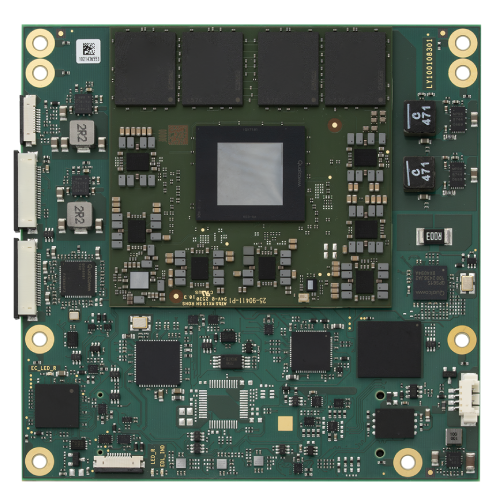

Qualcomm ModuleThe TRIA C6C-IQX COM Express module features the Qualcomm Dragonwing™ IQ-X processor family. This highly energy-efficient processor offers best-in-class performance per watt, making it an ideal platform for applications that require outstanding performance with low power consumption and minimal cooling measures. It combines the Qualcomm Oryon™ CPU with up to twelve cores, the Adreno™ GPU driving excellent graphics throughput, and the Hexagon™ NPU accelerating AI applications with up to 45 TOPS.
With its compact board size and rich IO interfaces, the module finds its place in automation, robotics, autonomous vehicles, medical appliances and other system installations that call for a space saving solution with compelling capabilities. Up to sixty-four GB main memory based on fast LPDDR5X technology, sixteen PCI Express lanes, multiple graphics outputs, USB ports and one network interface give system architects a lot of design flexibility.
System investments are well protected through long-term availability of the module, designed and manufactured by Tria Technologies. In addition, the COM Express standard enables performance scaling and migrating applications to future technology upgrades when they become available.
Highlights
- Dragonwing IQ-X Series
- Qualcomm Oryon™ CPU, up to twelve cores, scaleable performance
- Powerful Qualcomm® Adreno™ GPU
- Qualcomm® Hexagon™ NPU with 45 TOPS of AI performance
- LPDDR5X main memory, memory-down, up to 64GB
- Three DisplayPort interfaces
- LVDS / Embedded DisplayPort interface
- PCI Express® Gen 4, up to 1x8 + 1x4/2x2
- PCI Express® Gen 3, 2x1 + 1x2/1x1
- Up to two USB4, four USB 3.1/3.0 and eight USB 2.0 ports
- Two UARTs
- Up to 1TB on-board UFS Flash
- 1 / 2.5 Gb Ethernet port, TSN support
- Trusted Platform Module TPM 2.0
- COM Express Type 6, Compact
- Industrial temperature range, long-term product availability
Specifications
| Technology | Arm |
| Form Factor | COM Express Compact Type 6 |
| CPU | Dragonwing IQ-X Series IQX7181MD 12 core, 3.4GHz IQX5121MD 8 core, 3.4GHz Note: maximum core frequency shown |
| Chipset | Integrated into SoC |
| RAM | LPDDR5X memory, memory-down Capacity options: 16GB, 32GB, 64GB |
| Flash | Up to 1TB UFS, soldered (optional) |
| Storage Interfaces | UFS (onboard) NVME at PCI Express (carrier design dependent) |
| USB | Up to 2x USB4 Gen 2, mutually exclusive with DDI 1, 2 3x USB 3.0 & 1x USB 3.2 Gen 2 or 2x USB 3.2 Gen 2 (assembly option) 8x USB 2.0 Note: capabilities depending on carrier design |
| Serial Interfaces | 2x UART |
| Bus Interfaces | PCI Express® Gen 4, up to 1x8/(1x4) ¹ + 1x4/2x2 PCI Express® Gen 3, 2x1 + 1x2/1x1 ¹ SKU dependent |
| Display Controller | Adreno GPU, up to 1.5GHz |
| Display Interfaces | Up to 3x Digital Display Interface (DP 1.4b), DDI 1, 2 mutually exclusive with USB4 Up to two USB4/USB-C ports (DP tunneling) 1x Embedded DisplayPort 1.4b, mutually exclusive with LVDS 1x LVDS 24bit, dual-channel, mutually exclusive with eDP |
| Network Interface | 10/100/1000Base-TX, 2.5G² based on Qualcomm® QPS615, with TSN support ² Available bandwidths depending on carrier design |
| Audio Interface | SoundWire |
| Security Device | TPM 2.0 |
| Miscellaneous | Watchdog Timer: Initiates system reset, programmable Fan Supply: 4-pin header for CPU fan, PWM speed controlled and PWM speed control for system fan supported RTC battery: external System Monitoring: voltage, temperature, CPU fan, system fan |
| Firmware | UEFI boot |
| OS Support | Windows 11 IoT Enterprise LTSC |
| Power Requirement | Voltage: +8.5V to +18V, +5V Stby optional Power Consumption: tbd |
| Environment | Ambient Temperature: -40° … 85°C (operating) -25° … 85°C (storage) Humidity: 5 … 95% (operating, non-condensing), 5 … 95% (storage, non-condensing) |
| Dimensions | 95mm x 95mm |
Order Info
| Order No. | Description | Reference | Status |
| tbd | Contact Tria for ordering information | MSC C6C-IQX-xxxxx | OR |
Accessories
Carrier Options
| Order No. | Description | Reference |
| 111650 | COM Express Type 6 Evaluation Carrier Board with various PCI Express x1, x4 and x16 slots, USB 3.0/2.0, GbE, M.2, SD card socket, SATA, DisplayPort, LVDS, eDP, VGA, HD audio interfaces; ATX power connector. Dimensions 305 x 244 mm (ATX form factor) | MSC C6-MB-EV4 PCBFTX |
Cooling Options
| Order No. | Description | Reference |
| tbd | Contact Tria for ordering information | MSC C6C-IQX-Hxxxx |
| 79809 | Fan kit for Heatsink MSC HCA-ALP/RLP/MLH-0x HSI-xxx, MSC C6B-ALP/ RLP/MLH-0x HSI-xxx, MSC C6B-TLH-0x HSI-xxx, MSC C6C-ALP/RLP-0x HSI-xxx, MSC C6C-TLU-0x HSI-xxx, MSC C6C-WLU-0x HSI-xxx, MSC C6C- ALN/ASL-0x HSI-xxx, MSC C6C-EL-0x HSI-xxx, MSC C6C-RYZx-0x HSI-xxx, PWM fan 80x80x15mm. | MSC C6C-FANKIT-01- HSF-001 |
