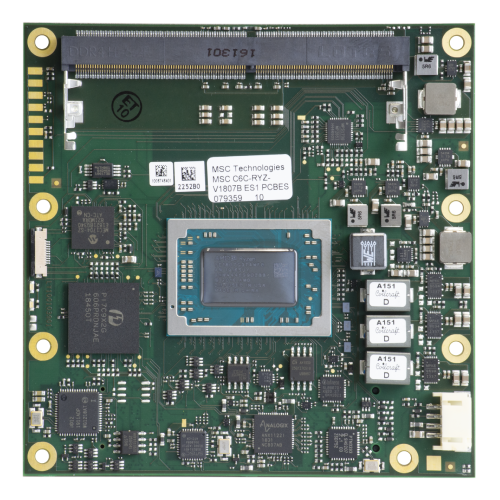

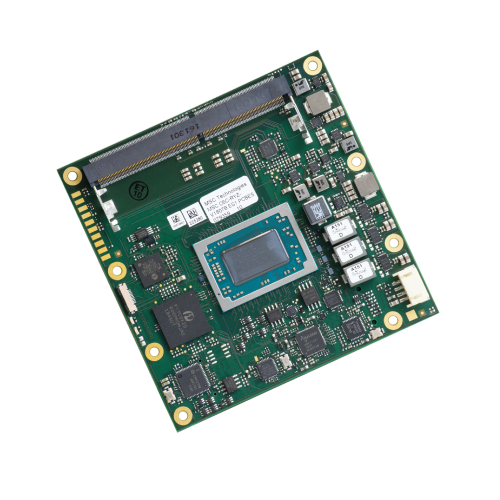

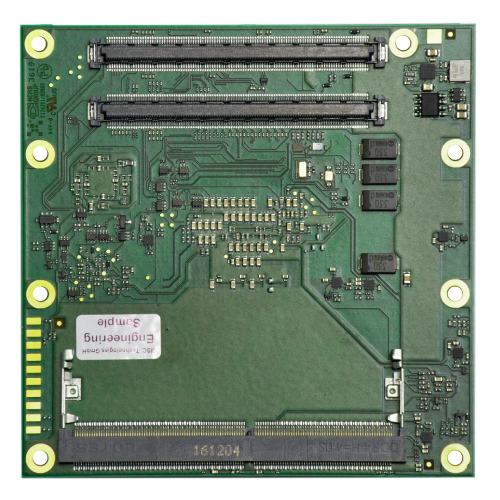

TRIA C6C-RYZ
The TRIA C6C-RYZ module is the embedded platform for the AMD RyzenTM Embedded V1000 and R1000 processor family. This versatile system-on-chip (SoC) technology combines processing, graphics and I/O functionality on a single die, allowing for outstanding compute performance in environments with constrained real-estate, power and cooling. Customers can choose from a variety of quad and dual-core processors to scale performance and capabilities according to application requirements. The board provides up to four independent display support with up to 4k resolution, highest level graphics acceleration and hardware based video en-/decoding. Fast DDR4 memory and multiple USB 3.1/2.0 interfaces complete the compact and power saving module. The TRIA C6C-RYZ offers hardware based security compliant to the requirements of TCG (Trusted Computing Group) and features TPM 2.0 capability. The Type 6 pin-out allows direct access to digital display interfaces like DisplayPort, HDMI 2.0b and DVI as well as up to four USB 3.1.
Highlights
- AMD RyzenTM Embedded V1807B, quad-core Processor (3.35/3.8GHz, 11 GPU CU, 35-54W TDP)
- AMD RyzenTM Embedded V1756B, quad-core Processor (3.25/3.6GHz, 8 GPU CU, 35-54W TDP)
- AMD RyzenTM Embedded V1605B, quad-core Processor (2.0/3.6GHz, 8 GPU CU, 12-25W TDP)
- AMD RyzenTM Embedded V1404I, quad-core
- Processor (2.0/3.6GHz, 8 GPU CU, 12-25W TDP),
- industrial temperature range
- AMD RyzenTM Embedded V1202B, dual-core Processor (2.3/3.2GHz, 3 GPU CU, 12-25W TDP)
- AMD RyzenTM Embedded R1606G, dual-core Processor (2.6/3.5GHz, 3 GPU CU, 12-25W TDP)
- AMD RyzenTM Embedded R1505G, dual-core Processor (2.4/3.3GHz, 3 GPU CU, 12-25W TDP)
- Up to 32 GB DDR4-3200 SDRAM, dual-channel, optional ECC
- Two SATA 6Gb/s mass storage interfaces
- Three DisplayPort/HDMI/DVI interfaces
- Embedded DisplayPort / LVDS (24 Bit, dual channel) interface
- Up to four independent displays supported
- DirectX 12, OpenGL 4.6, OpenCL 2.1
- Resolution up to 4096 x 2160
- Up to four USB 3.1/2.0 and four USB 2.0 interfaces
- Up to eight PCI Express™ x1 lanes
- PEG configurable up to 1×8 or 2×4
- Trusted Platform Module TPM 2.0
- UEFI Firmware
Specifications
| Technology | x86 |
| Form Factor | COM Express Compact |
| CPU | AMD RyzenTM Embedded V1807B, quad-core Processor, 3.35/3.8GHz, 2MB L2 / 4MB L3, 11 GPU CU, 45W (35-54W) TDP, max. DDR4-3200 AMD RyzenTM Embedded V1756B, quad-core Processor, 3.25/3.6GHz, 2MB L2 / 4MB L3, 8 GPU CU, 45W (35-54W) TDP, max. DDR4-3200 AMD RyzenTM Embedded V1605B, quad-core Processor, 2.0/3.6GHz, 2MB L2 / 4MB L3, 8 GPU CU, 15W (12-25W) TDP, max. DDR4-2400 AMD RyzenTM Embedded V1404I, quad-core Processor, 2.0/3.6GHz, 2MB L2 / 4MB L3, 8 GPU CU, 15W (12-25W) TDP, max. DDR4-2400, industrial temperature range AMD RyzenTM Embedded V1202B, dual-core Processor, 2.3/3.2GHz, 1MB L2 / 4MB L3, 3 GPU CU, 15W (12-25W) TDP, max. DDR4-2400 AMD RyzenTM Embedded R1606G, dual-core Processor, 2.6/3.5GHz, 1MB L2 / 4MB L3, 3 GPU CU, 15W (12-25W) TDP, max. DDR4-2400 AMD RyzenTM Embedded R1505G, dual-core Processor, 2.4/3.3GHz, 1MB L2 / 4MB L3, 3 GPU CU, 15W (12-25W) TDP, max. DDR4-2400 |
| Chipset | Integrated in System-on-Chip |
| RAM | 2x 260-pin SO-DIMM socket for up to 2x 16 GB DDR4 SDRAM (DDR4-3200 max) ECC option dual channel operation |
| Storage Interfaces | 2x SATA 6Gb/s |
| USB | Up to 4x USB 3.1/2.0, 4x USB 2.0 |
| Serial Interfaces | 2x serial ports |
| Bus Interfaces | PEG port max x8 (depending on processor variant) Up to four PCI Express x1 Gen3, up to four x1 Gen 2 (depending on processor and assembly variant) LPC bus (Low Pin Count bus) |
| Display Controller | GPU Vega core, up to 11 CUs Up to four independent displays supported (depending on processor variant) |
| Display Interfaces | Display Port and HDMI/DVI: Up to 3x Digital Display Interface, usable as DisplayPort 1.4 (up to 3840 x 2160 @ 120Hz, HBR3)¹, also usable as HDMI 2.0b (4096 x 2160 @ 60Hz)² or DVI (up to 1920 x 1200 @ 60Hz) ¹ Re-timer required for HBR3 support ² Re-timer required for operation above 3Gb/s 1x Embedded DisplayPort 1.3 (on variants without LVDS only) 3840 x 2160 @ 60Hz LCD: LVDS 24bit, dual-channel (not on all variants) 1920 x 1200 @ 60Hz |
| Network Interface | 10/100/1000Base-TX (Intel i210) |
| Audio Interface | High Definition Audio |
| Security Device | TPM 2.0 (optional) |
| Miscellaneous | Watchdog Timer: Initiates system reset, programmable Fan Supply: 4-pin header for CPU fan, PWM speed controlled and PWM speed control for system fan supported RTC battery: external System Monitoring: voltage, temperature, CPU fan, system fan |
| Feature Highlights | Type 6 pin-out |
| Firmware | UEFI Firmware: AMI Aptio® V Security: TPM 2.0 support, TCG compliant Power Management: ACPI Active fan control USB: USB legacy support (keyboard, mouse, storage) Monitoring: System Monitoring Health Monitoring Tria Adv. Boot Device Selection: Boot device priority setting based on physical interfaces |
| OS Support | Windows 10 IOT Enterprise (64-bit) Windows 10 Linux, Yocto |
| Power Requirement | Voltage: +12V primary power supply input, +5V Stby optional Power Consumption: 28 W to 64 W (typ., variant dependent) |
| Environment | Ambient Temperature 0° … 60°C (operating), -25° … 85°C (storage) Extended temp. variants: -40 ... +85°C (operating) Humidity: 5 … 95% (operating, non-condensing), 5 … 95% (storage, non-condensing) |
| Dimensions | 95mm x 95mm |
| Cooling | Passive heat sink Active heat sink with fan Heat spreader with threaded or non-threaded standoffs |
| Carrier | Evaluation/carrier board options |
Order Info
| Order No. | Description | Reference | Status |
| 83345 | COM Express Type 6 Compact module (95mm x 95mm) CPU: AMD Ryzen V1756B, four-core, 3.25/3.6GHz, 35-54W TDP, 8 CU 3x DP/HDMI/DVI, LVDS (24 Bit, dual channel) 1x 1GbE 2x SATA 3x USB3, 8x USB2 4x PCIe x1 Gen 3, 4x PCIe Gen 2, PEG x8 Gen 3 TPM 2.0 2x socket for DDR4 or DDR4ECC SO-DIMM DDR4-3200 0° … 60°C | MSC C6C-RYZ-V1756B-NN221C PCBFTX | OR |
| 83347 | COM Express Type 6 Compact module (95mm x 95mm) CPU: AMD Ryzen V1605B, four-core, 2.0/3.6GHz, 12-25W TDP, 8 CU 3x DP/HDMI/DVI, LVDS (24 Bit, dual channel) 1x 1GbE 2x SATA 3x USB3, 8x USB2 4x PCIe x1 Gen 3, 4x PCIe Gen 2, PEG x8 Gen 3 TPM 2.0 2x socket for DDR4 or DDR4ECC SO-DIMM DDR4-2400 0° … 60°C | MSC C6C-RYZ-V1605B-NN221C PCBFTX | PV |
| 83351 | COM Express Type 6 Compact module (95mm x 95mm) CPU: AMD Ryzen V1404I, four-core, 2.0/3.6GHz, 12-25W TDP, 8 CU 3x DP/HDMI/DVI, LVDS (24 Bit, dual channel) 1x 1GbE 2x SATA 3x USB3, 8x USB2 4x PCIe x1 Gen 3, 4x PCIe Gen 2, PEG x8 Gen 3 TPM 2.0 2x socket for DDR4 or DDR4ECC SO-DIMM DDR4-2400 -40° … 85°C | MSC C6C-RYZ-V1404I-NN221I PCBFTX | PV |
| 83349 | COM Express Type 6 Compact module (95mm x 95mm) CPU: AMD Ryzen V1202B, two-core, 2.3/3.2GHz, 12-25W TDP, 3 CU 3x DP/HDMI/DVI, Embedded DisplayPort (eDP) 1x 1GbE 2x SATA 3x USB3, 8x USB2 4x PCIe x1 Gen 3, 4x PCIe Gen 2, PEG x8 Gen 3 TPM 2.0 2x socket for DDR4 or DDR4ECC SO-DIMM DDR4-2400 0° … 60°C | MSC C6C-RYZ-V1202B-NN120C PCBFTX | OR |
| 83353 | COM Express Type 6 Compact module (95mm x 95mm) CPU: AMD Ryzen R1606G, two-core, 2.6/3.5GHz, 12-25W TDP, 3 CU 2x DP/HDMI/DVI, LVDS (24 Bit, dual channel) 1x 1GbE 2x SATA 3x USB3, 8x USB2 2x PCIe x1 Gen 3, 4x PCIe Gen 2, PEG x4 Gen 3 TPM 2.0 2x socket for DDR4 or DDR4ECC SO-DIMM DDR4-2400 0° … 60°C | MSC C6C-RYZ-R1606G-NN221C PCBFTX | PV |
| 83355 | COM Express Type 6 Compact module (95mm x 95mm) CPU: AMD Ryzen R1505G, two-core, 2.4/3.3GHz, 12-25W TDP, 3 CU 2x DP/HDMI/DVI, Embedded DisplayPort (eDP) 1x 1GbE 2x SATA 3x USB3, 8x USB2 2x PCIe x1 Gen 3, PEG x4 Gen 3 TPM 2.0 2x socket for DDR4 or DDR4ECC SO-DIMM DDR4-2400 0° … 60°C | MSC C6C-RYZ-R1505G-NN100C PCBFTX | OR |
| 76062 | COM Express Type 6 Compact module (95mm x 95mm) CPU: AMD Ryzen R1505G, two-core, 2.4/3.3GHz, 12-25W TDP, 3 CU 2x DP/HDMI/DVI, LVDS (24 Bit, dual channel) 1x 1GbE 2x SATA 3x USB3, 8x USB2 2x PCIe x1 Gen 3, 4x PCIe Gen 2, PEG x4 Gen 3 TPM 2.0 2x socket for DDR4 or DDR4ECC SO-DIMM DDR4-2400 0° … 60°C | MSC C6C-RYZ-R1505G-NN221C PCBFTX | OR |
Accessories
Cooling Options
| Order No. | Description | Reference |
| 79809 | Fan kit for Heatsink MSC HCA-ALP/RLP-0x HSI-xxx, MSC C6B-ALP/ RLP-0x HSI-xxx, MSC C6B-TLH-0x HSI-xxx, MSC C6C-ALP/RLP-0x HSI-xxx, MSC C6C-TLU-0x HSI-xxx, MSC C6C-WLU-0x HSI-xxx, MSC C6C-ALN-0x HSI-xxx, MSC C6C-EL-0x HSI-xxx, MSC C6C-RYZ-0x HSI-xxx, PWM fan 80x80x15mm. | MSC C6C-FANKIT-01-HSF-001 |
| 84613 | Heatsink for C6C-RYZ, C6C-RYZ2. Single-piece aluminum profile, standoffs without thread (2.7mm inner diameter), screws and thermopad for the thermal contact to SOC. | MSC C6C-RYZ-01 HSI-001 |
| 79792 | Heatsink / heat pipe for C6C-RYZ, C6C-RYZ2. Single-piece aluminum profile with embedded heat pipe, standoffs without thread (2.7mm inner diameter), screws and thermopad for the thermal contact to SOC. | MSC C6C-RYZ-01 HSI-HP-001 |
| 83859 | Heatspreader for C6C-RYZ, C6C-RYZ2. Single-piece aluminum profile, standoffs without thread (2.7mm inner diameter), screws and thermopad for the thermal contact to SOC. | MSC C6C-RYZ-01 HSP-001 |
| 79793 | Heatspreader / heat pipe for C6C-RYZ, C6C-RYZ2. Single-piece aluminum profile with embedded heat pipe, standoffs without thread (2.7mm inner diameter), screws and thermopad for the thermal contact to SOC. | MSC C6C-RYZ-01 HSP-HP-001 |
| 83881 | Heatspreader for C6C-RYZ, C6C-RYZ2. Single-piece aluminum profile, threaded standoffs (M2.5), screws and thermopad for the thermal contact to SOC. | MSC C6C-RYZ-02 HSP-001 |
| 83860 | Heatspreader / heat pipe for C6C-RYZ, C6C-RYZ2. Single-piece aluminum profile with embedded heat pipe, threaded standoffs (M2.5), screws and thermopad for the thermal contact to SOC. | MSC C6C-RYZ-02 HSP-HP-001 |
| 79809 | Fan kit for Heatsink MSC HCA-ALP/RLP/MLH-0x HSI-xxx, MSC C6B-ALP/ RLP/MLH-0x HSI-xxx, MSC C6B-TLH-0x HSI-xxx, MSC C6C-ALP/RLP-0x HSI-xxx, MSC C6C-TLU-0x HSI-xxx, MSC C6C-WLU-0x HSI-xxx, MSC C6CALN/ ASL-0x HSI-xxx, MSC C6C-EL-0x HSI-xxx, MSC C6C-RYZx-0x HSI-xxx, PWM fan 80x80x15mm. | MSC C6C-FANKIT-01- HSF-001 |
Memory Options
| Order No. | Description | Reference |
| Please contact your Tria Technologies representative for information on supported memory options. |
