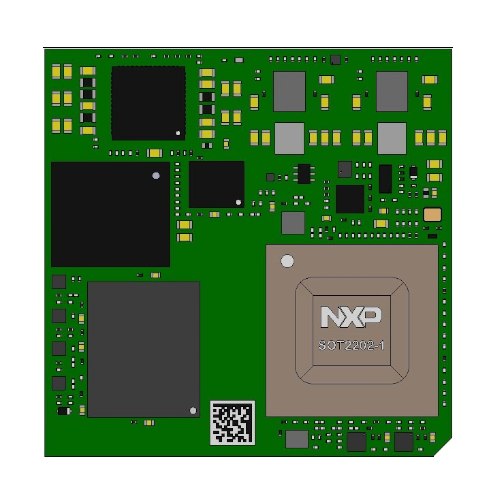

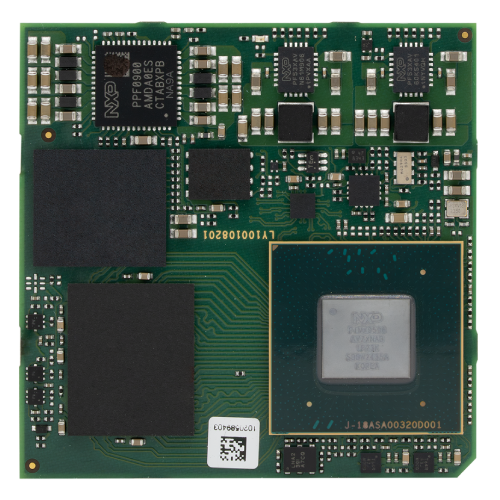

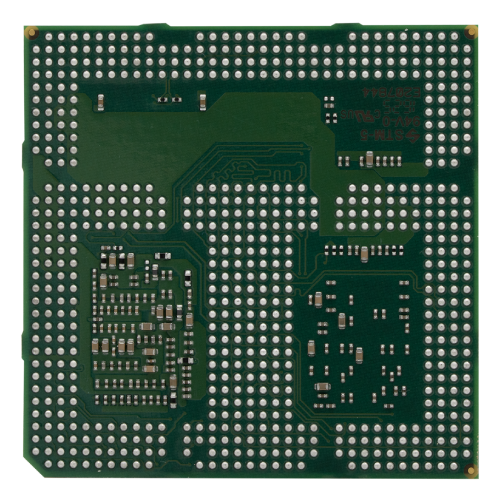

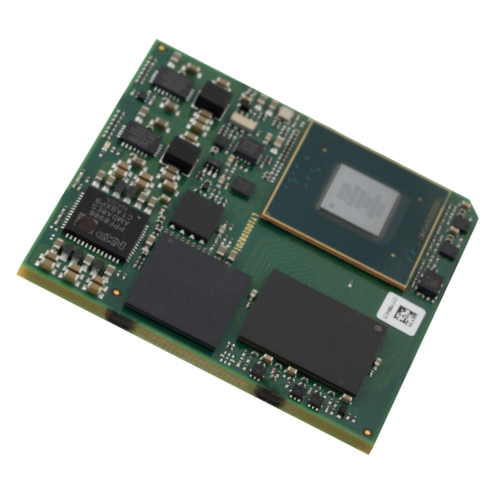

TRIA OSM-LF-IMX95
The TRIA OSM-LF-IMX95 is based on the new OSM 1.2 standard (Size-L) “Large” for completely machine processible low-cost embedded computer modules during soldering, assembly and testing.
Highly scalable and equipped with i.MX 95 Series Applications Processors, manufactured by NXP. The processors integrates up to six Arm Cortex-A55 cores, dedicated Arm Cortex-M7 and M33 Real-Time Processors, immersive Arm Mali™ GPU, 4K capable VPU combined with Edgelock® secure enclave security. The i.MX 95 family is the first i.MX applications processor family to integrate NXP’s eIQ® Neutron neural processing unit (NPU) and a new image signal processor (ISP) developed by NXP, helping developers to build powerful, next-generation edge platforms.
TRIA OSM-LF-IMX95 provides fast LPDDR5 memory technology with inline ECC support, combined with up to 256GB eMMC Flash memory and high speed interfaces such as SerDes Interface (up to 10G Ethernet), Dual RGMII interface (1G Ethernet), USB 3.0 and PCI Express Gen. 3. Various standard interfaces for embedded applications such as CAN-FD, dual-channel LVDS, MIPI DSI and MIPI CSI for connecting cameras are available.
The module is compliant with the new OSM 1.2 standard (OSM-LF). For evaluation and design-in of the new OSM-LF-IMX95 module, TRIA provides a development platform and a starter kit. A Yocto based Linux Board Support Package is available (Android 12 and Windows 10 IoT Enterprise support on request).
Highlights
- Hexa core Arm Cortex-A55 up to 2.0GHz
- ARM Cortex-M7 Real Time Processor at 800MHz
- Arm Cortex-M33 Real Time Processor at 333MHz
- NXP eIQ Neutron Neural Processing Unit.
- NXP Image Signal Processor
- Arm Mali Graphics Processing Unit
- Video Processing Unit up to 4k decode/encode
- Up to 16GB LPDDR5 SDRAM with inline ECC
- Up to 256GB eMMC Flash
- Dual-channel LVDS / MIPI-DSI x4
- Dual MIPI CSI-2 Camera interface
- 2x PCI Express x1 Gen. 3
- 1x USB 3.0/2.0 Host/Device interface
- 1x USB 2.0 Host/Device interface
- 2x Gigabit Ethernet (RGMII)
- 2.5 Gigabit Ethernet (SGMII)
- 2x SDIO interface
- 3x CAN-FD Interface
- 2x I2S Audio Interface
- 24x GPIO, 6x ADC, 4x PWM
- UART, SPI, QSPI, I2C
Specifications
| Technology | ARM |
| Form Factor | OSM-LF, 662 Pin, RM 1,25 mm |
| CPU | NXP i.MX 95 Arm Cortex-A55 Applications Processor 6/4 cores, 1.8 - 2.0 GHz, with ISP, NPU, GPU, VPU, DC, dual-core option* 6/4 cores, 1.8 - 2.0 GHz, with ISP, NPU, VPU 6/4 cores, 1.8 - 2.0 GHz, with NPU, GPU, VPU, DC 6/4 cores, 1.8 - 2.0 GHz, with NPU, dual-core option *dual-core part available in commercial temperature and 1.0 GHz Arm Cortex-M7 Real Time Processor at 800MHz Arm Cortex-M33 Real Time Processor at 333MHz NXP eIQ Neutron Neural Processing Unit (processor SKU dependent) NXP Image Signal Processor (processor SKU dependent) |
| Chipset | SOC |
| RAM | Up to 16GB 6400MT/s LPDDR5 SDRAM, soldered, inline ECC support |
| Flash | Up to 256GB eMMC 5.1 Flash QSPI NOR/NAND Flash (optional) |
| Storage Interfaces | 2x MMC/SD/SDIO |
| USB | 1x USB 2.0 Host/Client, 1x USB 2.0 Host/Client or 1x USB 3.0 Host/Client |
| Serial Interfaces | 3x UART Console with Rx, Tx only 2x UART with 2-wire hand shake (RTS/CTS) |
| Bus Interfaces | 2x PCI Express x1 Gen.3 lane 5x I2C up to 400 Kbit/s (2x for GP) 2x CAN-FD / CAN 2.0B 1x CAN-FD / CAN 2.0B on vendor defined pins 1x SPI (with two chip selects) 1x QSPI/SPI (with two chip selects) |
| Display Controller | Arm Mali G310 GPU (OpenGL® ES 3.2, Vulkan®1.2, OpenCL 3.0), (processor SKU dependent) Video Processing Unit with up to 4k decode/encode (processor SKU dependent) |
| Display Interfaces | MIPI-DSI Display Interface, 4 lanes, up to 13840x1440p60 Dual-channel 18/24 bit LVDS interface, up to 1080p60 |
| Network Interface | 2x Gigabit Ethernet (RGMII interface) 1x 2.5 Gigabit Ethernet (SGMII interface) with TSN support |
| Audio Interface | 2x I2S Audio |
| Security Device | Advanced Security, Safety, and Reliability integrated in the SOC Integrated EdgeLock secure enclave to simplify implementation of security critical functions like secure boot, cryptography, trust provisioning, run-time attestation, key management services, provision for secure remote management, secure over-the-air updates (OTA) and dedicated cryptographic engine. |
| Miscellaneous | Watchdog Timer for system reset (programmable, 1s … 600s) Temperature compensated RTC 24x GPIO, configurable as input or output 4x PWM 2x ADC inputs (12-bit) 4x ADC inputs (12-bit) on vendor defined pins 64kbit ID EEPROM on I2C bus MIPI CSI-2 camera interface (CSIA, 4-lane) MIPI CSI-2 camera interface (CSIB, 4-lane), shared with MIPI-DSI interface |
| Feature Highlights | OSM V1.2, Size-L compatible |
| OS Support | Linux Board Support Package Android and Windows 10 IoT Enterprise support on request |
| Power Requirement | Power Supply +5V +/-5% Power Consumption 4-6 W typ. (depending on CPU) |
| Environment | Temperature Range: Commercial: 0° … 70°C (operating) -20° … 85°C (storage) Extended: -25° … 85°C (operating) -40° … 85°C (storage) Industrial: -40° … 85°C (operating) -40° … 85°C (storage) Humidity: 5 … 95% (operating, non condensing) 5 … 95% (storage, non-condensing) |
| Dimensions | 45 x 45 mm |
| Certificates | UL /CE |
| Carrier | TRIA OSM-VB-95 |
Order Info
| Order No. | Description | Reference | Status |
116760 | OSM 1.2 module based on NXP i.MX 9596, Hexa Core Cortex-A55 processor at 2.0GHz, NPU, ISP, 8GB LPDDR5, 32MBit QSPI, 32GB eMMC Flash, 2x RGMII, 1x SGMII (2.5G), 2x PCIe, 1x USB3.0 (OTG), 1x USB2.0 (OTG), LVDS, MIPI-DSI, MIPI CSI-2 Camera input (CSI_A), industrial temperature -40...+85°C | MSC OSM-LF-IMX95-HC9-35N0A00I ES1 PCBES | OR |
116755 | OSM 1.2 module based on NXP i.MX 9596, Hexa Core Cortex-A55 processor at 2.0GHz, NPU, ISP, 2GB LPDDR5, 8GB eMMC Flash, 2x RGMII, 2x PCIe, 2x USB2.0 (OTG), LVDS, MIPI-DSI, MIPI CSI-2 Camera input (CSI_A), industrial temperature -40...+85°C | MSC OSM-LF-IMX95-HC9-13N0A00I ES1 PCBES | OR |
