Vision AI-KIT 6490 Camera Accessory

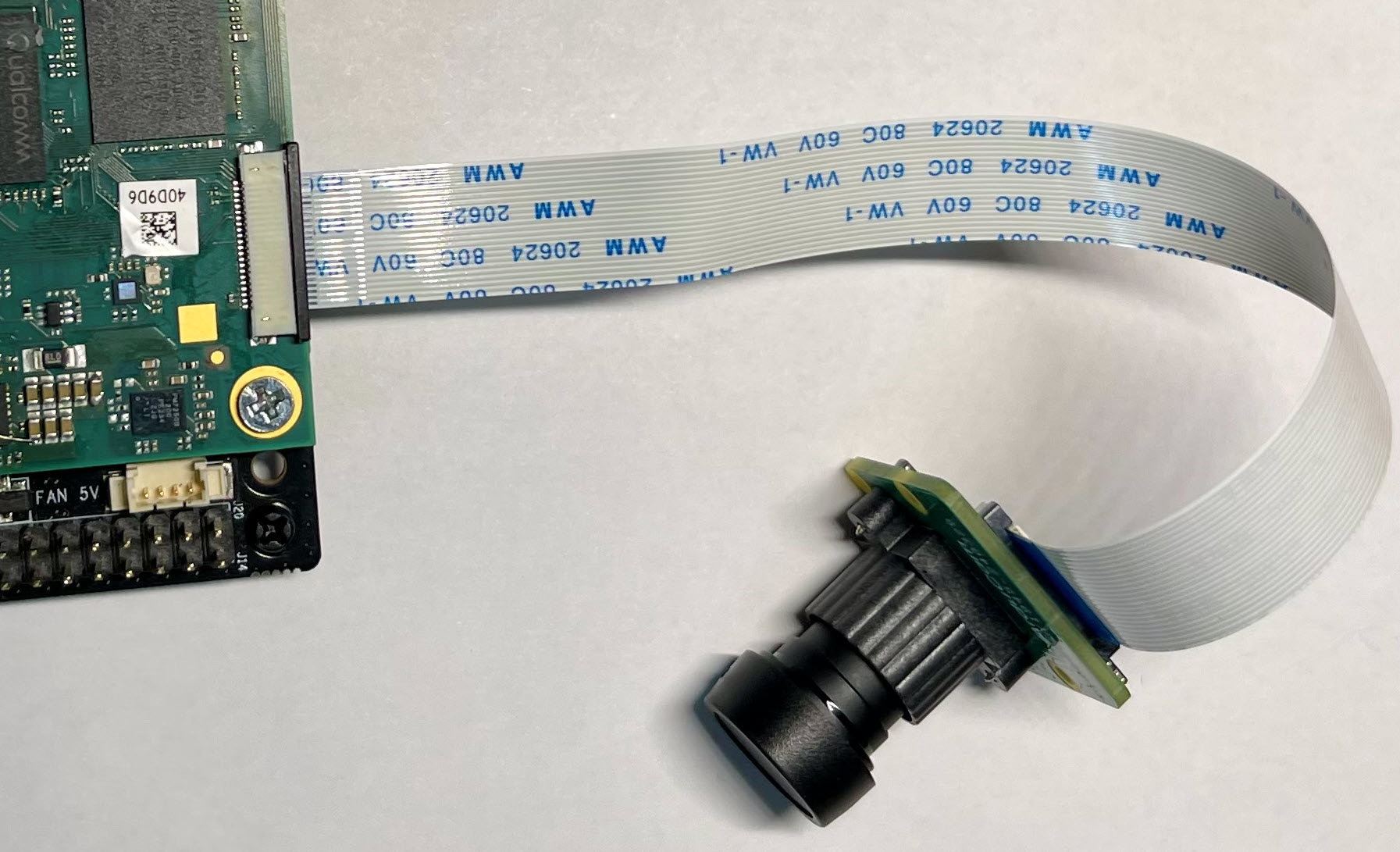

The INV-IMX577-12MP camera module is based on the Sony IMX577 color CMOS 12-megapixel image sensor with M12 mount lens. The IMX577 image sensor is a diagonal 7.857mm (Type 1/2.3) 12.3MP CMOS active pixel Type stacked image sensor with a square pixel array. The IMX577 adopts Sony's Stacked CMOS Image Sensor technology to achieve high speed image capturing by column parallel A/D converter circuits and high sensitivity and low noise image (comparing with conventional

CMOS image sensor) through the backside illuminated imaging pixel structure. R, G, and B pigment primary color mosaic filter is employed. It equips an electronic shutter with variable integration time. It operates with three power supply voltages: analog 2.8 V, digital 1.05 V and 1.8 V for input/output interface and achieves low power consumption.

The Vision AI-KIT 6490 Camera Accessory is expected to ship late summer, 2025.
