XRF16 Xilinx RFSoC Gen3 System-On-Module

Avnet XRF16™ RFSoC System-on-Modules are designed for integration into deployed RF systems demanding small footprint, low power and real-time processing. The XRF16 features an AMD Zynq® UltraScale+™ RFSoC with direct RF sampling dataconverters and up to 6 GHz RF bandwidth.

Combine the production-ready XRF16 module with the XRF16 Carrier Card and Avalon™ software suite to jump-start proof-of-concept and application development. Then deploy your system with the same XRF16 module used for proof-of-concept. Example code and tutorials demonstrate AMD RFSoC multitile sync (multi-converter sync) and multi-board synchronized analog capture.

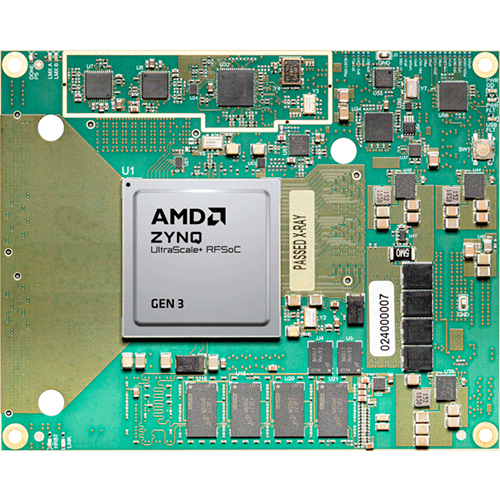

The XRF16 Gen3 module features a 3rd generation AMD Zynq® UltraScale+™ RFSoC (ZU49DR), with 16 RF-ADC, 16 RF-DAC channels and 6 GHz RF bandwidth.

Highlights

Target Applications:

  • Phased Array Radar
  • 5G Massive MIMO
  • Hybrid Beamforming
  • Signal Detection & Jamming
  • Medical Imaging

Key Features:

  • 16x RF-ADC and RF-DAC direct RF sampling data converters
  • 14-bit 2.50 GSPS ADCs | 14-bit 9.850 GSPS DACs (10GSPS available)
  • 4x AMD GTR transceivers for 1 GbE, PCIe, SATA, USB3
  • Ultra-low jitter programmable sampling clocks
  • Phase coherent synchronous sampling across all converters & multiple boards
  • Quad Mesh™ firmware combines AMD Aurora protocol with 16x GTY transceivers to stream data with four peers, facilitating tiling in high performance real-time systems
  • Made in the USA

Kit Includes:

  • XRF16 System-on-Module
  • XRF Avalon™ Software

Specifications

TechnologyAMD Adaptive SoCs
Dimensions101.6mm x 127mm (4.0 in x 5.0 in)
CPUQuad Arm Cortex-A53 and Dual Arm Cortex-R5F
ChipsetAMD Zynq UltraScale+ RFSoC (XCZU49DR)
RAMPS-DDR4 4GB
PL-DDR4 4GB
Flash128 MB QSPI
Memory32 GB eMMC
USBUSB 2.0
Serial InterfacesUSB (UART/JTAG)
Bus Interfaces16x ultra-fast AMD GTY serial transceivers
PCI ExpressYes
Network Interface1GbE
FirmwareXRF Avalon™
OS SupportPetaLinux

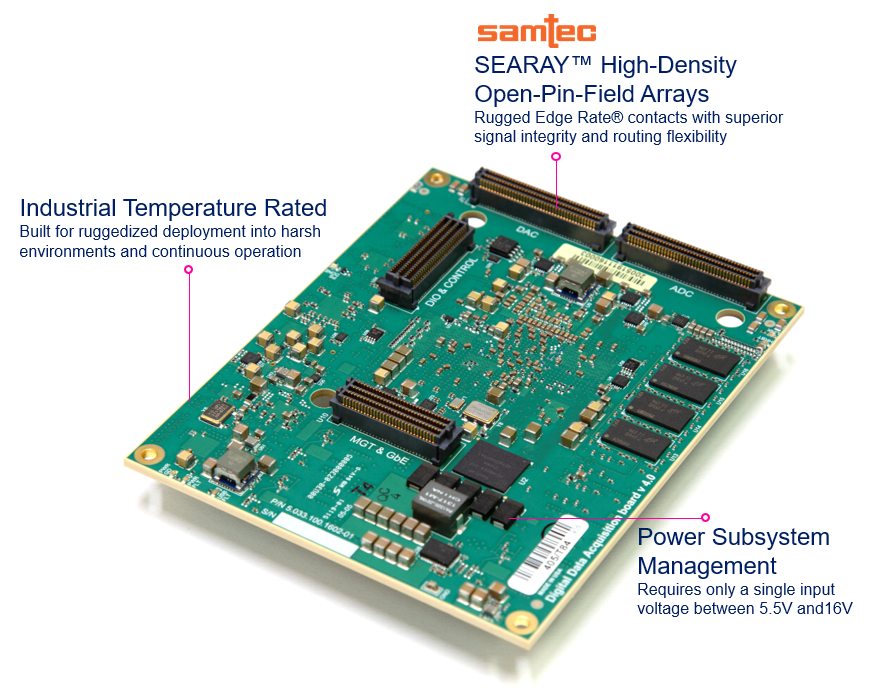

Power Requirement5.5V to 16V input
EnvironmentIndustrial
CoolingPassive or Active Heatsink required
CarrierXRF16 Carrier Card

Order Info

Part No
Description
Americas (Newark)
EMEA (Farnell)
APAC (Element14)
AES-XRF16-ZU49-G
XRF16 AMD RFSoC System-on-Module 16-Channel / Gen-3 / 6GHz
Buy at Newark
Buy at Farnell
No link available
