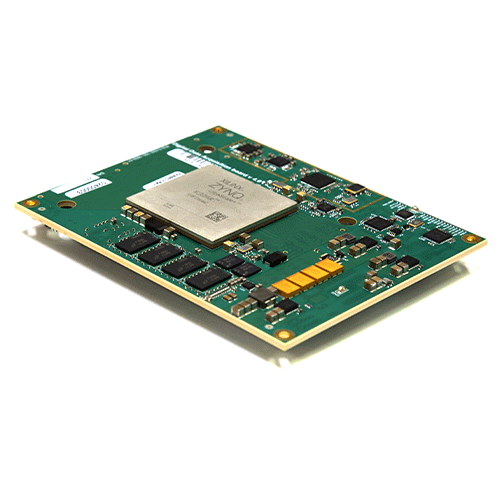

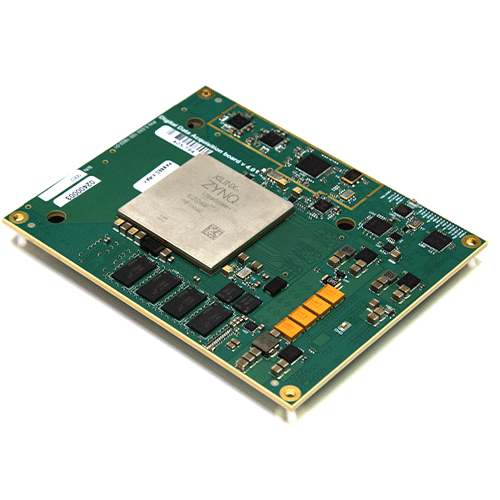

XRF8 Xilinx RFSoC Gen3 System-On-Module
The Avnet XRF8™ RFSoC System-on-Module is designed for integration into deployed RF systems demanding small footprint, low power and real-time processing. The XRF8 features the AMD Xilinx Zynq® UltraScale+™ RFSoC Gen3 ZU47DR, with 8 RF-ADC, 8 RF-DAC channels and 6 GHz RF bandwidth. Modules can be ordered with the ZU48DR RFSoC to enable 8x soft-decision forward error correction (SD-FEC) units.
Combine the production-ready XRF8 module with the XRF8 Carrier Card and Avalon™ software suite to jump-start proof-of-concept and application development. Then deploy your system with the same XRF8 module used for proof-of-concept. Example code and tutorials demonstrate AMD Xilinx RFSoC multitile sync (multi-converter sync) and multi-board synchronized analog capture.
Highlights
Target Applications:
- Phased Array Radar
- 5G Massive MIMO
- Digital / Hybrid Beamforming
- Signal Detection & Jamming
- Medical Imaging
Key Features:
- 8x ADCs, 14-bit up to 5.0 GSPS
- 8x DACs, 14-bit up to 8.92 GSPS (10 GSPS available)
- 4x AMD GTR transceivers for 1 GbE, PCIe, SATA, USB3
- Ultra-low jitter programmable sampling clocks
- Phase coherent synchronous sampling across all converters & multiple boards
- Quad Mesh™ firmware combines AMD Aurora protocol with 16x GTY transceivers to stream data with four peers, facilitating tiling in high performance real-time systems
- Made in the USA
Kit Includes:
- XRF8 System-on-Module
- XRF Avalon™ Software
Specifications
Technology | AMD Adaptive SoCs |
Dimensions | 101.6mm x 127mm (4.0 in x 5.0 in) |
CPU | Quad Arm Cortex-A53 and Dual Arm Cortex-R5F |
Chipset | AMD Zynq UltraScale+ RFSoC (XCZU47DR) |
RAM | PS-DDR4 4GB PL-DDR4 4GB |
Flash | 128 MB QSPI |
Memory | 32 GB eMMC |
USB | USB 2.0 |
Serial Interfaces | USB (UART/JTAG) |
Bus Interfaces | 16x ultra-fast AMD GTY serial transceivers |
PCI Express | Yes |
Network Interface | 1GbE |
Firmware | XRF Avalon™ |
OS Support | PetaLinux |
Power Requirement | 5.5V to 16V input |
Environment | Industrial |
Cooling | Passive or Active Heatsink required |
Carrier | XRF8 Carrier Card |
