TRIA SPB209A
Wireless ModuleSPB209A is a complete WLAN and Bluetooth Dual-mode module ready for onboard integration in Linux platforms. The ultra-small 14x14x2.5mm low power, high performance module enables a feature rich client solution providing up to 433Mbit/s data rate. SPB209A fully supports concurrent or independent operation of WLAN and Bluetooth. The SPB209A connects to the host through SDIO and high speed UART interfaces. The module comes in versions with or without integrated antenna and LTE filter supporting shortest time to market for multimedia, industrial and smart home products.
The SPB209A is highly integrated and its complete system functionality, means quicker design cycles, lower risk and simplified manufacturing, all in a ultra-small package. The SPB209A delivers a complete and fully tested implementation of 802.11 a/b/g/n/ac and BT4.2 functionality. The SPB209A solution is calibrated and FCC, RED/CE pre-certified resulting in lowest possible customer production and system cost.
- Tria offers 10+ years of wireless module manufacturing and support
- For use in industrial applications on carrier boards or readily integrated on Tria compute modules / SoMs
- Long-term industrial longevity
- Full supply-chain control – no 3rd-party module dependency
- Pre-integrated hardware + software by Tria
- Complete BSP with wireless firmware for Tria SoMs
- Bluetooth SIG listing (BlueZ stack) saves cost and efforts and accelerates time-to-market
- Global radio certifications (NA & EU. Many other countries available upon request)
Highlights
- IEEE 802.11ac compliant
- IEEE 802.11 PHY data rates of up to 433 Mbps
- Driver support for Linux
- Advanced Power management system allowing “Always On”
- Bluetooth 4.2
- Internal co-existence arbitration
- FCC and CE approved reference design
- Interfaces SDIO 3.0, HS UART, PCM
- Industrial temp range -40 to +85C°
- High RF output TX power
- Supports multiple SW features such as 802.11e/i (Security, QoS), Soft AP and Wi-Fi Direct
- Extensive DMA hardware support for data flow to reduce CPU load
- RoHS compliant
Specifications
| Standards Support | IEEE 802.11a/b/g/n/ac, BT4.2 |
| Frequency Band | Dual, 2.4/5 GHz |
| Data rates | 802.11 a/b/g standard rates 802.11n 20/40Mhz channels 802.11ac 20/40/80Mhz channels up to 433Mbps Bluetooth BR, EDR 2Mbps |
| Hardware interfaces | SDIO 3.0, UART, GPIO:s – Host / PCM – BT Audio |
| WLAN functions QoS | Power save modes, automatic roaming, Ad-hoc, Soft AP, Wi-Fi Direct and Infrastructure mode |
| Wireless Security | ✓ WEP-64 ✓ WEP-128 ✓ WPA-PSK ✓ WPA2-PSK |
| NFC | Functions: R/W, Card Emulation and P2P |
| Bluetooth | BT for stereo audio and data BLE for fast configuration and sensor data upload |
| HW dimensions | 14 mm x 14 mm x 2.5 mm |
| Power consumption | 2.5GHz HT20: Wi-Fi IEEE 802.11 b TX 295mA RX:51mA Wi-Fi IEEE 802.11 g/n/ac: TX 285mA / RX 66mA 5GHz HT80: Wi-Fi IEEE 802.11 ac MCS9: TX 330mA / RX 121mA BT BT TX (+4dBm) 22mA / RX 17mA |
| Supply Voltage | 3.0-3.6V |
| Operating Temp | -40 to + 85°C (industrial) |
Order Info
| Part No. | Description | Integrated PCB Antenna | LTE Filter | Chip |

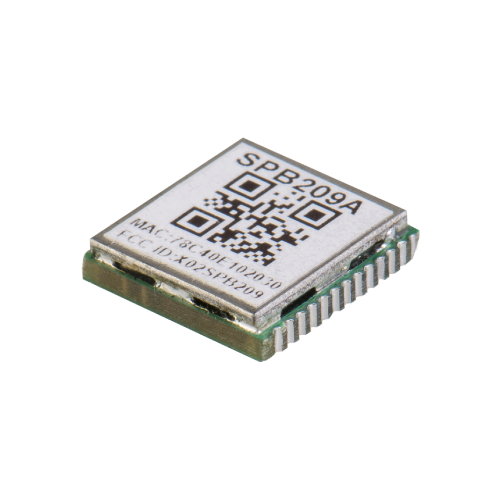

| SPB209A-LRNMQ | WLAN BT MODULE without Antenna without LTE Filter | No | No | 88W8887-A2-CBKE/AZ |
| SPB209A-LRLMQ | WLAN BT MODULE without Antenna with LTE Filter | No | Yes | 88W8887-A2-CBKE/AZ |

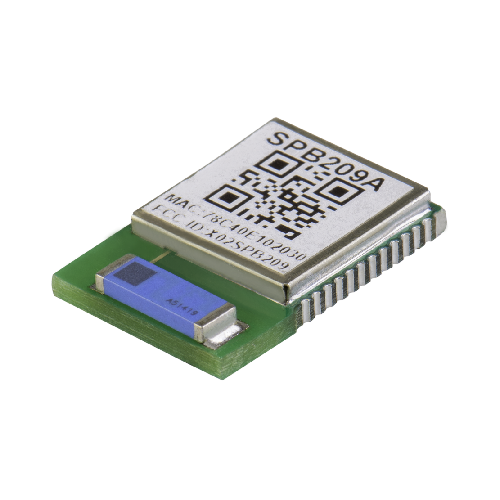

| SPB209A-LBNMZ | WLAN BT MODULE with Antenna without LTE Filter | Yes | No | 88W8887-A2-CBKE/AZ |
| SPB209A-LBLMZ | WLAN BT MODULE with Antenna with LTE Filter | Yes | Yes | 88W8887-A2-CBKE/AZ |
