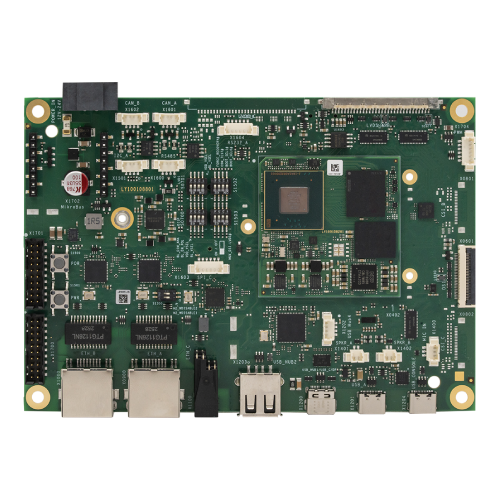

TRIA OSM-SB-EP5
- OSM V1.2 carrier board suitable for OSM Size-S, Size-M, and Size-L modules (including carrier cut-outs for modules with dual-sided assembly)
- LVDS (single/dual channel) on JILI30 connector
- MIPI-DSI on FFC30 connector (optional LVDS)
- 2x MIPI CSI
- 2x CAN
- 24x GPIO, 2x ADC, 5x PWM
- 2x I²C, 2x SPI
- 2x Gigabit Ethernet ports with S/RGMII PHYs
- 1x Single Pair Ethernet (SPE) with SGMII PHY
- 2x I2S Audio Support with two Audio Codecs
- 4x UART (RS232, RS485, M.2 socket, MikroBus socket)
- 1x USB3.0/USB2.0 on Type-C incl. DisplayPort on Type-C
- 1x USB2.0 on Type-A, PicoBlade and M.2 socket
- 1x USB2.0 OTG on Type-C
- Integrated USB to Serial converter (on Type-C)
- JTAG connector (for SW debugging)
- M.2 key E socket
- MikroBus socket (for simple sensor/IO extension)
- NOR Flash with Quad SPI
- µSD Card socket
- RTC Battery Socket / Super Cap Option
- Input voltage 12 VDC to 24 VDC (nominal)
- Form Factor (146 x 102 mm)
The OSM-SB-EP5 is the right platform for evaluation of the OSM-Modules with all available interfaces, but can be used as well as SimpleFlex solution.
SimpleFlex is the intelligent combination of a standard Computer-On-Module with a standard carrier board. It combines the advantages of Standard SBC and Custom SBC by choosing the COM from a huge portfolio of CPU and memory configuration.
This is the basis for innovative solutions in HMI systems, complex display systems, IoT gateways, professional infotainment systems, object recognition systems, transportation applications, medical devices, gaming systems and building automation, among others.
Specifications
| Technology | OSM V1.2 carrier board (Size-S, Size-M, Size-L) |
| Form Factor | 146 x 102 mm |
| Flash | µSD Card Socket NOR FLASH |
| Storage Interfaces | n/a |
| USB |
|
| Serial Interfaces | 4 x UART (RS232, RS485, M.2 socket, MirkoBus socket) |
| Bus Interfaces |
|
| Display Interfaces |
|
| Network Interface | 2x 10/100/1000BASE-T Ethernet with S/RGMII PHY on RJ45 connector, with two integrated status LED‘s 1x Single Pair Ethernet (SPE, 1000BASE-T1) with SGMII PHY |
| Audio Interface | 2x I2S Audio Support with two Audio Codecs (DA7212 & TAS2505) |
| Miscellaneous | Socket for CR2032 type RTC battery (3V) / Super Cap Option JTAG connector for debugging |
| Feature Highlights | Support of listed carrier board features and interfaces depends on used module |
| Power Requirement | Input voltage 12 VDC to 24 VDC (nominal) |
| Environment | Temperature Range: -25°C … +85°C operating -40°C … +85°C storage Humidity: 5 … 90% (operating, non condensing) 5 … 90% (storage, non-condensing) |
| Dimensions | 146 x102 mm |
| Certificates | UL / CE |
Order Info
| Order No. | Description | Reference | Status |
| 119824 | OSM-SB-EP5 SBC with OSM-LF-IMX95 OSM Module (#119466) NXP i.MX 9596 (6x A55 @ 1.8 GHz, ISP, NPU, GPU, VPU, Display, PP-Sample), 8GB LPDDR5, 32GB eMMC, Industrial Temperature (-40..+85°C) Engineering Sample - for evaluation only! Preliminary version. See disclaimer for ES restrictions here: https://www.tria-technologies.com/legal/engineering-sample-disclaimer/ | MSC OSM-SB- EP5-95- HC9-35N0A10 I ES1 PCBES | OR |
| 122684 | OSM-SB-EP5 SBC with OSM-LF-IMX95 OSM Module (#121782) NXP i.MX 9596 (6x A55 @ 1.8 GHz, ISP, NPU, GPU, VPU, Display), 8GB LPDDR5, 64GB eMMC, Industrial Temperature (-40..+85°C) Engineering Sample - for evaluation only! Preliminary version. See disclaimer for ES restrictions here: https:// www.tria-technologies.com/legal/engineering-sample-disclaimer/ | MSC OSM-SB- EP5-95- HC9-36N0A10 I ES2 PCBES | OR |
| 120298 | OSM-SB-EP5 SBC with OSM-MF-IMX8PLUS Module (#114881) NXP i.MX 8M Plus Quad (4x A53 @1.6GHz, NPU, VPU, ISP, HiFi4), 4GB LPDDR4, 16GB eMMC, Industrial Temperature (-40..+85°C) Engineering Sample - for evaluation only! Preliminary version. See disclaimer for ES restrictions here: https://www.tria-technologies.com/legal/engineering-sample-disclaimer/ | MSC OSM-SB- EP5-8P- QC-24N0A00I ES1 PCBES | OR |
| 122150 | OSM-SB-EP5 SBC with OSM-LF-IQ615 OSM Module (#121079) Qualcomm IQ615 (2x Cortex-A76 + 6x Cortex A55), 4GB LPDDR4, 16GB eMMC, TPM 2.0, Extended Temperature (-25..+85°C) Engineering Sample - for evaluation only! Preliminary version. See disclaimer for ES restrictions here: https:// www.tria-technologies.com/legal/engineering-sample-disclaimer/ | MSC OSM-SB- EP5-615-24N0 901E ES2 PCBES | OR |
| 122465 | OSM-SB-EP5 SBC with OSM-LF-IQ615 OSM Module (#121945) Qualcomm IQ615 (2x Cortex-A76 + 6x Cortex A55), 8GB LPDDR4, 64GB eMMC, TPM 2.0, Industrial Temperature (-40..+85°C) Engineering Sample - for evaluation only! Preliminary version. See disclaimer for ES restrictions here: https:// www.tria-technologies.com/legal/engineering-sample-disclaimer/ | MSC OSM-SB- EP5-615-36N0 901I ES2 PCBES | OR |
| 121817 | OSM-SB-EP5 SBC with OSM-SF-IMX93 OSM Module (#111852) NXP i.MX9352 (Dual Core, Ind., 1.7 GHz, w/ NPU), 2GB LPDDR4, 16GB eMMC, Industrial Temperature (-40..+85°C) Engineering Sample - for evaluation only! Preliminary version. See disclaimer for ES restrictions here: https://www.tria- technologies.com/legal/engineering-sample-disclaimer/ | MSC OSM-SB- EP5-93- DC-14N0A00I ES1 PCBES | OR |
Accessories
5.0″ Display kit
| Order No. | Description | Reference |
| 81871 | Displaykit suitable for all COM Carrier Boards and all COM Starterkits. Comprises 5.0" WVGA LCD with PCAP Touch Sensor and Touch Controller Includes all cables required to connect to COM Carrier Boards (LVDS, B/L & Touch) | MSC DIS-AM800480-050-KIT BRDFTX |
7″ Display kit
| Order No. | Description | Reference |
| 78911 | Displaykit suitable for all COM Carrier Boards and all COM Starterkits. Comprises 7.0" WVGA LCD with PCAP Touch Sensor and Touch Controller Includes all cables required to connect to COM Carrier Boards (LVDS, B/L & Touch) | MSC DIS-AM800480-070-KIT BRDFTX |
10.1″ Display kit
| Order No. | Description | Reference |
| 78879 | Displaykit suitable for all COM Carrier Boards and all COM Starterkits. Comprises 10.1" WVGA LCD with PCAP Touch Sensor and Touch Controller. Includes all cables required to connect to COM Carrier Boards (LVDS, B/L & Touch). | MSC DIS-AM1280800-101-KIT BRDFTX |
12.1″ Display kit
| Order No. | Description | Reference |
| 78880 | Displaykit suitable for all COM Carrier Boards and all COM Starterkits. Comprises 12.1" WVGA LCD with PCAP Touch Sensor and Touch Controller Includes all cables required to connect to COM Carrier Boards (LVDS, B/L & Touch) | MSC DIS-AM1280800-121-KIT BRDFTX |
