TRIA SM2S-AL
- ntel Atom x7-E3950 quad-core 1.6/2.0GHz, 12W
- Intel Atom x5-E3940 quad-core 1.6/1.8GHz, 9.5W
- Intel Atom x5-E3930 dual-core 1.3/1.8GHz, 6.5W
- Intel Pentium N4200 quad-core 1.1/2.5GHz, 6W
- Intel Celeron N3350 dual-core 1.1/2.4GHz, 6W
- Integrated Intel Gen. 9 HD Graphics
- Up to 8GB LPDDR4 SDRAM
- Up to 64GB eMMC Flash (optional)
- SATA-III interface (6Gbps)
- Dual DisplayPort++ interface
- LVDS / Embedded DisplayPort and MIPI-DSI
- Triple Independent Display support
- DirectX 12, OpenGL 4.3, OpenCL 2.0
- Dual MIPI CSI-2 Camera Interface
- Up to 4x PCI Express x1 Gen. 2
- 2x USB 3.0 Host interfaces
- 5x USB 2.0 Host interfaces
- 1x USB 2.0 Host/Device interface
- Up to 2x Gigabit Ethernet
- UART, LPC, SPI, I2C, SMBus
- HD/I2S Audio, SD Card interface
- Trusted Platform Module (optional)
- SMARC 2.0 compliant
- UEFI Firmware

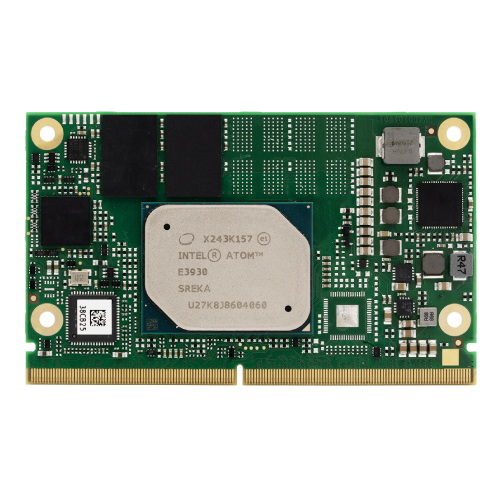

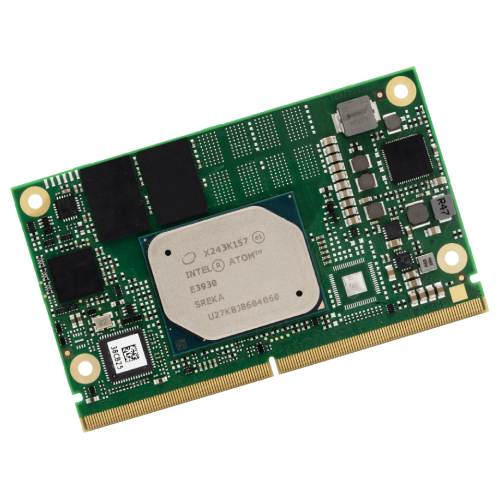

The TRIA SM2S-AL module features Intel’s next-generation low-power System-on-Chip (SOC) for the Internet of Things. The Intel Atom Processor E3900 series integrates processor core, graphics, memory, and I/O interfaces into one solution. Based on 14nm processor technology this multi-core processor provides outstanding computing and graphics performance and is more power efficient compared to its predecessors.
The TRIA SM2S-AL offers triple independent display support, DirectX 12, fast LPDDR4 memory, eMMC and USB 3.0 on a power saving and cost-efficient SMARC 2.0 Short Size module.
Different SOCs with dual- and quad-core processors are supported by this design. In addition to an extensive set of interfaces and features, the TRIA SM2S-AL optionally offers hardware based security compliant to the requirements of TCG (Trusted Computing Group).
For evaluation and design-in of the TRIA SM2S-AL module, Tria provides a suitable SMARC 2.0 development platform. A complete, ready-to-run Starterkit is also available.
Specifications
| Technology | x86 |
| Form Factor | SMARC™ Short Size |
| CPU | Intel Atom x7-E3950 Processor, quad-core, 1.6/2.0GHz, 18 EU GFX, 12W Intel Atom x5-E3940 Processor, quad-core, 1.6/1.8GHz, 12 EU GFX, 9.5W Intel Atom x5-E3930 Processor, dual-core, 1.3/1.8GHz, 12 EU GFX, 6.5W Intel Pentium Processor N4200, quad-core, 1.1/2.5GHz, 18 EU GFX, 6W Intel Celeron Processor N3350, dual-core, 1.1/2.4GHz, 12 EU GFX, 6W Intel® Technologies: Enhanced Intel® SpeedStep® Technology Intel® Virtualization Technology (VT-x) Intel® Virtualization Technology for Directed I/O (VT-d) Intel® Trusted Execution Engine (TXE) 3.0 Precision Time Management |
| Chipset | Integrated in SOC |
| RAM | Up to 8GB 2400MT/s LPDDR4 SDRAM, quad-channel, soldered |
| Flash | Up to 64GB eMMC V5.x Flash, soldered (optional) |
| Storage Interfaces | 1x SATA-III 6Gbps 1x SD 3.01 |
| USB | 5x USB 2.0 Host interfaces 1x USB 2.0 Host/Device interface 2x USB 3.0 Host interfaces (consumes 2x USB 2.0 if used) |
| Serial Interfaces | 4x UART (two with handshake) |
| Bus Interfaces | Up to 4x PCI-Express x1 Gen. 2 lanes 1x I2C Bus 2x SPI Bus (Boot/SIO) 1x SMBus |
| Display Controller | Integrated Intel HD Graphics Gen. 9 Up to 18 execution units (EU) 3D Acceleration: DirectX 12.0, OpenGL 4.3, OpenCL 2.0 Full Profile Video Decode: MPEG2, H.264 (L5.2), VC-1, WMV9, VP8, JPEG/MJPEG, H.265 (HEVC), VP9, MVC |
| Display Interfaces | Three independent displays supported 2x DisplayPort++ (DisplayPort 1.2a up to 4096 x 2160 @ 60Hz, HDMI 1.4b up to 3840 x 2160 @ 30Hz) Dual-Channel LVDS 24/18 bit up to 1920 x 1200 @ 60Hz or Embedded DisplayPort 1.3 up to 4096 x 2160 @ 60Hz and MIPI-DSI x4 Interface up to 2560 x 1600 @ 60Hz (optional) |
| Network Interface | Up to 2x 10/100/1000Base-T (Intel i210) |
| Audio Interface | High Definition Audio I2S Audio |
| Security Device | Infineon Trusted Platform Module 2.0 (optional) |
| Miscellaneous | Watchdog Timer: Initiates system reset, (programmable, 1s … 255h) Fan Supply: PWM Speed Control for system fan on carrier board RTC battery: external System Monitoring: Voltage, Temperature, CPU Fan, System Fan Camera Interface: 2x MIPI CSI-2 camera interface (4-lane / 2 lane) |
| Feature Highlights | SMARC™ 2.0 compliant |
| Firmware | AMI Aptio UEFI |
| OS Support | Windows 10 (embedded) BSP for Linux on request EAPI (HW Programming Interface) |
| Power Requirement | +5V +/-5% +5V Standby |
| Environment | Temperature Range: 0° … 60°C (operating) -25° … 85°C (storage) -40° … 85°C (operating industrial) Humidity: 5 … 95% (operating, non-condensing) 5 … 95% (storage, non-condensing) |
| Dimensions | 82 x 50 mm |
| Certificates | UL / CE |
| Cooling | Heatspreader Heatsink |
| Carrier | TRIA SM2-MB-EP1 |
Order Info
| Order No. | Description | Reference | Status |
70609 | SMARC 2.0 short size module with Intel Atom E3950 processor (1.6/2.0GHz), Quad-Core, 12W, 8GB 2400MT/s LPDDR4, 32GB eMMC, GbE LAN, 2x USB 3.0 Host, 5x USB 2.0 Host, 1x USB 2.0 Host/Device, TPM, DP, LVDS Graphics, industrial temperature -40...+85°C (recommended for 24/7 use cases) | MSC SM2S-AL-E3950- 35N0201I PCBFTX | PV |
78145 | SMARC 2.0 short size module with Intel Atom E3950 processor (1.6/2.0GHz), Quad-Core, 12W, 8GB 2400MT/s LPDDR4, no eMMC, GbE LAN, 2x USB 3.0 Host, 5x USB 2.0 Host, 1x USB 2.0 Host/Device, TPM, DP, LVDS Graphics, industrial temperature -40...+85°C (recommended for 24/7 use cases) | MSC SM2S-AL-E3950- 3NN0201I PCBFTX | PV |
70605 | SMARC 2.0 short size module with Intel Atom E3940 processor (1.6/1.8GHz), Quad-Core, 9.5W, 4GB 2133MT/s LPDDR4, 16GB eMMC, GbE LAN, 2x USB 3.0 Host, 5x USB 2.0 Host, 1x USB 2.0 Host/Device, TPM, DP, LVDS Graphics, industrial temperature -40...+85°C (recommended for 24/7 use cases) | MSC SM2S-AL-E3940- 24N0201I PCBFTX | PV |
78147 | SMARC 2.0 short size module with Intel Atom E3940 processor (1.6/1.8GHz), Quad-Core, 9.5W, 4GB 2133MT/s LPDDR4, no eMMC, GbE LAN, 2x USB 3.0 Host, 5x USB 2.0 Host, 1x USB 2.0 Host/Device, TPM, DP, LVDS Graphics, industrial temperature -40...+85°C (recommended for 24/7 use cases) | MSC SM2S-AL-E3940- 2NN0201I PCBFTX | PV |
70601 | SMARC 2.0 short size module with Intel Atom E3930 processor (1.3/1.8GHz), Dual-Core, 6.5W, 2GB 2133MT/s LPDDR4, 16GB eMMC, GbE LAN, 2x USB 3.0 Host, 5x USB 2.0 Host, 1x USB 2.0 Host/Device, TPM, DP, LVDS Graphics, industrial temperature -40...+85°C (recommended for 24/7 use cases) | MSC SM2S-AL-E3930- 14N0201I PCBFTX | PV |
78151 | SMARC 2.0 short size module with Intel Atom E3930 processor (1.3/1.8GHz), Dual-Core, 6.5W, 2GB 2133MT/s LPDDR4, no eMMC, GbE LAN, 2x USB 3.0 Host, 5x USB 2.0 Host, 1x USB 2.0 Host/Device, TPM, DP, LVDS Graphics, industrial temperature -40...+85°C (recommended for 24/7 use cases) | MSC SM2S-AL-E3930- 1NN0201I PCBFTX | PV |
78149 | SMARC 2.0 short size module with Intel Atom E3930 processor (1.3/1.8GHz), Dual-Core, 6.5W, 2GB 2133MT/s LPDDR4, no eMMC, Dual GbE LAN, 2x USB 3.0 Host, 5x USB 2.0 Host, 1x USB 2.0 Host/Device, TPM, DP, LVDS Graphics, industrial temperature -40...+85°C (recommended for 24/7 use cases) | MSC SM2S-AL-E3930- 1NN0281I PCBFTX | PV |
78153 | SMARC 2.0 short size module with Intel Atom E3930 processor (1.3/1.8GHz), Dual-Core, 6.5W, 2GB 2133MT/s LPDDR4, 8GB eMMC, GbE LAN, 2x USB 3.0 Host, 5x USB 2.0 Host, 1x USB 2.0 Host/Device, DP, eDP, industrial temperature -40...+85°C (recommended for 24/7 use cases limited to -25°C if eMMC is used) | MSC SM2S-AL-E3930- 13N0100I PCBFTX | PV |
81505 | SMARC 2.0 short size module with Intel Atom E3950 processor (1.6/2.0GHz), Quad-Core, 12W, 8GB 2400MT/s LPDDR4, 32GB eMMC, Dual GbE LAN, 2x USB 3.0 Host, 5x USB 2.0 Host, 1x USB 2.0 Host/Device, TPM, DP, eDP, industrial temperature -40...+85°C (recommended for 24/7 use cases) | MSC SM2S-AL-E3950- 35N0181I PCBFTX | PV |
82559 | SMARC 2.0 short size module with Intel Atom E3950 processor (1.6/2.0GHz), Quad-Core, 12W, 8GB 2400MT/s LPDDR4, 32GB eMMC, Dual GbE LAN, 2x USB 3.0 Host, 5x USB 2.0 Host, 1x USB 2.0 Host/Device, TPM, DP, LVDS Graphics, industrial temperature -40...+85°C (recommended for 24/7 use cases) | MSC SM2S-AL-E3950- 35N0281I PCBFTX | PV |
83194 | SMARC 2.0 short size module with Intel Atom E3930 processor (1.3/1.8GHz), Dual-Core, 6.5W, 4GB 2133MT/s LPDDR4, no eMMC, GbE LAN, 2x USB 3.0 Host, 5x USB 2.0 Host, 1x USB 2.0 Host/Device, TPM, DP, LVDS Graphics, industrial temperature -40...+85°C (recommended for 24/7 use cases) | MSC SM2S-AL-E3930- 2NN0201I PCBFTX | PV |
83196 | SMARC 2.0 short size module with Intel Atom E3930 processor (1.3/1.8GHz), Dual-Core, 6.5W, 8GB 2133MT/s LPDDR4, no eMMC, GbE LAN, 2x USB 3.0 Host, 5x USB 2.0 Host, 1x USB 2.0 Host/Device, TPM, DP, LVDS Graphics, industrial temperature -40...+85°C (recommended for 24/7 use cases) | MSC SM2S-AL-E3930- 3NN0201I PCBFTX | PV |
70607 | SMARC 2.0 short size module with Intel Atom E3950 processor (1.6/2.0GHz), Quad-Core, 12W, 8GB 2400MT/s LPDDR4, 32GB eMMC, GbE LAN, 2x USB 3.0 Host, 5x USB 2.0 Host, 1x USB 2.0 Host/Device, TPM, DP, LVDS Graphics | MSC SM2S-AL-E3950- 35N0201C PCBFTX | OR |
70603 | SMARC 2.0 short size module with Intel Atom E3940 processor (1.6/1.8GHz), Quad-Core, 9.5W, 4GB 2133MT/s LPDDR4, 16GB eMMC, GbE LAN, 2x USB 3.0 Host, 5x USB 2.0 Host, 1x USB 2.0 Host/Device, TPM, DP, LVDS Graphics | MSC SM2S-AL-E3940- 24N0201C PCBFTX | OR |
70599 | SMARC 2.0 short size module with Intel Atom E3930 processor (1.3/1.8GHz), Dual-Core, 6.5W, 2GB 2133MT/s LPDDR4, 16GB eMMC, GbE LAN, 2x USB 3.0 Host, 5x USB 2.0 Host, 1x USB 2.0 Host/Device, TPM, DP, LVDS Graphics | MSC SM2S-AL-E3930- 14N0201C PCBFTX | OR |
70613 | SMARC 2.0 short size module with Intel Pentium N4200 processor (1.5/2.5GHz), Quad-Core, 6W, 8GB 2400MT/s LPDDR4, 32GB eMMC, GbE LAN, 2x USB 3.0 Host, 5x USB 2.0 Host, 1x USB 2.0 Host/Device, TPM, DP, LVDS Graphics | MSC SM2S-AL-N4200- 35N0201C PCBFTX | OR |
70611 | SMARC 2.0 short size module with Intel Celeron N3350 processor (1.1/2.3GHz), Dual-Core, 6W, 4GB 2400MT/s LPDDR4, 16GB eMMC, GbE LAN, 2x USB 3.0 Host, 5x USB 2.0 Host, 1x USB 2.0 Host/Device, TPM, DP, LVDS Graphics | MSC SM2S-AL-N3350- 24N0201C PCBFTX | OR |
Accessories
Carrier Options
| Order No. | Description | Reference |
| 68488 | SMARC 2.0 Embedded Platform with PCI Express x4 slot, GbE, SATA, USB 3.0, USB 2.0, USB 2.0 OTG, RS232, CAN, SPI, eSPI, SMBus, I2C and GPIO interface, LVDS/eDP, DisplayPort and HDMI display interface, regulated backlight supply, HD/I2S audio interface, MIPI CSI-2 camera interface, mini PCI Express card slot, SD card slot, fan connector, CMOS battery, Mini-ITX form factor (170 x 170 mm), ATX power connector and single 12V/24V power jack, commercial temperature range 0..+70°C | MSC SM2-MB-EP1-001 PCBFTX |
Cooling Options
| Order No. | Description | Reference |
| 1137475 | Passive Heatsink for SM2S-AL variants with Atom processor, consisting of a single-piece aluminium pin cooler and thermal pad for contact to the processor, with 2.7mm through-hole standoffs | MSC SM2S-AL-01 HSI-001 |
| 1137476 | Heatspreader for SM2S-AL variants with Atom processor, consisting of a single-piece aluminium plane and thermal pad for contact to the processor, with 2.7mm through-hole standoffs | MSC SM2S-AL-01 HSP-001 |
| 1137477 | Passive Heatsink for SM2S-AL variants with Pentium/Celeron processor, consisting of a single-piece aluminium pin cooler and thermal pad for contact to the processor, with 2.7mm through-hole standoffs | MSC SM2S-AL-02 HSI-001 |
| 1137478 | Heatspreader for SM2S-AL variants with Pentium/Celeron processor, consisting of a single-piece aluminium plane and thermal pad for contact to the processor, with 2.7mm through-hole standoffs | MSC SM2S-AL-02 HSP-001 |
Starter Kits
| Order No. | Description | Reference |
| 70253 | Starter Kit for SMARC Short Size modules with Intel Atom E39xx (Apollo Lake) processor. Includes MSC SM2-MB-EP1 Baseboard, Heatsinks and Power Supply. The StarterKit does not include the SMARC module. Please order your choice of MSC SM2S-AL module separately. | MSC SM2S-SK-AL-EP1-KIT001 BRDFTX |
Support
As registered customer you can directly create a ticket in our Support Center (Ticket) and visit our Technical Documentation Center (TechDoC)
Manual
TRIA SM2S-AL HW User Manual
TRIA SM2S-AL BIOS User Manual
Application Notes
TRIA SM2S-AL Application Notes
Compliance documents
REACH-ROHS_TRIA_SMARC_2024-12-16
CHINA-ROHS_TRIA_SMARC_2024-12-16
Mechanical data
App_Note_052_Mechanical_documentation_guide1v0
MSC_SM2S-AL-997_3D
MSC_SM2S-AL-02_HSP-001_3D
MSC_SM2S-AL-02_HSI-001_3D
MSC_SM2S-AL-01_HSP-001_3D
MSC_SM2S-AL-01_HSI-001_3D
BIOS
BIOS_Update_SM2-AL_BIOS_V342_01
BIOS_Update_SM2-AL_BIOS_V341_01
MSC_BIOS-Configurator-Tool
Drivers
Smarc-Baseboard-Audio_LogoedDriverPackage-01-15-2018-6.6001.4.02
serialio_30-100-1750-1_apl_pv_rs3
setupchipset
apl-i txe 3.1.50.2222
PROWinx64
MSCHSUart_V113_02
igfx_win_101.1191
Demo images
msc-image-base-intel-corei7-64_Scarthgap_14042026
msc-image-lxqt-intel-corei7-64_Scarthgap_14042026
EAPI NG for modules with AMI BIOS
MSC_EAPI_V603_01
PCN – EOL – Product Information
Please log in to access this information.
