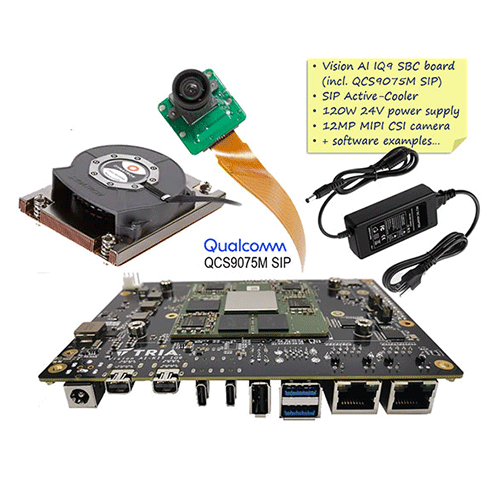

Vision AI-KIT IQ9

Qualcomm Dragonwing™ IQ-9075 Development Kit

Vision AI-KIT IQ9 features an industrial 3.5-inch SBC board fitted with Qualcomm Dragonwing™ IQ-9075 SIP module, that delivers power-efficient on-device Edge AI and compute, for high-performance, heavy workload industrial applications in extreme environments.

The Dragonwing IQ-9075 microprocessor domain (MD) has octa high-performance Kryo Gen6 cores, 100 TOPS of AI-acceleration, plus exceptional multimedia capabilities (up to 16 cameras, multiple displays, 4K170/4K275 enc/dec.). This SOC also features a real time subsystem (RTSS) with quad real-time cores @ 1.85 GHz and peripherals, for low-latency control applications.

Dragonwing™ IQ-9075 SIP resources include 36 GB LPDDR5 (3200MHz, 96bit wide DRAM with inline ECC) plus four PMM8650AU PMICs for efficient power management.

Vision AI-KIT IQ9 packs a wide range of connectivity interfaces, into a standard industrial 3.5-inch SBC form-factor, including 2x local MIPI CSI 4-lane camera inputs, 2x miniDP (4K) and 1x MIPI DSI display outputs, 6x USB ports (plus quad USB debug-bridge), 2x 2.5 GbE LAN interfaces, CAN, UART and GPIO interfaces. Add-on Wi-Fi/BT, cellular modem and NVME SSD storage options are supported via (key-E, key-B, key-M) M.2 slots. A mezzanine camera-adapter 120-pin connector enables the use of adapter boards for support of multiple concurrent remote cameras. Audio support includes stereo amplified outputs plus onboard PDM microphone.

Fitted with 2x 128 GB UFS 3.1 flash devices, this kit ships with a Yocto-based Linux BSP, plus example AI and multi-camera, multi-display, open-source applications.
