TRIA SM2S-QCS5430
- Dual core Arm Cortex-A78 up to 2.1GHz
- And Quad core Arm Cortex-A55 @ 1,8GHz
- Adreno 642L GPU @ 315MHz
- AI DSP/NSP Dual HVX, 4K HMX up to 3.5 TOPs
- Up to 16GB LPDDR5 SDRAM 6400MT/s
- Up to 1TB UFS Flash
- Display up to FHD+120Hz
- Video up to 4k30(E)/4K30(D)
- 5xUSB 2.0, 2x USB 3.1
- 2x PCIe Gen3 x1, 1x PCIe Gen3 x2
- 1x MIPI-DSI or LVDS
- 1x DP 1.4 (2 lane) + 1x eDP/DP
- 4x MIPI-CSI Camera Interface
- WLAN/BT Wireless Module (option)
- 2x Gigabit Ethernet
- 2x I2S Audio Interface
- 4x UART, 2x SPI, 2x CAN2.0-FD, 5x I²C
- HW Key manager and ECC, Secure boot, Crypto engines, etc.
- Windows 11 IOT, Yocto Linux and Android (Ubuntu Linux on request)

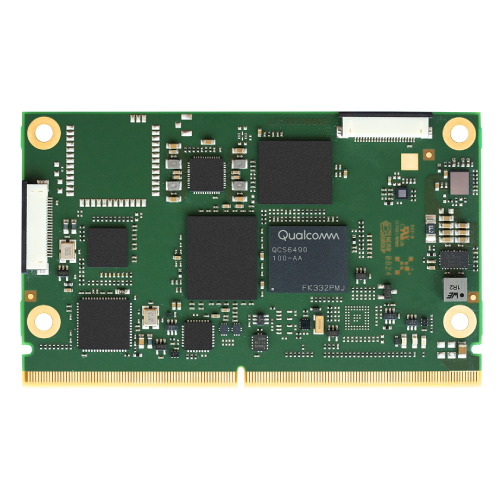

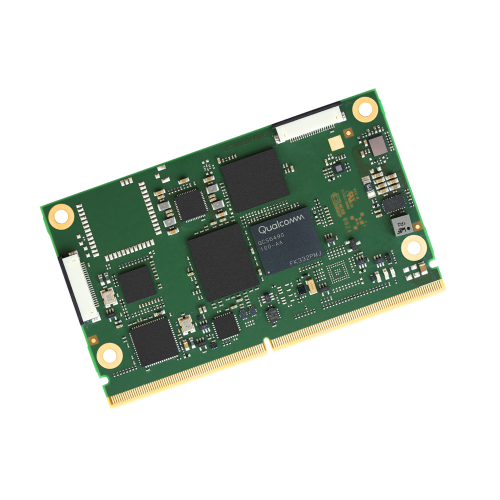

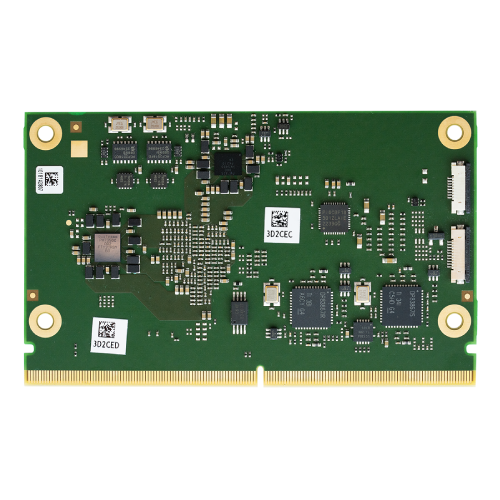

The TRIA SM2S-QCS5430 SMARC 2.1.1 module family is powered by the Qualcomm® QCS5430 processor, a 6nm processor with high performance and best in class power to performance ratio. QCS5430 integrates Qualcomm® Kryo™ 670 CPU which contains up to six cores: two Arm® Cortex®-A78 cores, four Arm® Cortex®-A55 cores, Qualcomm® Adreno™ 642L GPU, Qualcomm® Adreno™ 633 VPU and the latest re-engineered Qualcomm® Hexagon™ processor. The GPU supports video encode/ decode at up to 4K30/4K30 and many different display connictities (LVDS, MIPI-DSI, eDP/DP). It delivers powerful edge AI for high-performance with upto 3.5 TOPS at low power and massive camera support with 4 MIPI-CSI inputs.
This solution delivers powerful performance and is purpose-built for industrial and commercial IoT applications such as ruggedized handhelds and tablets, kiosks, industrial scanners, dash cameras, point-of-sale systems and human machine interface systems.
The module is compliant with the latest SMARC 2.1.1 standard, allowing easy integration with SMARC baseboards. For evaluation and design-in of the SM2S-QCS5430 module, Tria provides a development platform and a starter kit. Support for Linux is available (Android support available on request).
Specifications
| Technology | Arm |
| Form Factor | SMARCTM 2.2 Short Size |
| CPU | QCS5430: 2x A78@2.1GHz, 4xA55@1.8GHz 2xHVX,4K-HMX 1.45GHz (3.5 INT8 TOPS) |
| Chipset | SOC |
| RAM | Up to 16GB LPDDR5 SDRAM, up to 6400MT/s, soldered |
| Flash | Up to 1TB UFS, soldered (optional) |
| Storage Interfaces | UFS (onboard) NVME (carrier) SD-Card (carrier) |
| USB | 2x USB 3.1 Host interfaces 5x USB 2.0 Host interfaces |
| Serial Interfaces | 4x UART (two with handshake) |
| Bus Interfaces | Up to 4x PCI-Express x1 Gen. 3 lanes 5x I2C (1x general, 2x CAM, 1x LCD, 1x PM) 2x SPI Bus 1x SDIO 2x CAN2.0-FD |
| Display Controller | Adreno 642L GPU @ up to 315MHz |
| Display Interfaces | MIPI-DSI 4 - lane FHD+ @120Hz LVDS (optional instead of MIPI-DSI) 1920x1200 WUXGA 60Hz DP 1.4 (2 lane) 4K30 (4K60 compression to 16bpp) eDP/DP (4 lane) 1920x1080p60 |
| Network Interface | 2x 10/100/1000Base-T |
| Audio Interface | 2x I2S Audio |
| Security Device | Infineon Trusted Platform Module 2.0 HW Key manager and ECC, Secure boot, Crypto engines, Key provisioning security, Qualcomm® Trusted Execution Environment (TEE), Qualcomm Content Protection (Widevine), Secure camera/UI |
| Miscellaneous | MIPI CSI-2 camera interface on SMARC interface: 1x 2 lane, 1x 4 lane MIPI CSI-2 camera interface on CSI Connector: 2x 4 lane Watchdog Timer: Initiates system reset, (programmable, 1s ... 255h) Fan Supply: PWM Speed Control for system fan on carrier board RTC battery: external System Monitoring: Voltage, Temperature, CPU Fan, System Fan EEPROM: 64kbit ID EEPROM on I2C bus GPIO: 14x GPIO, configurable as input or output, 13x interrupt capable |
| Feature Highlights | SMARCTM 2.2 compliant |
| Firmware | UEFI boot |
| OS Support | Windows 11 IoT Yocto Linux Android Ubuntu Linux (on request) |
| Power Requirement | Power Supply +5V +/-5%, Power Consumption 5W typ. (tbd: depending on CPU, CPU load and onboard features) |
| Environment | Temperature Range: Commercial: 0° ... 70°C (operating) -20° ... 85°C (storage) Extended: -30° ... 85°C (operating) -40° ... 85°C (storage) Humidity: 5 ... 95% (operating, non-condensing) 5 ... 95% (storage, non-condensing) |
| Dimensions | 82 x 50 mm |
| Certificates | UL / CE |
| Cooling | Heatspreader |
| Carrier | TRIA SM2-MB-EP1 TRIA SM2-MB-EP5-012 |
Order Info
| Order No. | Description | Reference | Status |
| 117779 | SMARC 2.2 module with Qualcomm QCS6490 4x A78 @2.4/2.7GHz + 4x A55 @1,9GHz, 5W CPU TDP, Graphics: Adreno A643@812MHz, NPU: 12 TOPs, 8GB LPDDR5 SDRAM 6400MT/s, DP 1.4 (2 lane), eDP/DP and MIPI DSI interfaces, 2x MIPI CSI on SMARC and 2x onboard, Ethernet: 2x 1Gbit, 64GB UFS memory, PCIe: 2x PCIe Gen3 x1 + 1x PCIe Gen3 x2, USB: 5x USB 2.0 + 2x USB 3.1, WLAN/ BT, TPM 2.0, 2x CAN FD, Extended Temperature -25°... +85°C | MSC SM2S-QCS6490- FPF-36N08F1E PCBFTX | PV |
| 117749 | SMARC 2.2 module with Qualcomm QCS5430 2x A78 @2.1GHz + 4x A55 @1,8GHz, 3W CPU TDP, Graphics: Adreno A642L@315Mhz, NPU: 3.5 TOPs, 4GB LPDDR5 SDRAM 6400MT/s, DP 1.4 (2 lane), eDP/DP and LVDS interfaces, 2x MIPI CSI on SMARC and 2x onboard, Ethernet: 2x 1Gbit, 32GB UFS memory, PCIe: 2x PCIe Gen3 x1 + 1x PCIe Gen3 x2, USB: 5x USB 2.0 + 2x USB 3.1, WLAN/ BT, TPM 2.0, 2x CAN FD, Extended Temperature -25°... +85°C | MSC SM2S-QCS5430- FP1-25N02F1E PCBFTX | PV |
| 117777 | SMARC 2.2 module with Qualcomm QCS6490 4x A78 @2.4/2.7GHz + 4x A55 @1,9GHz, 5W CPU TDP, Graphics: Adreno A643@812MHz, NPU: 12 TOPs, 8GB LPDDR5 SDRAM 6400MT/s, DP 1.4 (2 lane), eDP/DP and LVDS interfaces, 2x MIPI CSI on SMARC and 2x onboard, Ethernet: 2x 1Gbit, 64GB UFS memory, PCIe: 2x PCIe Gen3 x1 + 1x PCIe Gen3 x2, USB: 5x USB 2.0 + 2x USB 3.1, WLAN/ BT, TPM 2.0, 2x CAN FD, Extended Temperature -25°... +85°C | MSC SM2S-QCS6490- FPF-36N02F1E PCBFTX | PV |
| 117775 | SMARC 2.2 module with Qualcomm QCS6490 4x A78 @2.4/2.7GHz + 4x A55 @1,9GHz, 5W CPU TDP, Graphics: Adreno A643@812MHz, NPU: 12 TOPs, 4GB LPDDR5 SDRAM 6400MT/s, DP 1.4 (2 lane), eDP/DP and LVDS interfaces, 2x MIPI CSI on SMARC and 2x onboard, Ethernet: 2x 1Gbit, 64GB UFS memory, PCIe: 2x PCIe Gen3 x1 + 1x PCIe Gen3 x2, USB: 5x USB 2.0 + 2x USB 3.1, no WLAN/BT, TPM 2.0, 2x CAN FD, Extended Temperature -25°... +85°C | MSC SM2S-QCS6490- FPF-26N0271E PCBFTX | PV |
| 117751 | SMARC 2.2 module with Qualcomm QCS5430 2x A78 @2.1GHz + 4x A55 @1,8GHz, 3W CPU TDP, Graphics: Adreno A642L@315Mhz, NPU: 3.5 TOPs, 4GB LPDDR5 SDRAM 6400MT/s, DP 1.4 (2 lane), eDP/DP and LVDS interfaces, 2x MIPI CSI on SMARC and 2x onboard, Ethernet: 2x 1Gbit, 32GB UFS memory, PCIe: 2x PCIe Gen3 x1 + 1x PCIe Gen3 x2, USB: 5x USB 2.0 + 2x USB 3.1, no WLAN/BT, TPM 2.0, 2x CAN FD, Extended Temperature -25°... +85°C | MSC SM2S-QCS5430- FP1-25N0271E PCBFTX | PV |
| 117783 | SMARC 2.2 module with Qualcomm QCS6490 4x A78 @2.4/2.7GHz + 4x A55 @1,9GHz, 5W CPU TDP, Graphics: Adreno A643@812MHz, NPU: 12 TOPs, 16GB LPDDR5 SDRAM 6400MT/s, DP 1.4 (2 lane), eDP/DP and MIPI DSI interfaces, 2x MIPI CSI on SMARC and 2x onboard, Ethernet: 2x 1Gbit, 128GB UFS memory, PCIe: 2x PCIe Gen3 x1 + 1x PCIe Gen3 x2, USB: 5x USB 2.0 + 2x USB 3.1, no WLAN/BT, TPM 2.0, 2x CAN FD, Extended Temperature -25°... +85°C | MSC SM2S-QCS6490- FPF-47N0871E PCBFTX | PV |
| 117747 | SMARC 2.2 module with Qualcomm QCS5430 2x A78 @2.1GHz + 4x A55 @1,8GHz, 3W CPU TDP, Graphics: Adreno A642L@315Mhz, NPU: 3.5 TOPs, 2GB LPDDR5 SDRAM 6400MT/s, DP 1.4 (2 lane), eDP/DP and MIPI DSI interfaces, 2x MIPI CSI on SMARC and 0x onboard, Ethernet: 0x 1Gbit, 32GB UFS memory, PCIe: 1x PCIe Gen3 x1 + 0x PCIe Gen3 x2, USB: 2x USB 2.0 + 0x USB 3.1, no WLAN/BT, TPM 2.0, 0x CAN FD, Extended Temperature -25°... +85°C | MSC SM2S-QCS5430- FP1-15N0821E PCBFTX | OR |
| 122445 | SMARC 2.2 module with Qualcomm QCS6490 4x A78 @2.4/2.7GHz + 4x A55 @1,9GHz, 5W CPU TDP, Graphics: Adreno A643@812MHz, NPU: 12 TOPs, 4GB LPDDR5 SDRAM 6400MT/s, DP 1.4 (2 lane), eDP/DP and MIPI DSI interfaces, 2x MIPI CSI on SMARC and 0x onboard, Ethernet: 0x 1Gbit, 32GB UFS memory, PCIe: 1x PCIe Gen3 x1 + 0x PCIe Gen3 x2, USB: 2x USB 2.0 + 0x USB 3.1, no WLAN/BT, TPM 2.0, 0x CAN FD, Extended Temperature -25°... +85°C | MSC SM2S-QCS6490- FPF-25N0821E PCBFTX | OR |
| 117781 | SMARC 2.2 module with Qualcomm QCS6490 4x A78 @2.4/2.7GHz + 4x A55 @1,9GHz, 5W CPU TDP, Graphics: Adreno A643@812MHz, NPU: 12 TOPs, 8GB LPDDR5 SDRAM 6400MT/s, DP 1.4 (2 lane), eDP/DP and MIPI DSI interfaces, 2x MIPI CSI on SMARC and 2x onboard, Ethernet: 2x 1Gbit, 64GB UFS memory, PCIe: 2x PCIe Gen3 x1 + 1x PCIe Gen3 x2, USB: 5x USB 2.0 + 2x USB 3.1, no WLAN/BT, TPM 2.0, 2x CAN FD, Extended Temperature -25°... +85°C | MSC SM2S-QCS6490- FPF-36N0871E PCBFTX | PV |
| 119090 | SMARC 2.2 module with Qualcomm QCS5430 2x A78 @2.1GHz + 4x A55 @1,8GHz, 3W CPU TDP, Graphics: Adreno A642L@315Mhz, NPU: 3.5 TOPs, 8GB LPDDR5 SDRAM 6400MT/s, DP 1.4 (2 lane), eDP/DP and LVDS interfaces, 2x MIPI CSI on SMARC and 2x onboard, Ethernet: 2x 1Gbit, 64GB UFS memory, PCIe: 2x PCIe Gen3 x1 + 1x PCIe Gen3 x2, USB: 5x USB 2.0 + 2x USB 3.1, no WLAN/BT, TPM 2.0, 2x CAN FD, Extended Temperature -25°... +85°C | MSC SM2S-QCS5430- FP1-36N0271E PCBFTX | PV |
Accessories
Carrier Options
| Order No. | Description | Reference |
| 68488 | SMARC 2.0 Embedded Platform with PCI Express x4 slot, GbE, SATA, USB 3.0, USB 2.0, USB | MSC SM2-MB-EP1-001 |
| 2.0 OTG, RS232, CAN, SPI, eSPI, SMBus, I2C and GPIO interface, LVDS/eDP, DisplayPort | PCBFTX | |
| and HDMI display interface, regulated backlight supply, HD/I2S audio interface, MIPI CSI-2 | ||
| camera interface, mini PCI Express card slot, SD card slot, fan connector, CMOS battery, | ||
| Mini-ITX form factor (170 x 170 mm), ATX power connector and single 12V/24V power jack, | ||
| commercial temperature range 0..+70°C | ||
| 115138 | SMARC 2.1 compatible embedded platform (146 x 80mm), 10-36V input voltage, 3x RS232, | MSC SM2S-MB-EP5-012 |
| 2x CAN, dual RJ45 LAN with LED (from module), 1x M.2 2280 Key M slot, mPCIe slot, 1x | PCBFTX | |
| USB 3.0 Type A, 1x USB 3.0/DisplayPort Type C , 1x USB 2.0 Type A, 1x USB 2.0 internal, 1x | ||
| μUSB 2.0 Host/Device, 2x SPI, I2C, 12 GPIO on FC, 1x DisplayPort++ , LVDS/eDP/DSI on | ||
| JILI30 connector, μSD Card Slot, regulated backlight supply, I2S Audio with amplifier, | ||
| system fan connector, camera connector, RTC battery. Industrial temperature range | ||
| -40..+85°C |
Cooling Options
| Order No. | Description | Reference |
| Order No. | Description | Nomenclature |
| 116667 | Passive Heatsink for all SM2S-QCS6490 and SM2S-QCS5430 modules, consisting of a | MSC SM2S-QCS-01 |
| single-piece aluminum pin cooler and thermal pad for contact to the processor, with | HSI-001 | |
| 2.7mm through-hole standoffs | ||
| 116668 | Heatspreader for all SM2S-QCS6490 and SM2S-QCS5430 modules, consisting of a single- | MSC SM2S-QCS-01 |
| piece aluminum plane and thermal pad for contact to the processor, with 2.7mm through- | HSP-001 | |
| hole standoffs |
Starter Kits
| Order No. | Description | Reference |
| Order | Description | Reference |
| No. | ||
| 114394 | Starter Kit for SMARC Short Size modules for Qualcomm QCS6490 / QCS5430 processor. | MSC SM2-SK- |
| Includes TRIA SM2-MB-EP1 Mini-ITX Baseboard, Heatsink and Power Supply with cable kit. The | QCS6490-EP1-KIT001 | |
| StarterKit does not include the SMARC module. Please order your choice of TRIA SM2S- | BRDFTX | |
| QCS6490 or SM2S-QCS5430 module separately. | ||
| 117702 | QCS6490 Vision-AI Development Kit for Qualcomm QCS6490 / QCS5430 processor. Includes | MSC SM2-SK- |
| TRIA SM2S-QCS6490 module, Heatsink, TRIA SM2-MB-EP6 Mini Baseboard, Camera, Power | QCS6490-EP6-KIT001 | |
| Supply and USB-C cable. Example Software for Yocto Linux and Linux BSP will be provided by | BRDFTX | |
| TRIA. |
